Cub Cadet FT 24 Parts Manual

34

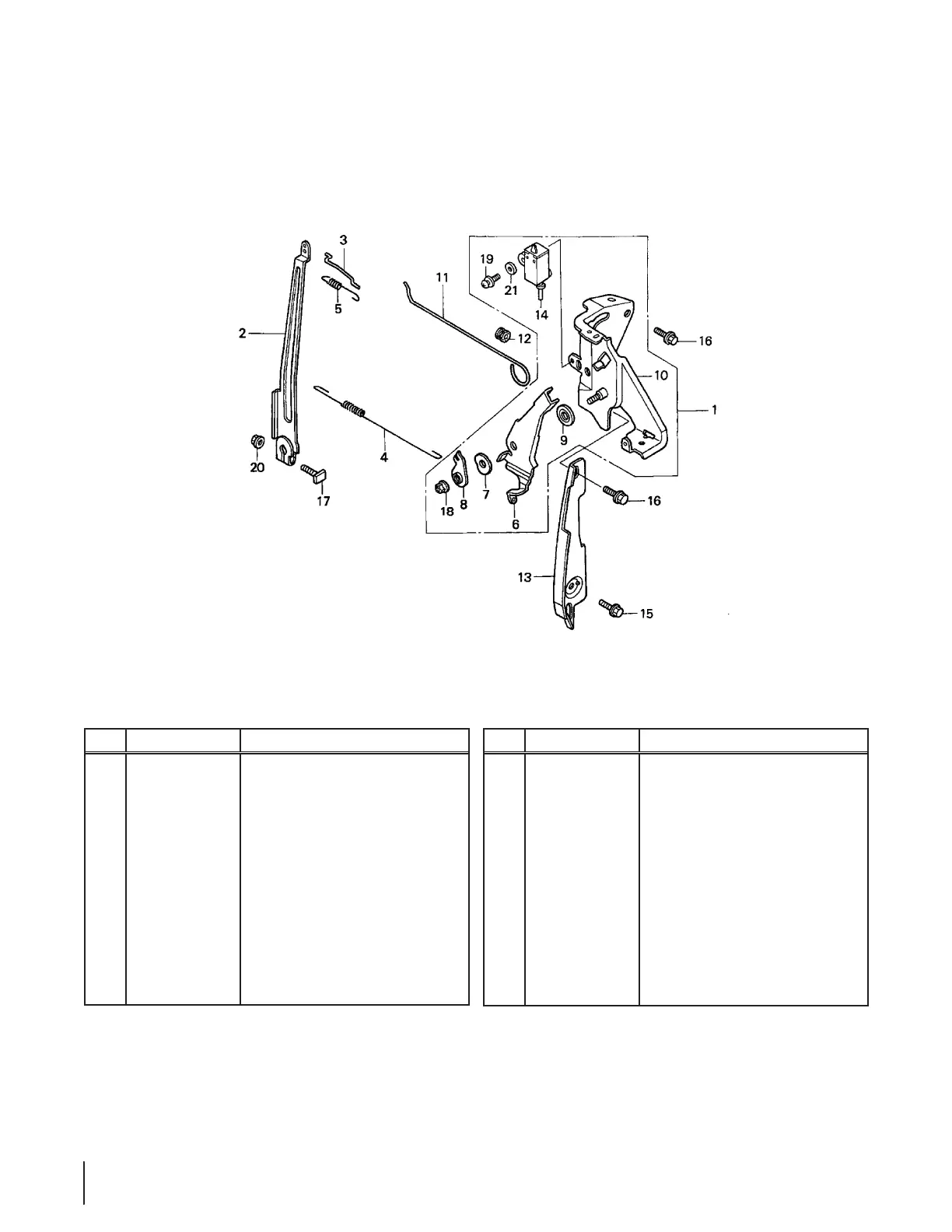

Honda GC190LA Controls
CONTROL (1)
1-16 2006 American Honda Motor Co., Inc. MAY, 2006 1-C8
Z1A0E2200
MODEL TYPE
A =GC190A a =MHA2
E-22
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 CONTROL ASSY......................................... -------- -------- 1 16500-ZL8-000 5611074
2 ARM, GOVERNOR...................................... -------- -------- 1 16551-ZL8-000 5611132
3 ROD, GOVERNOR...................................... -------- -------- 1 16555-ZL8-000 5611140
4 SPRING, GOVERNOR ................................ -------- -------- 1 16561-Z0J-000 7557010
5 SPRING, THROTTLE RETURN .................. -------- -------- 1 16562-ZL8-800 5927033
6 LEVER, CONTROL .................................... -------- -------- 1 16571-ZL8-000 5611181
7 SPRING, LEVER ........................................ -------- -------- 1 16574-ZE1-000 1427384
8 WASHER, CONTROL LEVER .................... -------- -------- 1 16575-ZL8-000 5611215
9 SPACER, CONTROL LEVER...................... -------- -------- 1 16578-ZE1-000 1427400
10 BASE, CONTROL........................................ -------- -------- 1 16580-ZL8-000 5611256
11 ROD, CHOKE CONTROL .......................... -------- -------- 1 16611-ZL8-000 5611272
12 GROMMET, CHOKE ROD .......................... -------- -------- 1 16613-893-000 0788596
13 PLATE, SIDE .............................................. -------- -------- 1 19612-ZL8-000 5656020
14 SWITCH ASSY., ENGINE STOP (N.O) ...... -------- -------- 1 35120-ZL8-003 5611520
15 BOLT, FLANGE (6X12) (CT200) ................ -------- -------- 1 90013-883-000 0636845
16 BOLT, FLANGE (6X14) .............................. -------- -------- 2 90014-952-000 0803619
17 BOLT, GOVERNOR ARM .......................... -------- -------- 1 90015-ZE5-010 2418671
18 NUT, SELF-LOCK (6MM) ............................ -------- -------- 1 90114-SA0-000 1410182
Ref. Part Number Description
1. 16500-ZL8-000 Control Assembly
2. 16551-ZL8-010 Governor Arm
3. 16555-ZL8-000 Governor Rod
4. 16561-Z0J-000 Governor Spring
5. 16562-ZL8-800 Throttle Return Spring
6. 16571-ZL8-000 Control Lever
7. 16574-ZE1-000 Lever Spring
8. 16575-ZL8-000 Control Lever Washer
9. 16578-ZE1-000 Control Lever Spacer
10. 16500-ZL8-000 Control Base
11. 16611-ZL8-000 Choke Control Rod
Ref. Part Number Description
12. 16613-893-000 Choke Rod Grommet
13. 19612-Z0L-000 Side Plate
14. 35120-ZL8-003 Engine Stop Switch Assembly
15. 90013-883-000 Flange Bolt, 6 x 12
16. 90014-952-000 Flange Bolt, 6 x 14
17. 90015-ZE5-010 Governor Arm Bolt
18. 90114-SA0-000 Self-lock Nut, 6mm
19. 93892-04012-00 Screw-Washer, 4 x 12
20. 94050-06000 Flange Nut, 6mm
21. 94103-04000 Plain Washer, 4mm
