Cub Cadet FT 24 Parts Manual

32

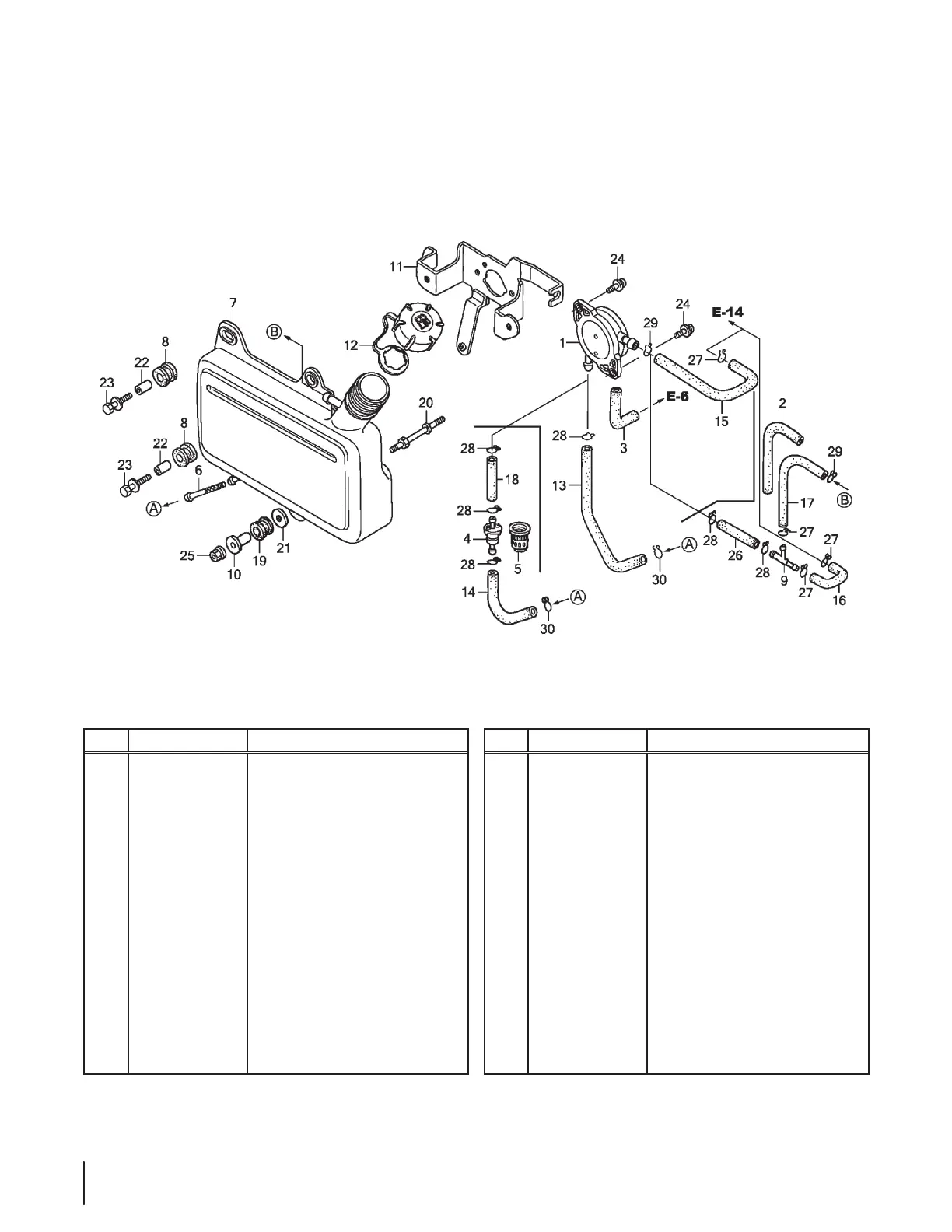

Honda GC190LA Fuel System
Ref. Part Number Description
1. 16700-Z0J-003 Fuel Pump Assembly
2. 16854-ZH8-000 Supporter Rubber, 107mm
3. 16882-ZL8-000 Tube, Diaphragm
4. 16910-ZV4-015 Fuel Strainer
5. 16915-ZV4-000 Strainer, Suspension
6. 17511-Z0 J - 800 Fuel Tank
7. 17516-ZV0-000 Tank Mounting Rubber, B
8. 17519-ZL8-800 Fuel Tube
9. 17535-KE7-000 Collar
10. 17561-Z0J-000 Stay A, Fuel Tank
11. 17620 -Z0J-800 Fuel Cap Assembly
12. 17701-ZL8-800 Fuel Tank Tube
13. 17702-ZL8-800 Fuel Tube
14. 17703-ZL8-800 Fuel Return Tube
Ref. Part Number Description
15. 17704 -ZL8-800 Fuel Pump Tube
16. 80103-MG2-000 Rear Fender Cushion
17.
90041-ZL8-000
Fuel Tank Stud Bolt, 30mm
18. 90473-896-000 Washer, 6Mm
19. 90501-KA2-640 Collar, 14 X 6.1
20. 93404-06025-00 Bolt-Washer, 6 X 25
21. 93894-05014-00 Screw-Washer, 5 X 14
22. 94050-06000 Nut, Flange, 6mm
23. 95001-55033-40 Fuel Tube, 5.3 X 33
24. 95002-02080 Tube Clip, B8
25. 95002-02100 Tube Clip, B10
26. 95002-50000 Tube Clip, C9
27. 95002-70000 Tube Clip, C11
32

Cub Cadet FT 24 Specifications

General

Brand	Cub Cadet
Model	FT 24
Category	Lawn and Garden Equipment
Language	English
