Cub Cadet FT 24 Parts Manual

76

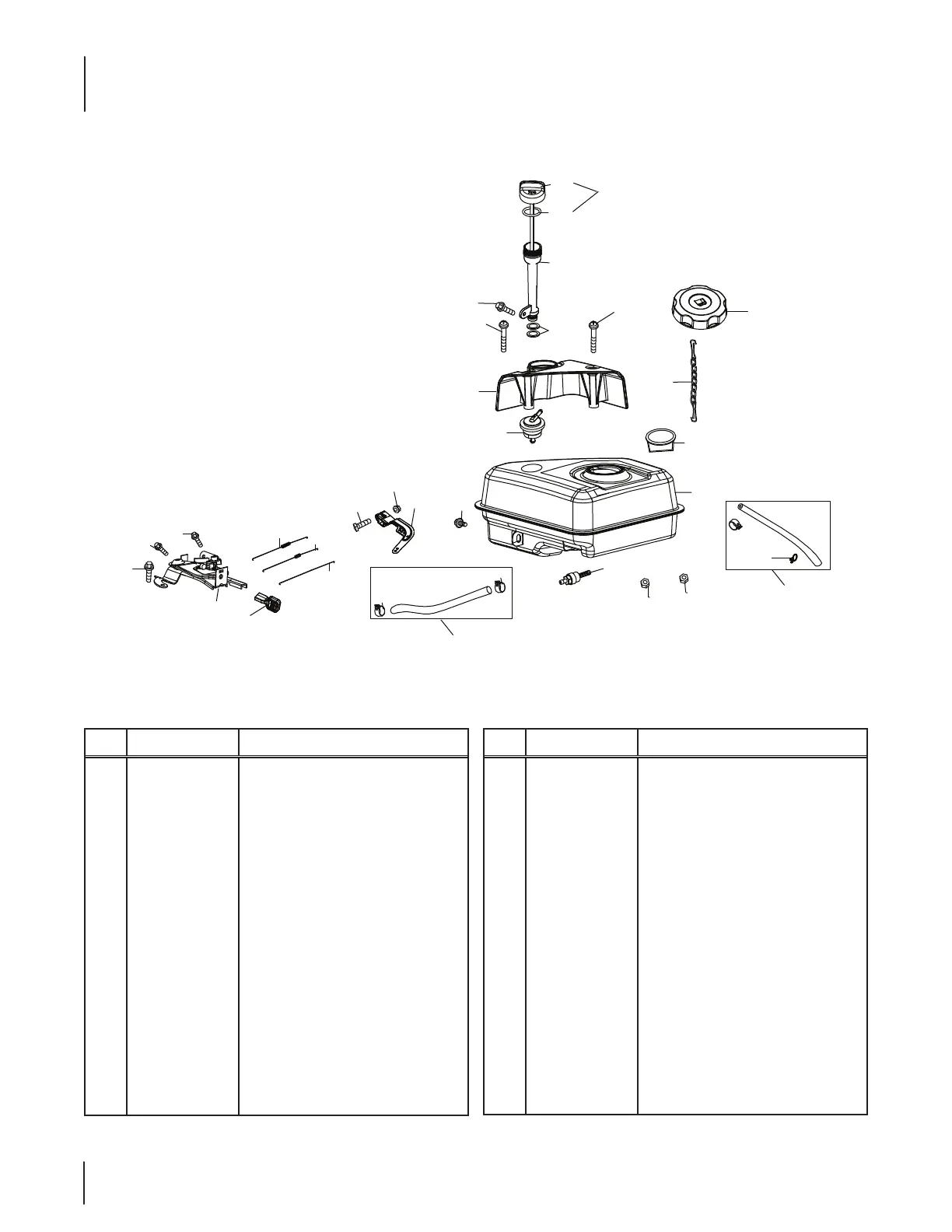

170-TU Fuel Tank & Mounting
Ref. Part Number Description
1 710-04968 Bolt M6×16
3 726 - 04101 Breather Hose Clamp
90 951-11067 Throttle Control Knob
91 951-12131 Primer Bracket
92 710-05103 Bolt M6×12
93 951-11585 Governor Spring
94 951-10664 Throttle Linkage Spring
95 951-10665 Throttle Linkage
97 951-11106 Governor Arm
98 712-04212 Nut M6
99 710-04908 Governor Arm Bolt
100 951-10650 Fuel Line Kit
101 951-1170 0 Fuel Hose Clamp
102 710 - 04915 Bolt M6×12
103 951-14075 Rollover Valve
Ref. Part Number Description
104 951-11914 Dipstick Decoration Cover
105 710-04905 Bolt
106 710-04915 Bolt M6×12
107 951-12482 Dipstick Assembly
108 951-11381 O-Ring
109 951-11913 Oil Fill Tube Assembly
110 951-11904 O-Ring
111 951-11912 Dipstick Guage
112 951-12535 Cap Comp,Fuel
113 951-14076 Tether
114 751-14139 Primer Hose
118 951-14077 Fuel Tank Assembly
119 951-11933 Fuel Level Indicator
120 951-10651 Fuel Tank Nipple
121 712- 04212 Nut, M6
1
92
92
91
90
93
94
95
100
101
101
99
98
97
102
120
121
121
118
119
3
114
113
112
105
103
104
105
106
111
110
109
108
107
