Cub Cadet i1046 Parts Manual

i1046 & i1050/Series i1000 SECTION HM12
34
6
7
8
11
6
12
13
4
5
1
2
3
14
10
9
7

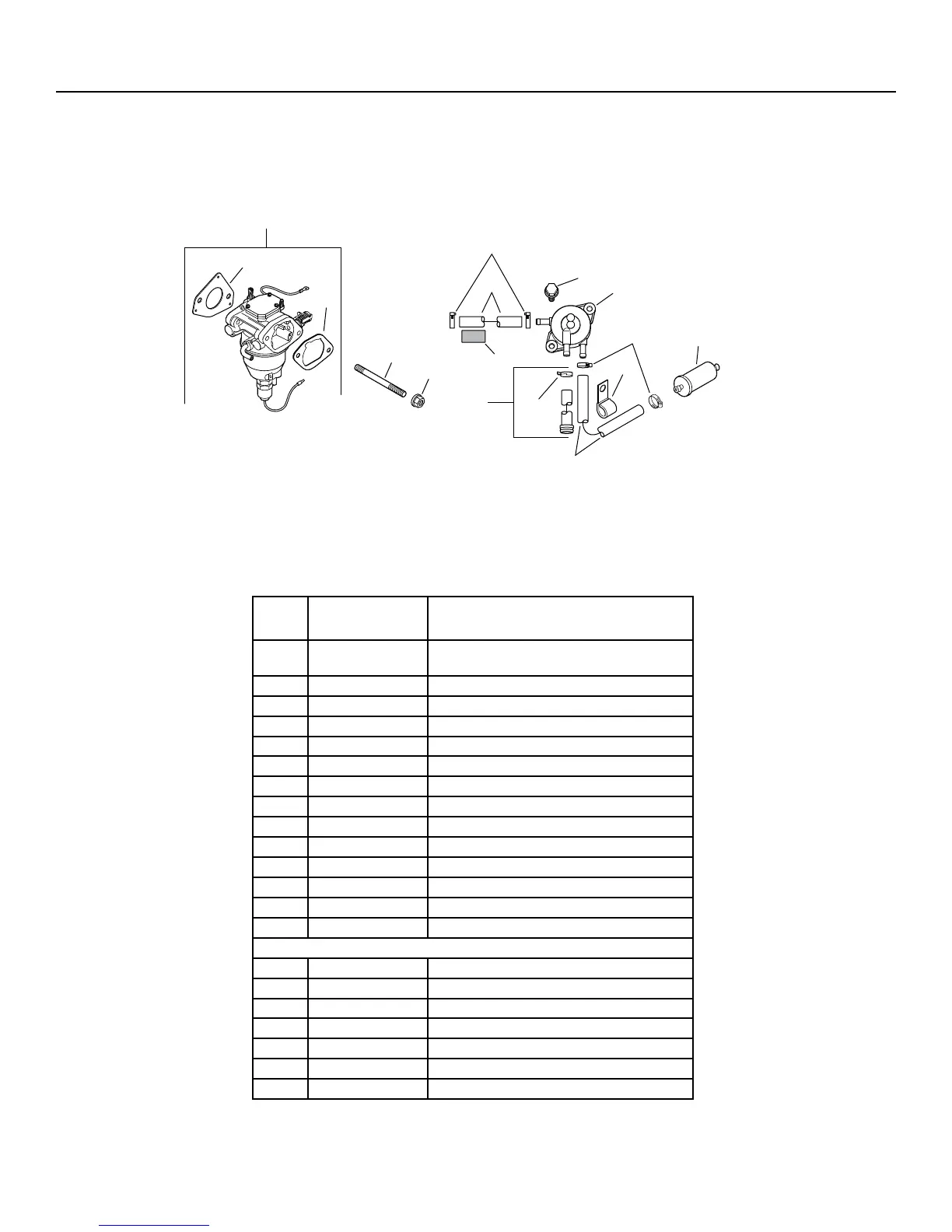

i1046 & i1050 Fuel System/Carburetor
Ref.
No.
Part No. Description
1 KH-32-853-03-S
KH-32-853-04-S
Kit, Carburetor (Incl. 2-3) Model i1046 ONLY
Kit, Carburetor (Incl. 2-3) Model i1050 ONLY
2 KH- 24-041-52-S Gasket, Carburetor
3 KH-24-041-14 Gasket, Air Cleaner Base
4 KHM-629105-S Stud, M6 x 1.0 x 106
5 KH-M-641060-S Nut, Flange, M6 x 1.0
6 KH-25-237-14-S Clamp, Spring Hose 1/2
7 KH-25-111-34-S Line, Fuel (24”- Cut to Length
8 KH-25-431-10-S Sleeve, Anti Abrasion
9 KH-32-326-02-S Kit, Fuel Pump Hose w/Clamp (Incl. 10)
10 KH-25-237-01-S Clamp, Hose
11 KH-24-086-12 Screw, Tap, M6 x 1.7 x 18
12 KH-24-393-16 Pump, Fuel
13 KH-25-050-22-S Filter, Fuel
14 KH-47-154-01-S Clip, Cable
Not Illustrated
KH-24-086-05 Screw, Throttle Stop - Model i1046 ONLY
KH-X-25-63 Washer, Flat, 1/4
KH-24-757-36-S Service Kit, Choke Repair
KH-24-757-38-S Service Kit, Gasket
KH-24-757-44-S Kit, Float Repair
KH-24-757-45-S Kit, Solenoid Valve Repair
KH-24-757-46-S Kit, Carburetor Overhaul Repair

Cub Cadet i1046 Specifications

General

Brand	Cub Cadet
Model	i1046
Category	Lawn Mower
Language	English
