Cub Cadet i1046 Parts Manual
5
of 1
of 1 rating
39 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
i
1046 &
i
1050/Series
i
1000
SECTION HM12
35
7
2
3
4
1
5
6

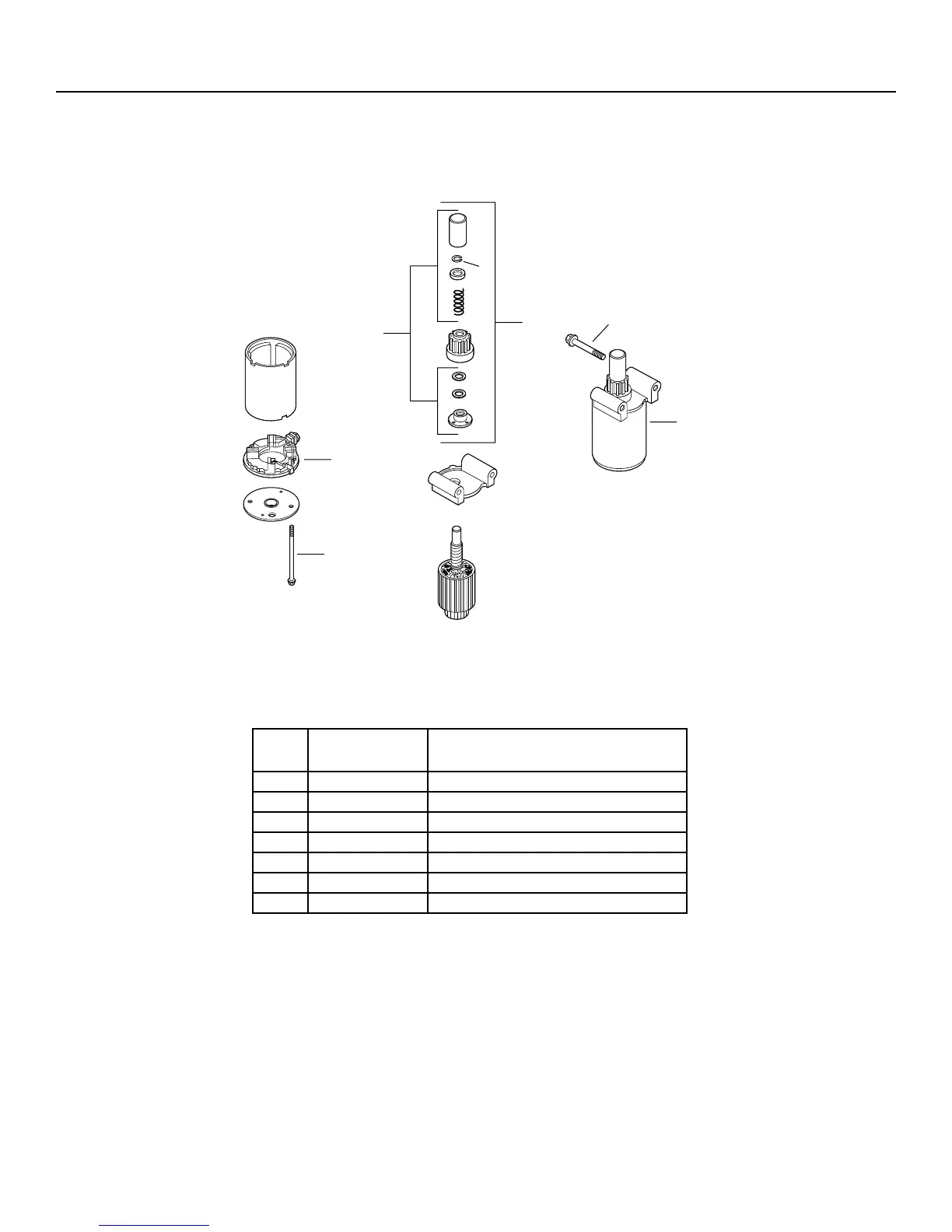

i1046 & i1050 Starter Motor
Ref.
No.
Par
t No.
De
scription
1
KH-M-839080-S
Screen, Gr
ass
2
KH-32-098-01-S
Scre
w
, Flange, M10 x 1.5 x 45
3
KH-12-755-39-S
W
asher
, Flat 13/32
4
KH-12-755-38-S
Plate
, F
an Mounting
5
KH-32-141-01-S
F
an
6
KH-32-211-01-S
Flywheel
7
KH-12-243-04-S
K
ey
, 3/16 x 5/8
34
36
Table of Contents
Parts Manual
1
Frame, PTO and Battery Exploded Diagram
2
Hood, Dash Panel and Fuel Tank Exploded Diagram
4
Seat, Fender and Deck Lift Exploded Diagram
6
Steering Controls and Front Axle Exploded Diagram
8
Transmission Drive and Controls Exploded Diagram
10
Engine Mounting and Connections Exploded Diagram
12
Steering Gear Box Exploded Diagram
14
46" Mowing Deck
16
50" Mowing Deck
18
RH Transmission Assembly
20
LH Transmission Assembly
22
I1046 and I1050 Crankcase; Crankshaft; and Dipstick
24
I1046 and I1050 Cylinder Head/Valves/Breather Exploded Diagram
26
I1046 and I1050 Blower Housing/Baffles Exploded Diagram
28
I1046 and I1050 Oil Pan/Filter Exploded Diagram
30
I1046 and I1050 Air Filter/Intake Manifold Exploded Diagram
31
I1046 and I1050 Flywheel/Electrical Exploded Diagram
32
I1046 and I1050 Fuel System/Carburetor
34
I1046 and I1050 Starter Motor Exploded Diagram
35
I1046 and I1050 Engine Control Exploded Diagram
36
Model I1046 Labels
38
Model I1050 Labels
39
