Series 1000 and 1500
9

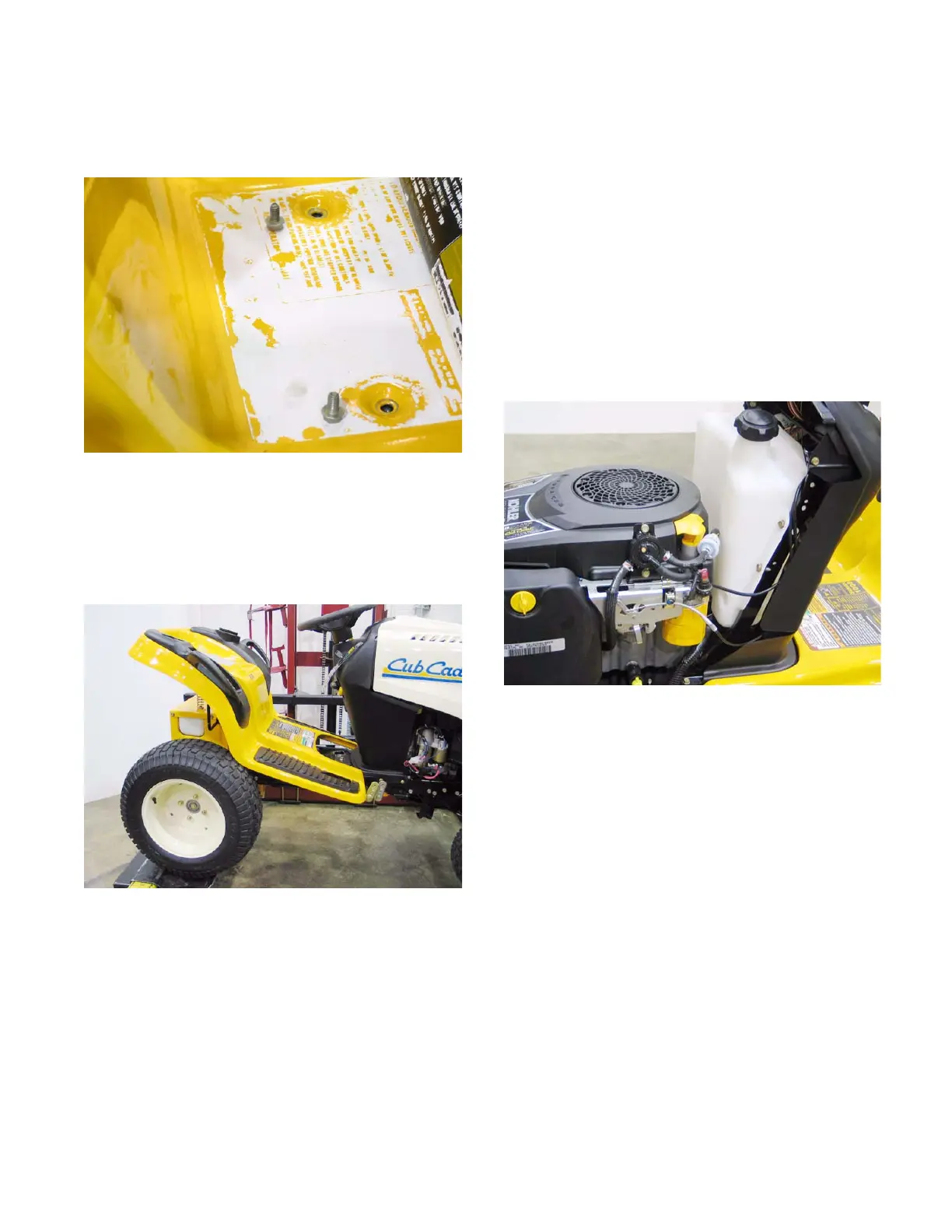

5.14. Remove the two screws that were revealed by
peeling-back the label. This can be done using a
3/8” wrench.
See Figure 5.14.
5.15. Remove the fuel filler cap.
5.16. Lift the fenders off of the tractor, maneuvering
them to clear the cutting deck height control
lever.
See Figure 5.16.
5.17. Remove the fenders to a safe place.
5.18. Replace the fuel filler cap.
5.19. Installation notes:
• Confirm that the seat safety switch wires are
accessible before securing the fender.
• 144 in-lbs is adequate tightening torque for the
5/16”-18 screws and bolts removed in this proce-
dure. (1/2” wrench or T-40 driver)
Figure 5.14
Figure 5.16
• When installing a large panel, start all of the
threaded fasteners, then go back and tighten
each after the panel is in position.
• Test the operation of all controls and safety fea-
tures in a safe place, free of obstacles and by-
standers before returning the tractor to service.
6. FUEL SYSTEM
6.1. While the 1000 and 1500 Series tractors are
built on the same frame, the fuel systems differ
substantially in layout.
6.2. The 1000 Series tractors have the fuel tank
beneath the hood, with the battery located under
the seat.
See Figure 6.2.
6.3. This positioning is necessary to provide easy
service access to the CVT drive system used on
the 1000 series tractors. The rear mounted bat
-
tery, and the tray that supports it are easily
removable.
6.4. The battery of the 1500 Series tractor is located
under the hood, with the fuel tank mounted
under the rear fenders.
Figure 6.2
