Cub Cadet LT1042LE Service Manual

Series 1000 and 1500
5
2.7. A torsion spring keeps the latch secure until the
lower pivot latch is intentionally pulled up, to
open the hood.
See Figure 2.7.
2.8. The hood latches to a sturdy rod that is mounted
to the front of the frame.
See Figure 2.8.
3. HOOD PANEL REMOVAL: 1500 SERIES
NOTE: Use this procedure if the hood alone is to
be removed. Typical reasons might include
replacement because of damage to the hood, or
to ease access for other service.
3.1. Disconnect ground cable from battery using a
7/16” wrench.

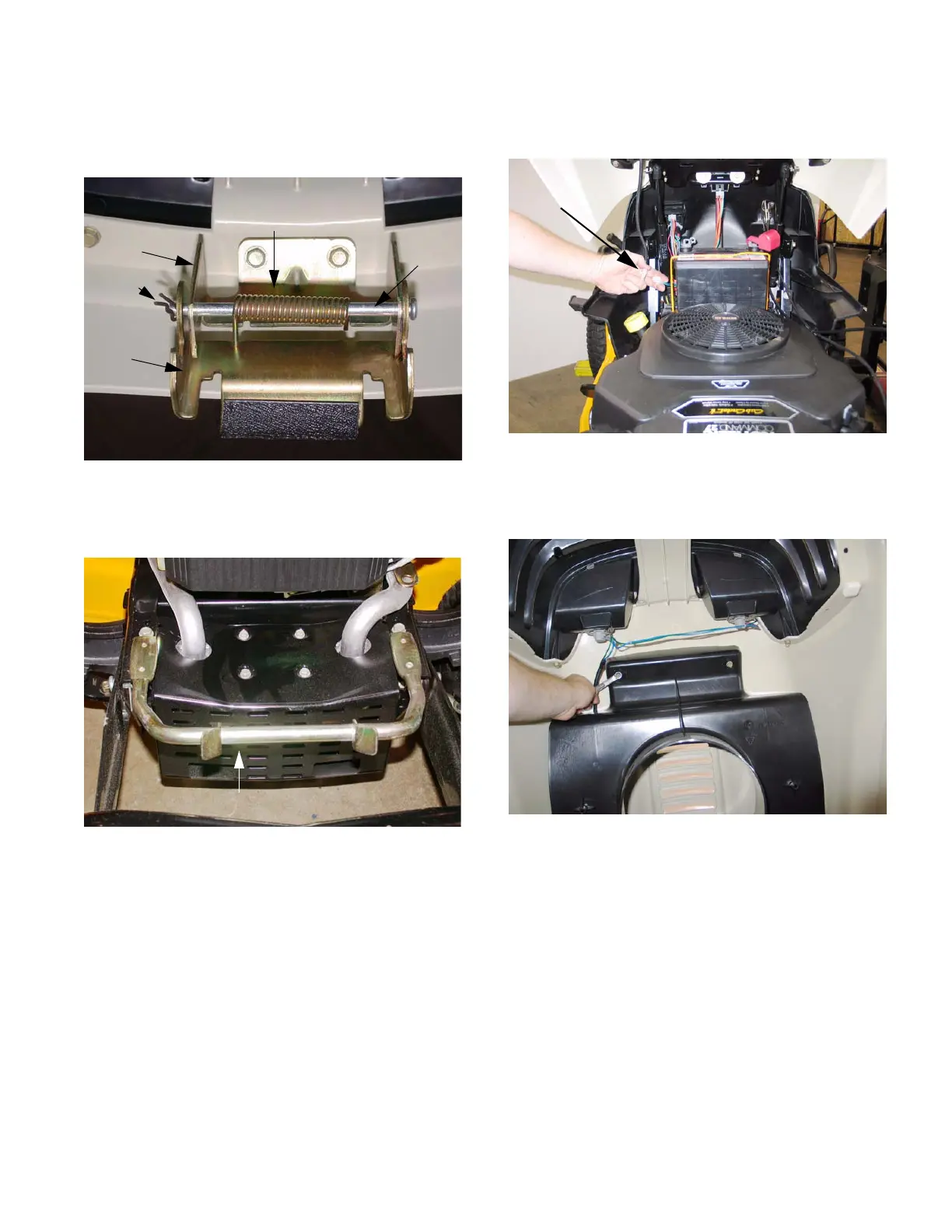

Figure 2.7
Torsion Spring
Cotter
Lower
Pivot
Latch
Upper
Pivot
Latch
Pin
Pivot
Rod
Figure 2.8
Hood Latch Rod
3.2. Disconnect headlight harness (plugged secured
to hood lift cylinder).
See Figure 3.2.
3.3. Remove the air deflector baffle using a 3/8”
wrench.
See Figure 3.3.
3.4. Support the hood as it is being loosened.
3.5. Separate hood from hinge using a 3/8” wrench.
3.6. Lift hood off of tractor.
Figure 3.2
Headlight
Harness
Figure 3.3
