Cub Cadet Time Saver i1042 User Manual

Controlsand Features
4
f
B
\
C
E
D
P
F
H
J

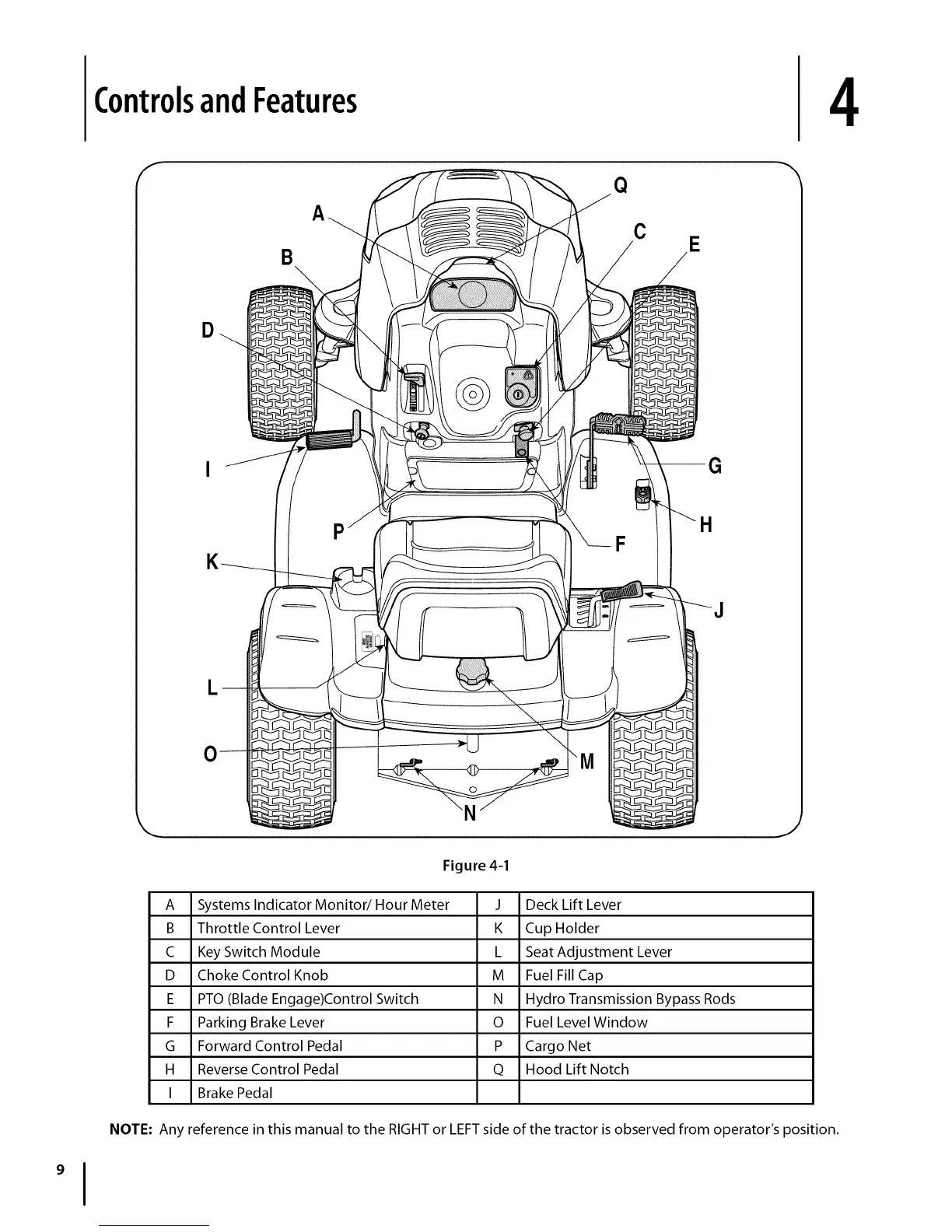

Figure 4-1
A Systems Indicator Monitor/Hour Meter
B Throttle Control Lever
C Key Switch Module
D Choke Control Knob
E PTO (Blade Engage)Control Switch
F Parking Brake Lever
G Forward Control Pedal
H Reverse Control Pedal
I Brake Pedal
J Deck Lift Lever
K Cup Holder
L Seat Adjustment Lever
M Fuel Fill Cap
N Hydro Transmission Bypass Rods
O Fuel Level Window
P Cargo Net
Q Hood Lift Notch
NOTE: Any reference in this manual to the RIGHT or LEFTside of the tractor is observed from operator's position.

Cub Cadet Time Saver i1042 Specifications

General

Brand	Cub Cadet
Model	Time Saver i1042
Category	Lawn Mower
Language	English
