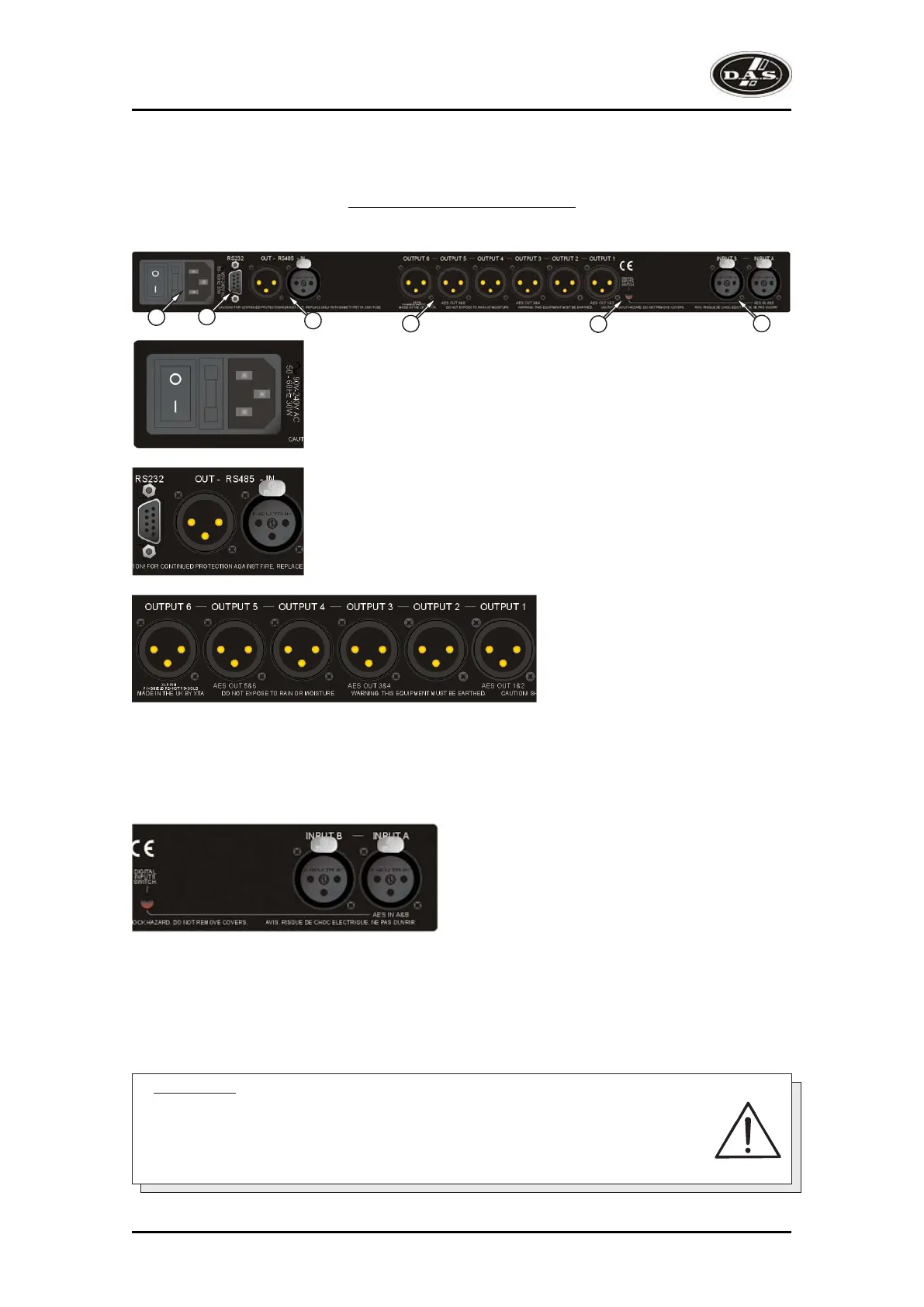

Rear panel description
1
2
6
3
5
4
[5]-AES Input Switch: Recessed switch to select AES
digital inputs. Red LED will illuminate in the hole when
AES inputs are selected, along with the corresponding
front panel indicator.
[1]:
Power Switch: turns the unit’s mains supply off and on.
Mains Fuse: located in a finger-proof holder adjacent to the mains inlet. A
spare fuse is also located in this holder.
Mains Inlet: connected via a standard IEC socket.
[2]-
[3]-RS485 IN-OUT:
RS232: RS232 standard via a 9 pin D-type connector, for connection to a
PC. Data is converted to RS485 standard and relayed to slave units via the
RS485 sockets.
XLR sockets. Used for transmission of remote control
data over long distance or multiple unit applications. See page 18 for more
information.
[4]-Audio Outputs: 3 pin XLR sockets are provided for each channel. All are fully balanced, pin 2 hot, 3
cold, 1 screen. Note the legending on the panel to designate which outputs are used for AES streams when
the digital outputs are enabled. Please see page 23 for more information.
[6]-Audio Inputs: 3 pin XLR sockets are provided for each channel. All are fully balanced, pin 2 hot, 3 cold,
1 screen. Note the legending on the panel to designate which inputs are used for AES when the digital inputs
are enabled. Please see page 23 for more information.
WARNING:
Class I device. This equipment must be earthed. If the cable or the mains plug
are damage they must replaced.
Always replace the fuse with the correct type and rating as shown on the rear
panel legend.
5
DSP-2060A
User’s Manual
