D-Link DAP-1320 User Manual

48D-Link DAP-1320 User Manual

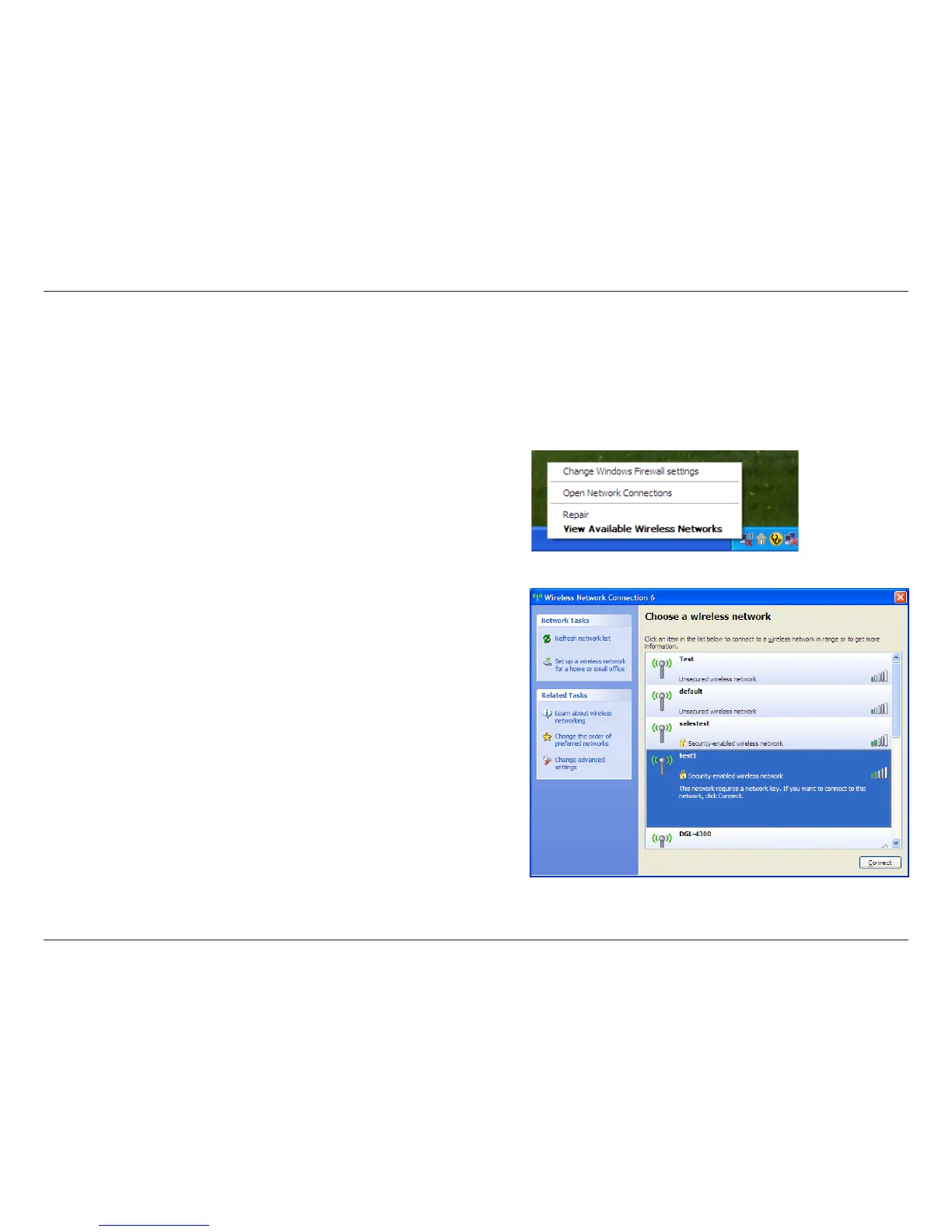

Section 4 - Connecting to a Wireless Network
It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are
joining an existing network, you will need to know the WPA key being used.
2. Highlight the wireless network (SSID) you would like to
connect to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner
of screen). Select View Available Wireless Networks.
WPA/WPA2

D-Link DAP-1320 Specifications

Wireless Standards and Antennas

wireless standards	IEEE 802.11n, IEEE 802.11g
antenna type	2 Internal Antennas

Weight and Dimensions

dimensions	1.89” x 1.65” x 2.11” (4.8 x 4.19 x 5.36 cm)
weight	0.152 lb (68.94g)
