Section 2: Installation
43mm
30mm

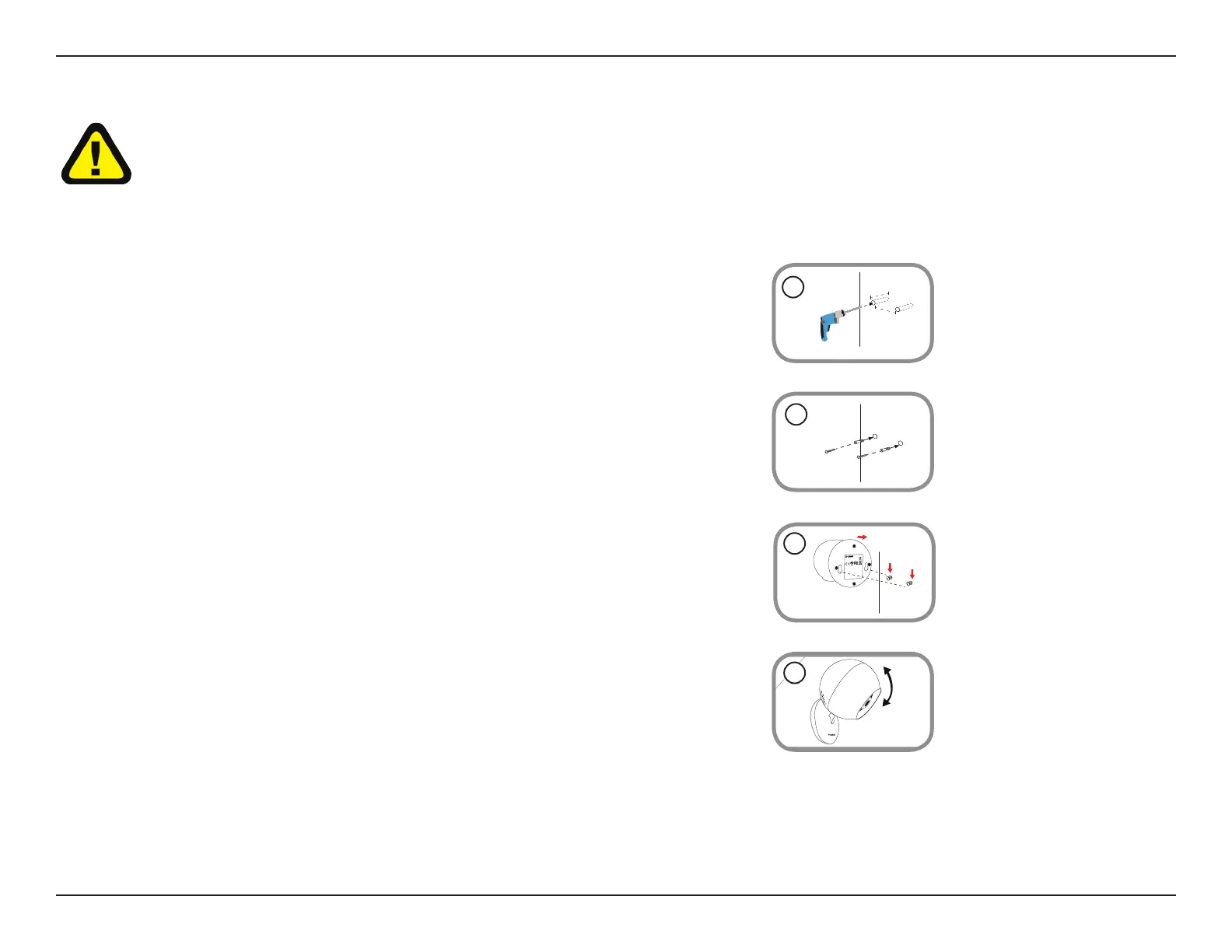

Mounting the Camera
1. Use a 6mm drill bit to drill two holes that are 43mm apart, and at least 30mm deep.
4. Make sure the camera is positioned so that the D-Link logo is at the bottom of the base.
Adjust the angle of the camera as desired.
2. Use a mallet to insert the wall anchors into the holes. Screw the included screws into the
wall anchors.
3. Place the mounting holes on the base of the camera over the screws as shown, then slide
the camera down to mount the camera.
Refer to the steps below for mounting the camera. The DCS-820L is for indoor use only. We suggest you congure the camera before mounting it.
1
2
3
4
WARNING - STRANGULATION HAZARD
Children have STRANGLED in cords. Keep adapter cord out of reach of children (minimum of three feet away). NEVER place the camera or adapter cord inside
the crib or child's sleeping area. Do not use extension cords. This product is NOT intended to replace proper adult supervision of children.
43mm
30mm
FCC ID: KA2CS825LA1
IC: 4216A-CS825LA1
CAN ICES-3 (B)/NMB-3(B)
Model: DCS-820LA1
DCS-820 L

D-Link DCS-820L Specifications

General

Certification	CE, CE LVD, FCC, C-Tick
Maximum range	5 m
Motion sensor	Yes
Smartphone support	-
Compatible products	iPhone, iPad
Number of lullabies	5
Video compression formats	H.264
Mobile operating systems supported	Android 4.1, Android 4.2, Android 4.3, Android 4.4, iOS 6.0
Product color	White
Compatible memory cards	MicroSD (TransFlash)
Sensor type	CMOS
Fixed aperture	2 mm
Video resolutions	320 x 240, 640 x 480 pixels
Fixed focal length	2.5 mm
Optical sensor size	1/5 \
Minimum illumination	0 lx
Interface	Wi-Fi
Wi-Fi standards	Wi-Fi 4 (802.11n)
Depth	86 mm
Width	92 mm
Height	120 mm
Power supply	5.1 W
Dimensions (WxDxH)	92 x 86 x 120 mm
Maximum number of cameras supported	1
AC input voltage	5 V
Power source type	DC, USB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
