Section 2 - Installation

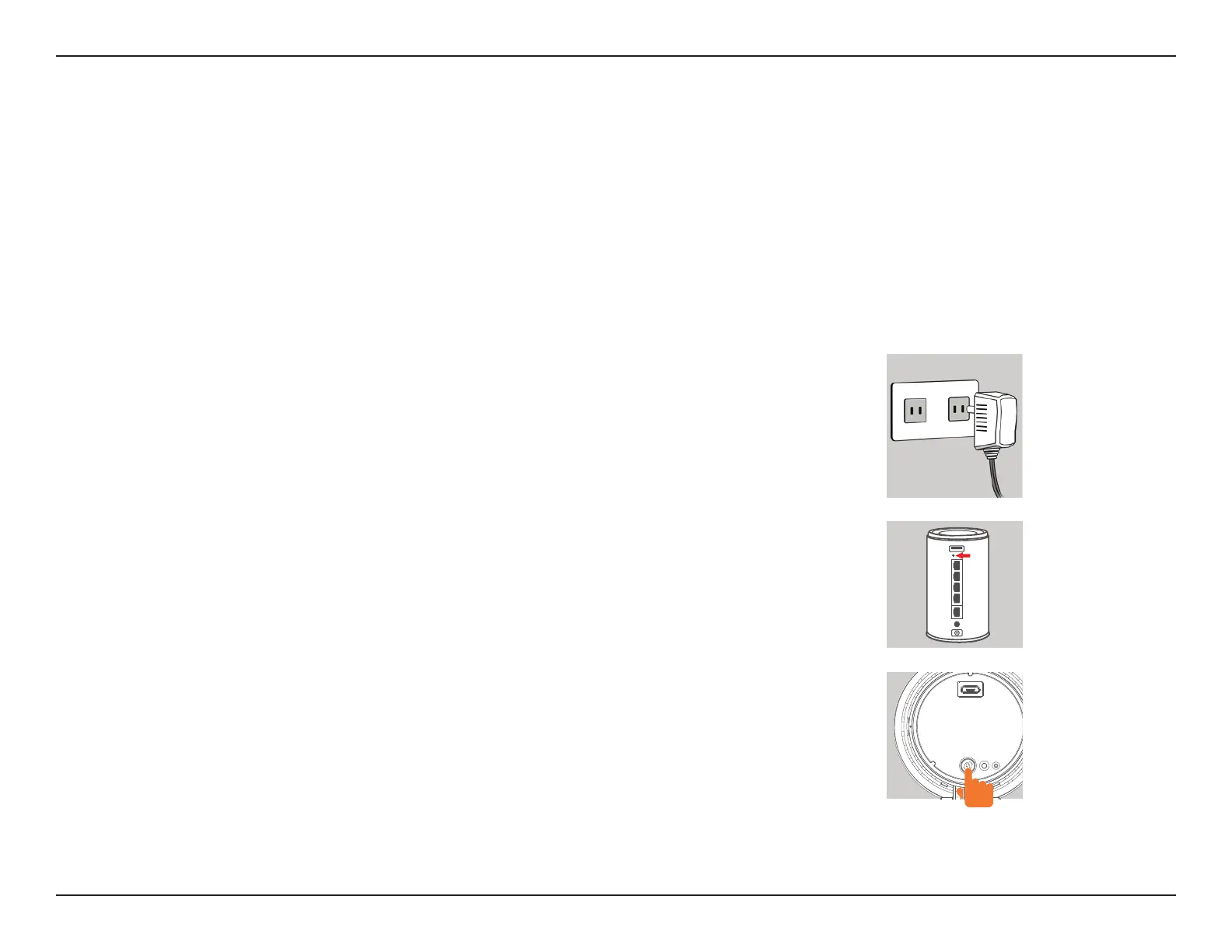

Zero Conguration Setup
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration automatically congures
your camera’s settings for you, and adds the camera to your mydlink account automatically. This type of setup allows you to set up your camera by
simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Configuration will automatically configure your DCS-936L and
add the camera to your mydlink account. After the short time it takes to do this you can remotely access your camera from the website
(http://www.mydlink.com) to manage and monitor your DCS-936L.
Plug in the External Power Adapter
Connect the power adapter to the microUSB port on the back of the camera. Plug the
power adapter in to a wall outlet. Wait 2 minutes for the camera to boot up.
Press the WPS button on your Cloud Router
Press the WPS button on your Cloud Router. The WPS button is usually on the side or back
of your Cloud Router.
Press the WPS button on your camera
Within 1 minute, press the WPS button on the camera for 6 seconds. After the camera
automatically connects to your router, the Power LED will turn solid green.

D-Link DCS-936L Specifications

General

Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Time stamp overlay	Yes
Supported video modes	720p
Image quality adjustment	Brightness, Colour depth, Contrast, Saturation, Sharpness
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 176, 640 x 352, 1280 x 720 (HD 720)
Sensor type	CMOS
Optical sensor size	1/4 \
Interface	Wi-Fi
Form factor	Cube
Mounting type	Ceiling/wall
Product color	Black
LED indicators	Power, WLAN
Type	IP security camera
Certification	CE, CE LVD, FCC B, ICES, C-Tick
Placement supported	Indoor
Connectivity technology	Wired
Ethernet LAN	No
Streaming method	Multicast
Supported network protocols	IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE, UPnP, RTP, RTSP, RTCP, HTTP, Bonjour
LED type	IR
Night vision distance	4.8 m
Minimum illumination	0 lx
Audio formats supported	ADPCM, PCM
Digital zoom	4 x
Fixed focal length	2.45 mm
Maximum aperture number	2.4
Compatible memory cards	MicroSD (TransFlash)
Password protection type	User
Mobile operating systems supported	Android, iOS
DC output current	1.2 A
DC output voltage	5
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %
Number of cameras	1
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1994 mm
Pallet gross weight (air)	369950 g
Quantity per pallet (air)	825 pc(s)
Shipping (inner) case width	218 mm
Shipping (inner) case height	169 mm
Shipping (inner) case length	338 mm
Shipping (inner) case weight	2130 g
Shipping (inner) case net weight	1070 g
Number of cartons per pallet (air)	165 pc(s)
Harmonized System (HS) code	85258900
Quantity per shipping (inner) case	5 pc(s)

Weight and Dimensions

Depth	65.9 mm
Width	92.1 mm
Height	90.7 mm
Weight	140 g
Package depth	135 mm
Package width	63 mm
Package height	200 mm
Package weight	392.6 g
