D-Link DCS-960L User Manual

38D-Link DCS-960L User Manual
Section 3 - Conguration

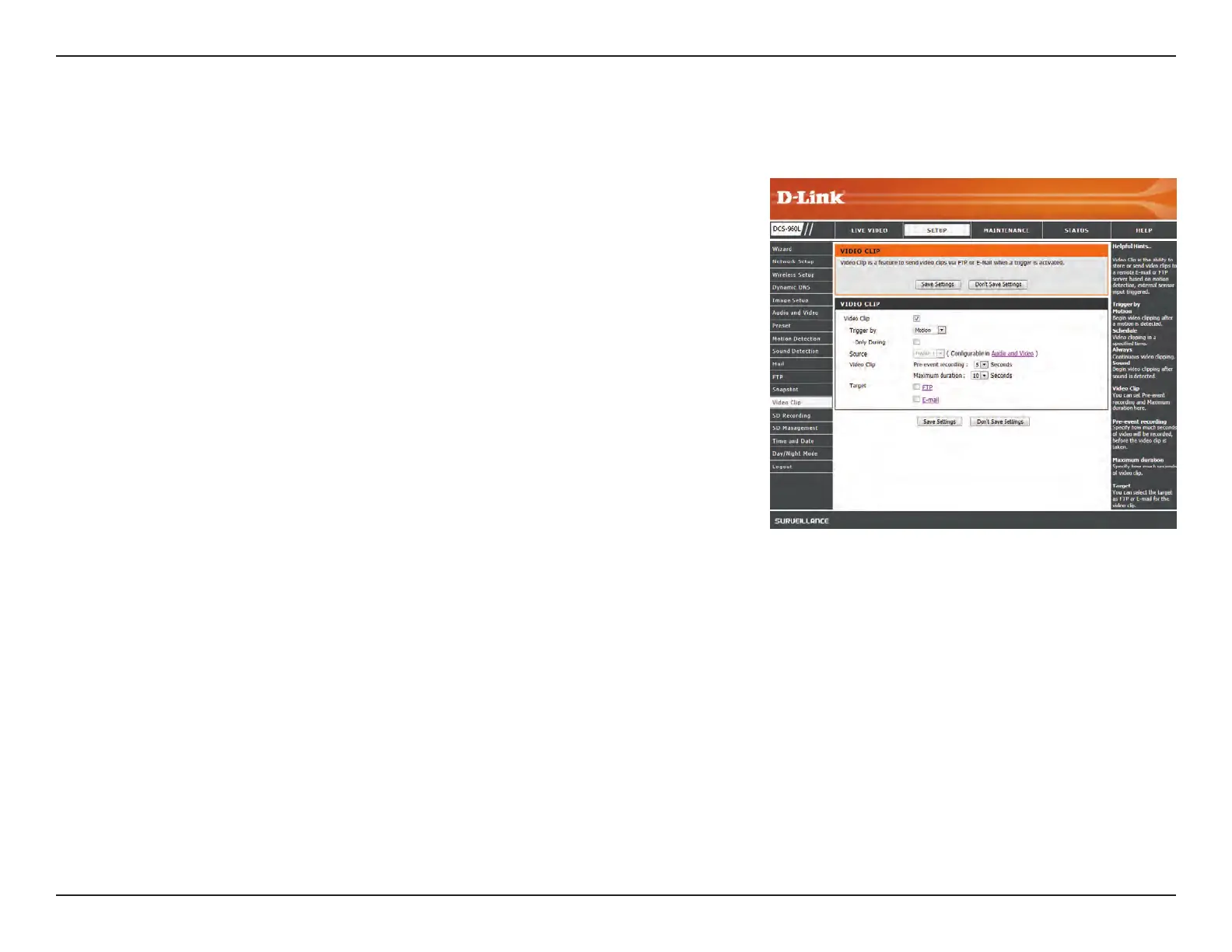

Video Clip
Video Clip allows you to send video clips via FTP or e-mail when a trigger is activated.
Video Clip:
Trigger By:
Video Clip:
Target:
Check this box to enable the Video Clip function.
Select whether to record when triggered by Motion or Sound, according to a
Schedule or Always record.
Here you can specify how much video to record before and after the event.
Select where you want the video clip to be sent. It may be uploaded to an FTP or
sent to an e-mail address.
Click Save Settings to save your changes.

D-Link DCS-960L Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Indoor
Connectivity technology	Wireless
Form factor	Cube
Mounting type	Desk
Product color	Black
Minimum illumination	0 lx
Field of view (FOV) angle	180 °
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 800 x 600 (SVGA), 1280 x 720 (HD 720)
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
LED type	IR
Night vision distance	4.8 m
Detection distance	0.5 m
Security algorithms	WEP, WPA, WPA2, WPS
DC output voltage	5
Power over Ethernet (PoE)	-
Power consumption (typical)	4.8 W
Frequency band	2.4/5 GHz
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	433 Mbit/s
Audio formats supported	G.711
Sensor type	CMOS
Optical sensor size	1/2.7 \
Interface	WLAN
Number of cameras	1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Width	95.8 mm
Height	137.5 mm
Weight	165 g
