D-Link DCS-960L User Manual

56D-Link DCS-960L User Manual
Section 4 - Security
Important: Some ISPs block access to port 80 and other commonly used Internet ports to conserve bandwidth. Check with your ISP so that you can
open the appropriate ports accordingly. If your ISP does not pass trac on port 80, you will need to change the port the camera uses from 80 to
something else, such as 800. Not all routers are the same, so refer to your user manual for specic instructions on how to open ports.

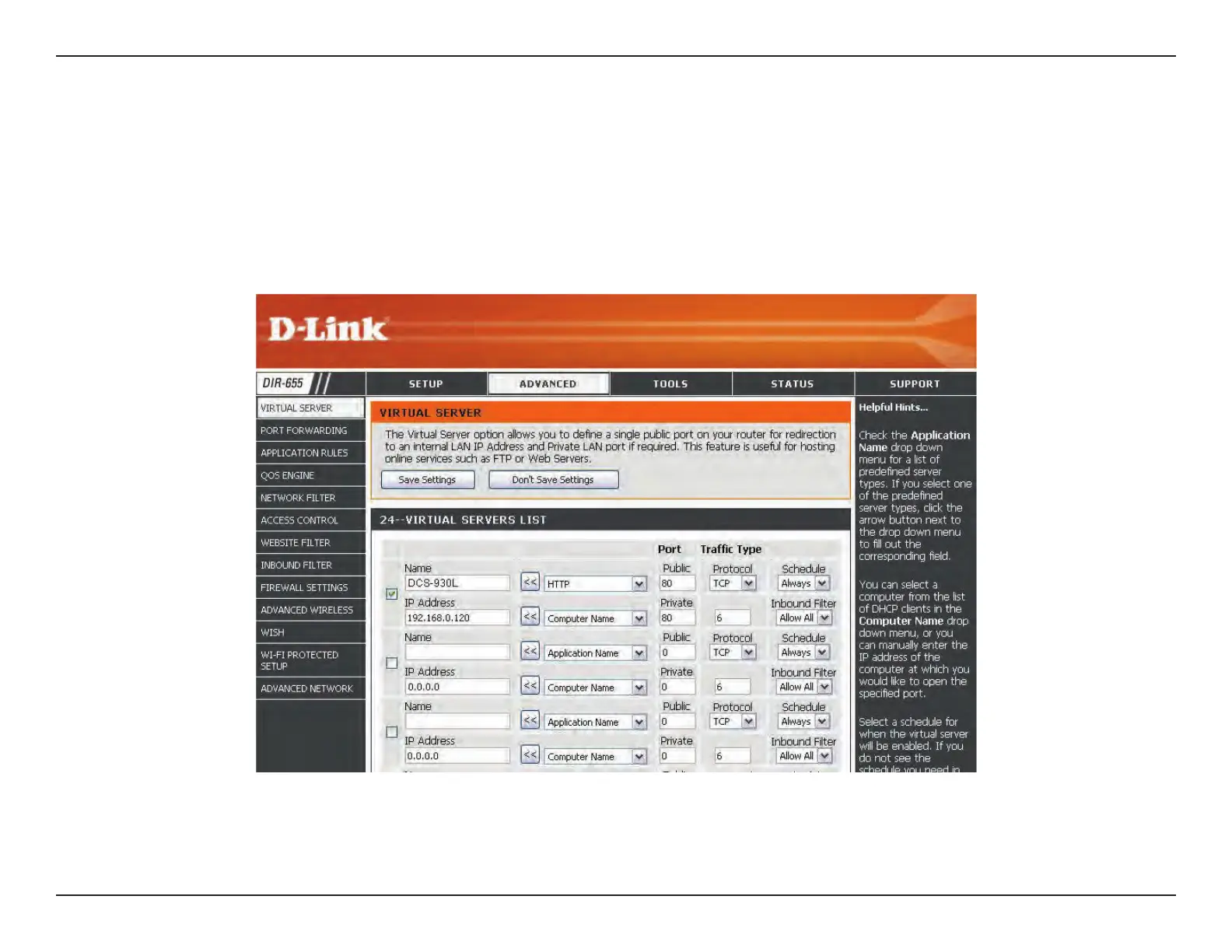

Enter valid ports in the Virtual Server section of your router. Please make sure to check the box next to the camera name on the Virtual Server List
to enable your settings.

D-Link DCS-960L Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Indoor
Connectivity technology	Wireless
Form factor	Cube
Mounting type	Desk
Product color	Black
Minimum illumination	0 lx
Field of view (FOV) angle	180 °
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 800 x 600 (SVGA), 1280 x 720 (HD 720)
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
LED type	IR
Night vision distance	4.8 m
Detection distance	0.5 m
Security algorithms	WEP, WPA, WPA2, WPS
DC output voltage	5
Power over Ethernet (PoE)	-
Power consumption (typical)	4.8 W
Frequency band	2.4/5 GHz
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	433 Mbit/s
Audio formats supported	G.711
Sensor type	CMOS
Optical sensor size	1/2.7 \
Interface	WLAN
Number of cameras	1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Width	95.8 mm
Height	137.5 mm
Weight	165 g
