D-Link DES-1005P User Manual

7
IDENTIFYING EXTERNAL COMPONENTS
Front Panel

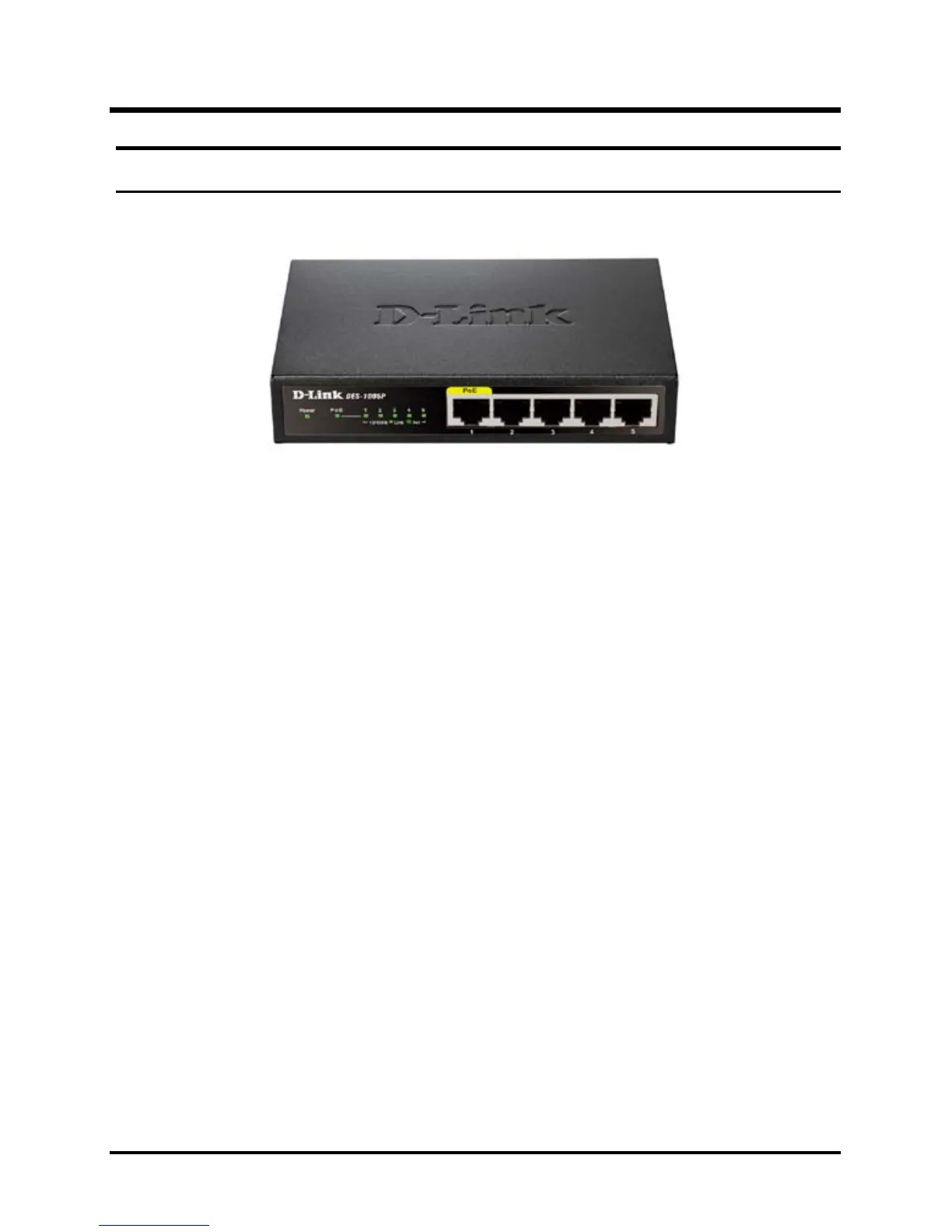

The figure below shows the front panels of the DES-1005P.
Figure 1. Front panel
 Power LED Indicator:
This green indicator light is on when the DES-1005P is receiving
power; otherwise, it is off.
 Ethernet Ports (Port 1~5):
These ports support network speeds of either 10Mbps or 100Mbps,
and can operate in half- and full- duplex transfer modes. These
ports also support automatic MDI/MDIX crossover detection,
which gives the Switch true, “plug and play” capabilities. Just
connect any network cable between the Switch and the device,
and The Switch will automatically detect the settings of the
device and adjust itself accordingly.
 PoE Port (Port 1 only):
The PoE port will automatically activate when a compatible
terminal is identified. The Switch will supply power through the
Ethernet port to the connected PoE device.
For legacy devices that are not compatible, the PoE port will not
offer the power to this device. This feature allows users to freely
and safely mix legacy and PoE compatible devices on the network.

D-Link DES-1005P Specifications

General

MAC address table	2000 entries
Store-and-forward	Yes
Maximum data transfer rate	0.2 Gbit/s
Supported data transfer rates	10/100 Mbit/s
10G support	No
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Networking features	Fast Ethernet
Packet transfer speed	148800 pps
Switch type	Unmanaged
Switch layer	-
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports quantity	5
Power over Ethernet (PoE) ports quantity	1
Power consumption (typical)	1.8 W
Certification	RoHS, FCC, ICES-003, cUL
Product color	Black
LED indicators	Link, PoE
Mean time between failures (MTBF)	324616 h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	85 mm
Width	140 mm
Height	28 mm
