D-Link DIR-506L Quick Install Guide

4 D-Link DIR-506L Quick Install Guide

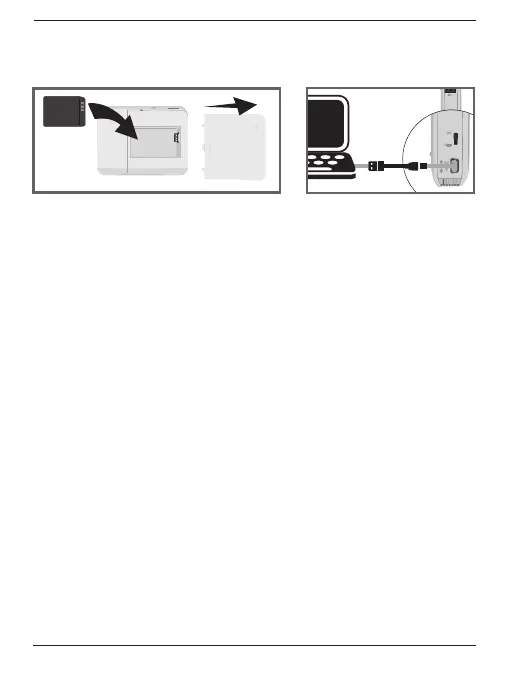

1. The battery must be installed for the device to operate. Slide o
the cover and insert the battery. Make sure the gold contacts
align with the gold terminals. Slide the cover back on.
2. Connect the USB cable to the DIR-506L and then connect to a
USB port on your computer.
Note: Charge the device using the USB cable for at least 4 hours
or until it is fully charged before usage.
LAN
ON
OFF
5V
LAN
ON
OFF
5V
+
-
Insert and Charge Battery

D-Link DIR-506L Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN (RJ-45) ports	1
USB version	2.0
Rack mounting	No
DHCP client	-
Antennas quantity	2
Security algorithms	WEP, WPA, WPA2, WPS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	22.3 mm
Width	102.9 mm
Height	79.8 mm
Weight	125 g
