D-Link DIR-506L Quick Install Guide

8 D-Link DIR-506L Quick Install Guide

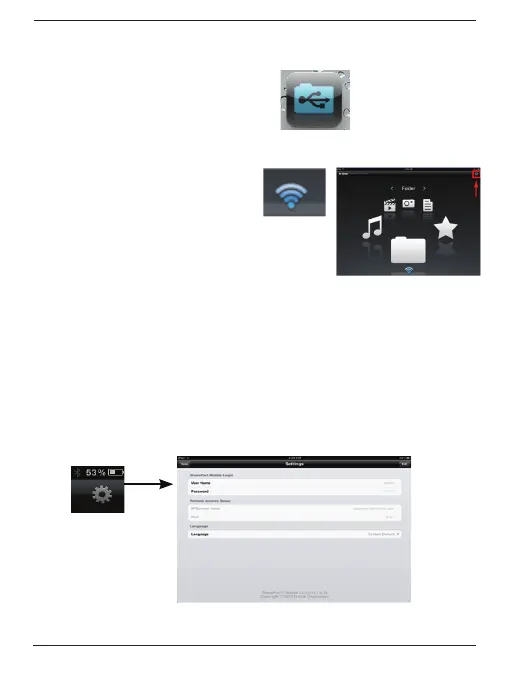

Using The SharePort Mobile App
1. Open the SharePort Mobile App.
2. Please wait for Wireless icon
on the bottom of the screen
to turn blue, then begin to
use.
3. Click on the Settings icon located on the right top corner of the
screen. Then, click Edit to enter your User Name and Password
(refer to the Create User section below). Once you nish,
click Done to continue. By default, User Name is “admin” and
Password is blank.
Note: If you set the password for the “admin” in your DIR-506L, you
need to enter the password.
Settings

D-Link DIR-506L Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN (RJ-45) ports	1
USB version	2.0
Rack mounting	No
DHCP client	-
Antennas quantity	2
Security algorithms	WEP, WPA, WPA2, WPS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	22.3 mm
Width	102.9 mm
Height	79.8 mm
Weight	125 g
