D-Link DIR-612 User Manual

39D-Link DIR-612 User Manual
Section 3 - Conguration

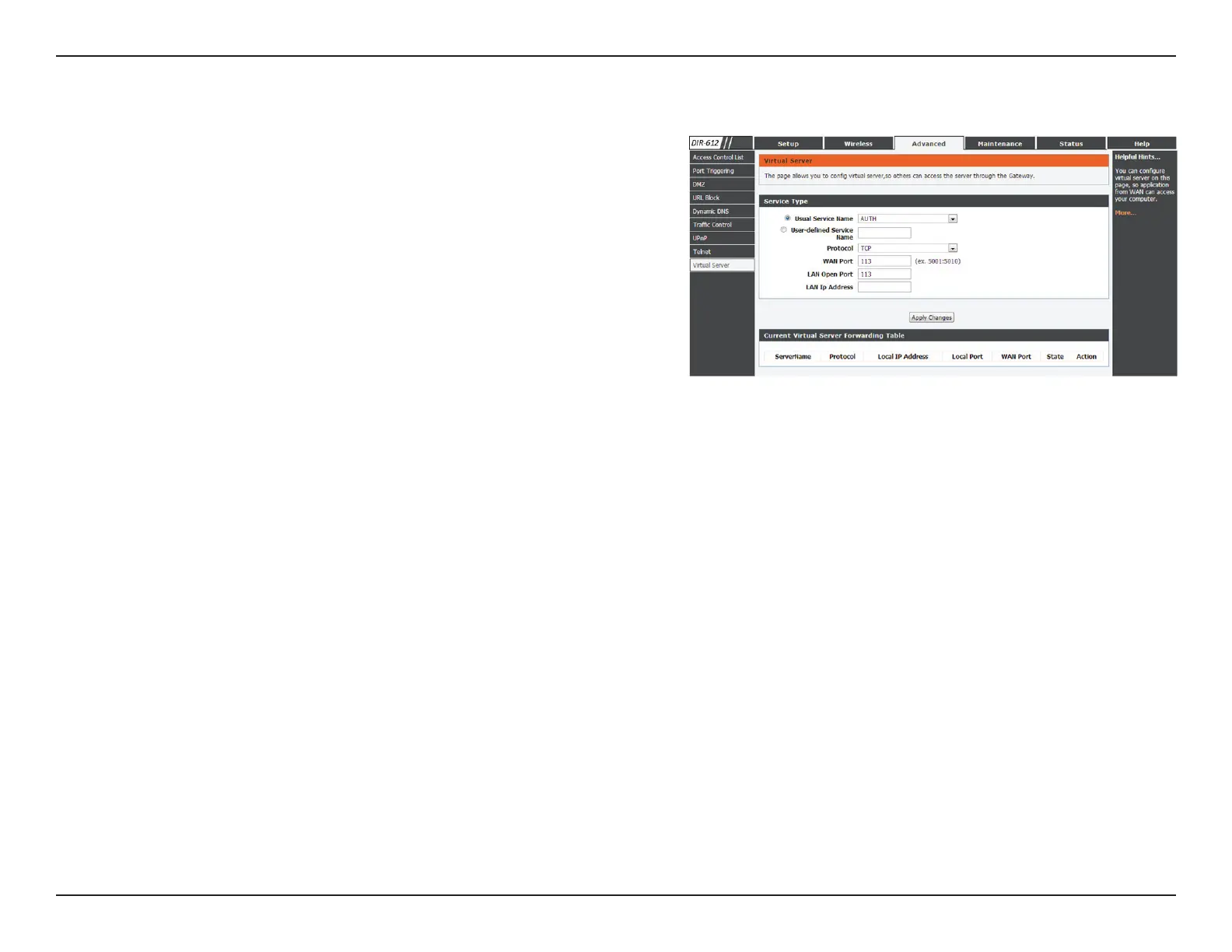

The Virtual Server page allows you to open a single port. If you would like to open a range of ports, refer to the next page.
Select an application from the drop-down menu or
type a name in the next eld.
Enter a service name.
Select TCP or UDP from the Protocol drop-down menu.
Enter the WAN port number.
Enter the LAN Open port number.
Enter the IP address of the computer on your local
network that you want to allow the incoming service to.
Usual Service
Name:
User-dened
Service Name:
Protocol:
WAN Port:
LAN Open Port:
LAN IP Address:
Click the Apply Changes button to save any changes made. The virtual server will then be added to the Current Virtual Server
Forwarding Table below. To delete or disable a virtual server, click the Delete or Disable buttons in the Action eld of the
virtual server in the table.

D-Link DIR-612 Specifications

Wireless Signal Rates

IEEE 802.11n maximum signal rate	300 Mbps
IEEE 802.11g signal rates	54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 11 Mbps, 9 Mbps, 6 Mbps

Wireless Frequency Range

Wireless frequency range (Europe)	2.4 GHz to 2.4835 GHz

Operating Environment

Operating temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage temperature	-20 °C to 65 °C (-4 °F to 149 °F)
Humidity range	10% to 95% (non-condensing)

Weight and Dimensions

Dimensions	175 x 150 x 31 mm (6.89 x 5.9 x 1.22 inches)
