Section 5 - Connecting to a Wireless Network

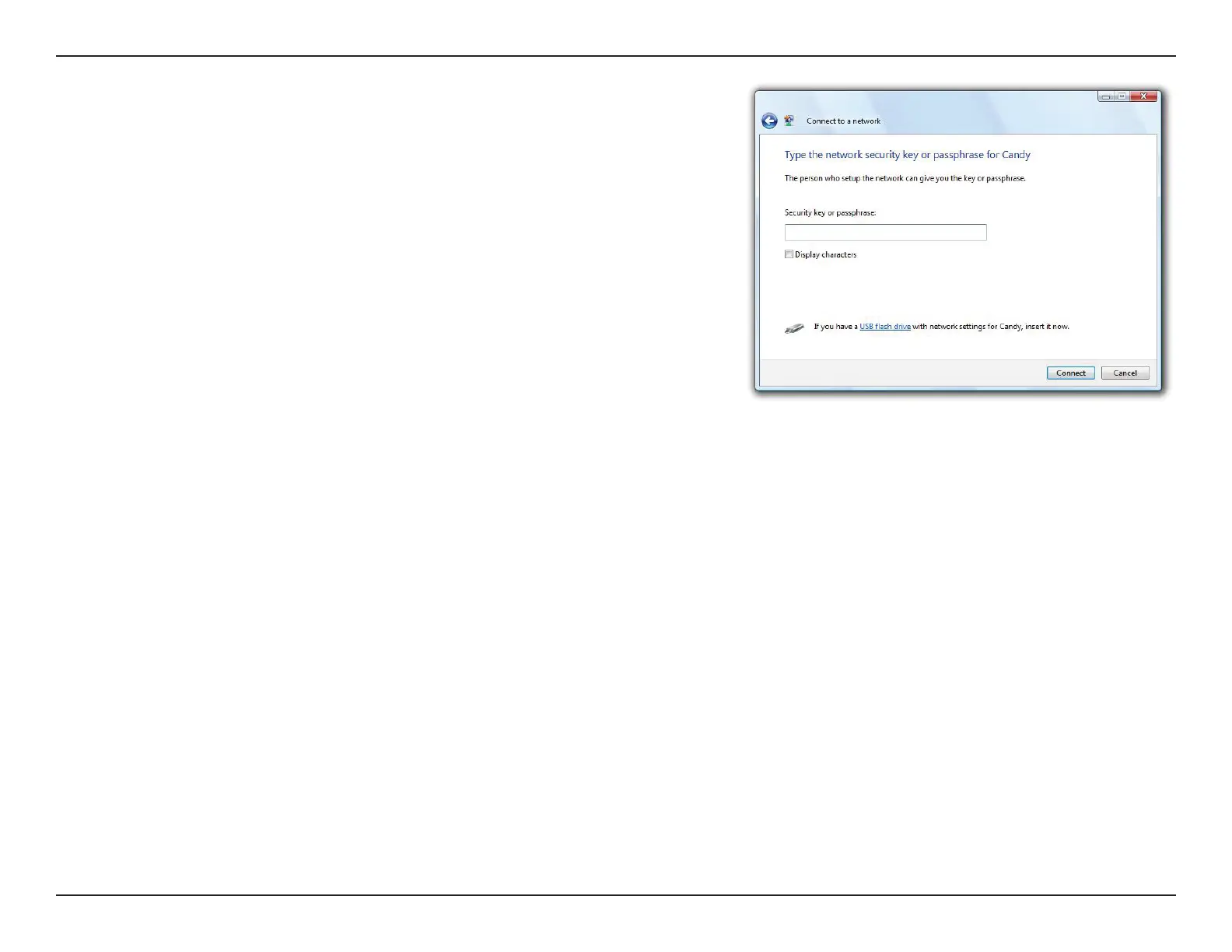

3. Enter the same security key or passphrase that is on your router and
click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.

D-Link DIR-612 Specifications

Wireless Signal Rates

IEEE 802.11n maximum signal rate	300 Mbps
IEEE 802.11g signal rates	54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 11 Mbps, 9 Mbps, 6 Mbps

Wireless Frequency Range

Wireless frequency range (Europe)	2.4 GHz to 2.4835 GHz

Operating Environment

Operating temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage temperature	-20 °C to 65 °C (-4 °F to 149 °F)
Humidity range	10% to 95% (non-condensing)

Weight and Dimensions

Dimensions	175 x 150 x 31 mm (6.89 x 5.9 x 1.22 inches)
