D-Link DIR-826L User Manual

38D-Link DIR-826L User Manual
Section 3 - Conguration

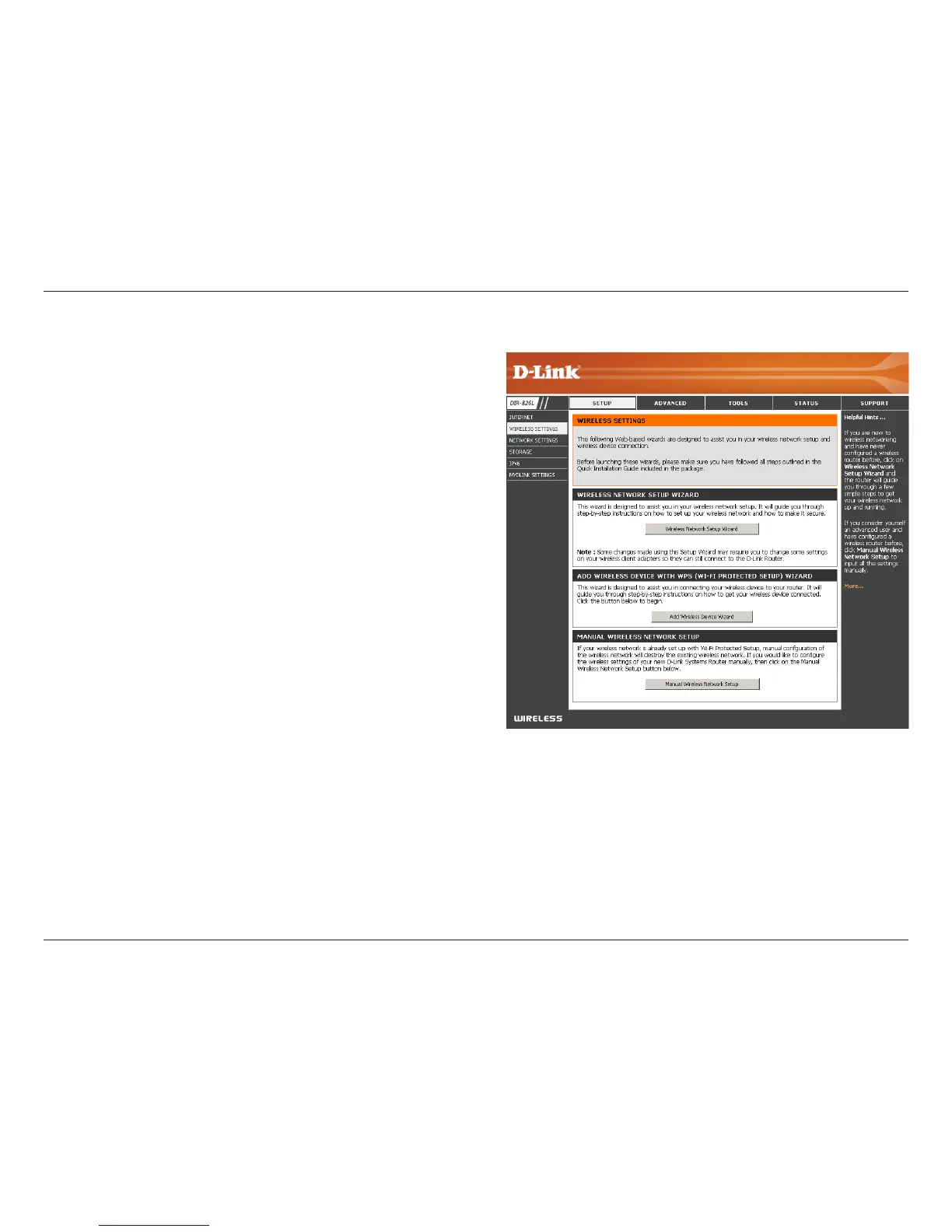

Wireless Settings
If you want to congure the wireless settings on your router using
the wizard, click Wireless Security Setup Wizard and refer to
page 42.
Click Add Wireless Device with WPS if you want to add a wireless
device using Wi-Fi Protected Setup (WPS) and refer to page 44.
If you want to manually congure the wireless settings on your
router click Manual Wireless Network Setup and refer to the
next page.

D-Link DIR-826L Specifications

General

Rack mounting	-
xDSL connection	No
Power supply type	DC 12V
Dimensions (WxDxH)	111 x 92.96 x 145 mm
USB ports quantity	1
Maximum data transfer rate	600 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Certification	FCC Class B CE Class B C-Tick Wi-Fi Wi-Fi Protected System (WPS) Wi-Fi Multimedia (WMM) IPv6 Ready Compatible with Windows 7
LED indicators	Power, WAN, WLAN
Antennas quantity	2
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Output voltage	12 V

Weight and Dimensions

Weight	330 g
