D-Link DIR-826L User Manual

42D-Link DIR-826L User Manual
Section 4 - Security

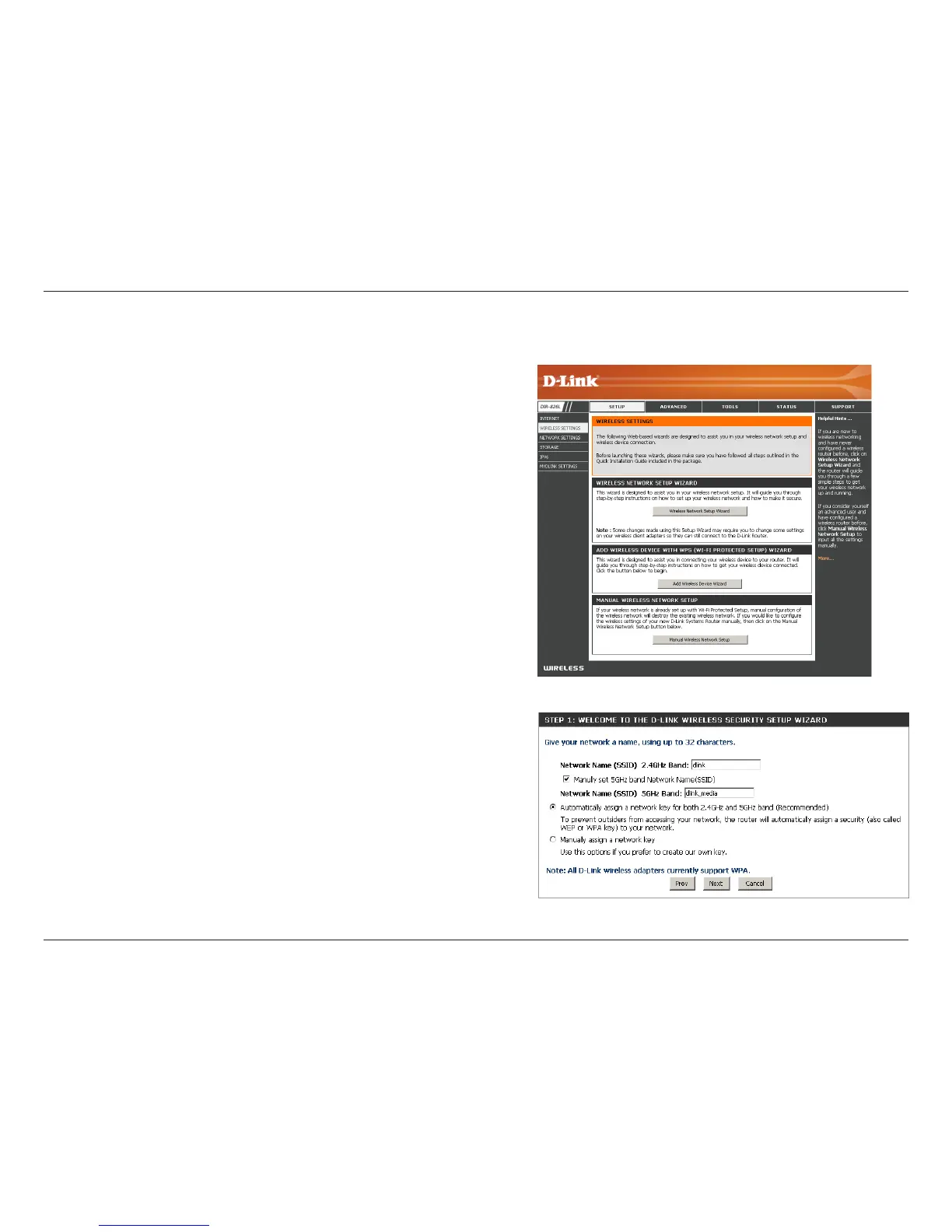

Wireless Security Setup Wizard
To run the security wizard, click on Setup at the top and then click
Wireless Network Setup Wizard.
Type your desired wireless network name (SSID).
Automatically: Select this option to automatically generate
the router’s network key and click Next.
Manually: Select this option to manually enter your network
key and click Next.

D-Link DIR-826L Specifications

General

Rack mounting	-
xDSL connection	No
Power supply type	DC 12V
Dimensions (WxDxH)	111 x 92.96 x 145 mm
USB ports quantity	1
Maximum data transfer rate	600 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Certification	FCC Class B CE Class B C-Tick Wi-Fi Wi-Fi Protected System (WPS) Wi-Fi Multimedia (WMM) IPv6 Ready Compatible with Windows 7
LED indicators	Power, WAN, WLAN
Antennas quantity	2
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Output voltage	12 V

Weight and Dimensions

Weight	330 g
