D-Link DIR-826L User Manual

83D-Link DIR-826L User Manual
Section 3 - Conguration
Enter a name for your route.
Enter the IP address of packets that will take this
route.
Enter the netmask of the route, please note
that the octets must match your destination IP
address.
Enter your next hop gateway to be taken if this
route is used.
The route metric is a value from 1 to 16 that
indicates the cost of using this route. A value 1 is
the lowest cost and 15 is the highest cost.
Select the interface that the IP packet must use to
transit out of the router when this route is used.
Name:
Destination IP:
Netmask:
Gateway:
Metric:
Interface:

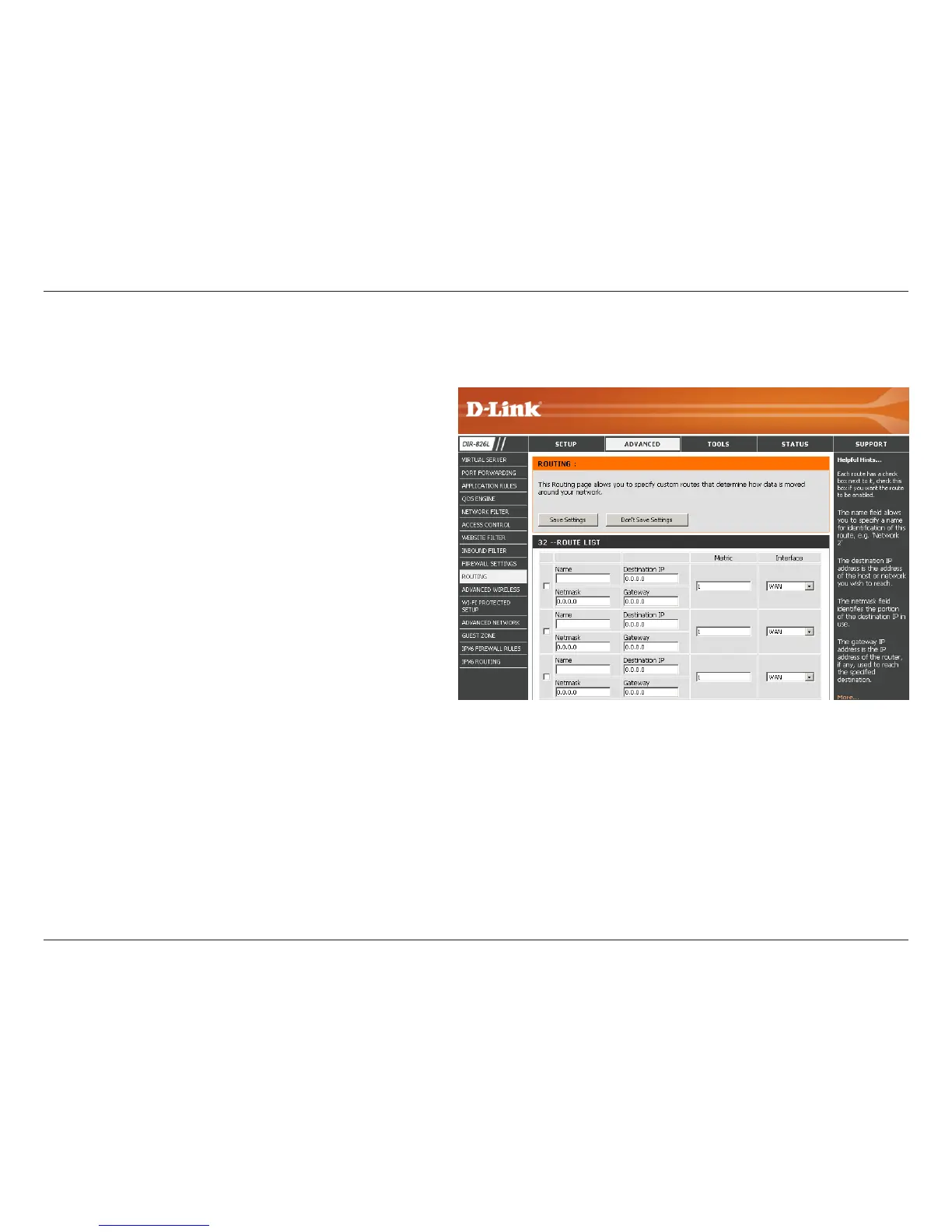

Routing
The Routing option is an advanced method of customizing specic routes of data through your network.

D-Link DIR-826L Specifications

General

Rack mounting	-
xDSL connection	No
Power supply type	DC 12V
Dimensions (WxDxH)	111 x 92.96 x 145 mm
USB ports quantity	1
Maximum data transfer rate	600 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Certification	FCC Class B CE Class B C-Tick Wi-Fi Wi-Fi Protected System (WPS) Wi-Fi Multimedia (WMM) IPv6 Ready Compatible with Windows 7
LED indicators	Power, WAN, WLAN
Antennas quantity	2
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Output voltage	12 V

Weight and Dimensions

Weight	330 g
