D-Link DIR-826L User Manual

87D-Link DIR-826L User Manual

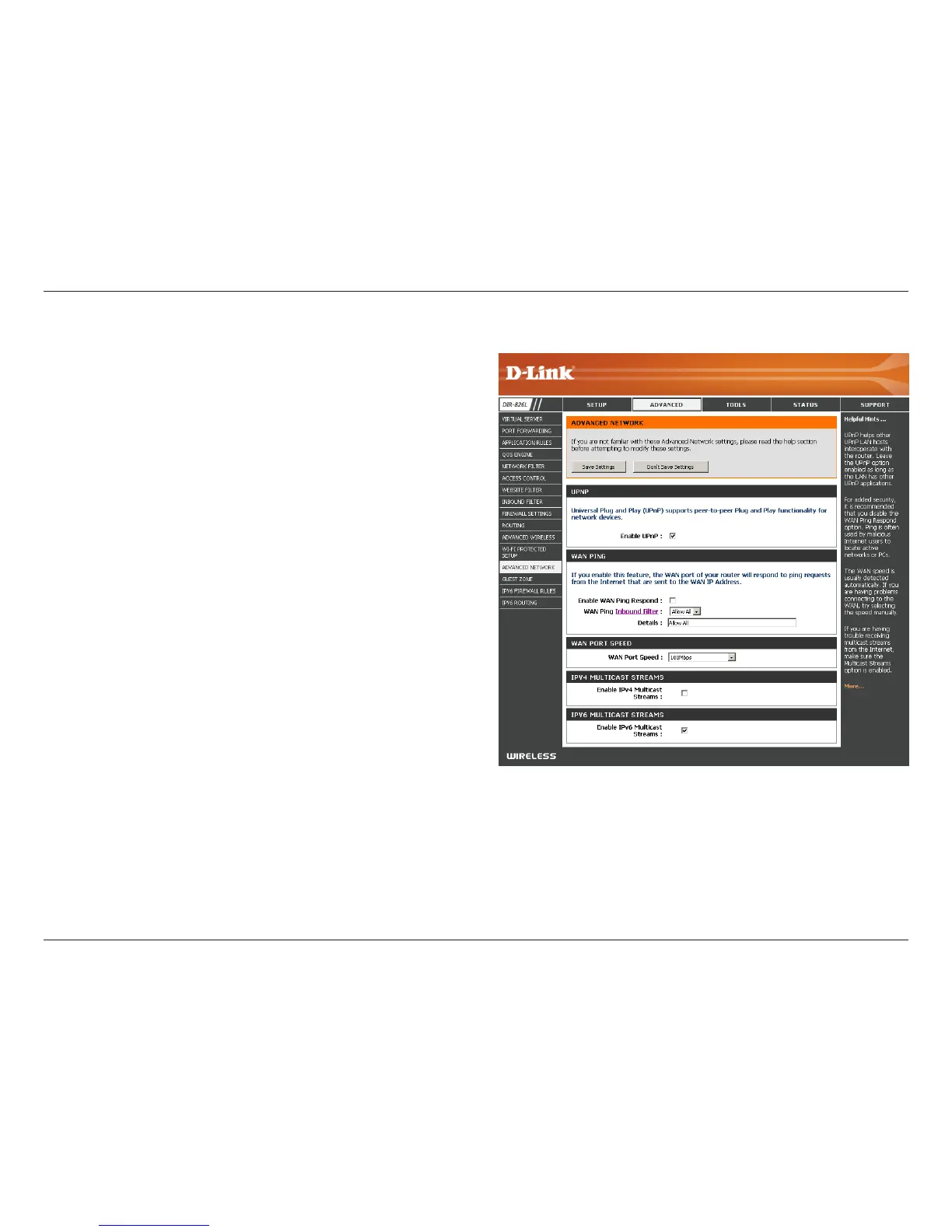

Section 3 - Conguration
To use the Universal Plug and Play (UPnP
™
) feature click on
Enabled. UPnP provides compatibility with networking
equipment, software and peripherals.
Checking the box will allow the DIR-826L to respond
to pings. Unchecking the box may provide some extra
security from hackers.
Select from the drop-down menu if you would like to apply
the Inbound Filter to the WAN ping. Refer to the Inbound
Filters section for more information.
You may set the port speed of the Internet port to 10Mbps,
100Mbps, 1000Mbps, or Auto (recommended).
Check the box to allow multicast trac to pass through
the router from the Internet (IPv4).
Check the box to allow multicast trac to pass through
the router from the Internet (IPv6).
Enable UPnP:
WAN Ping:
WAN Ping Inbound
Filter:
WAN Port Speed:
Enable IPV4
Multicast Streams:
Enable IPV6
Multicast Streams:
Advanced Network Settings

D-Link DIR-826L Specifications

General

Rack mounting	-
xDSL connection	No
Power supply type	DC 12V
Dimensions (WxDxH)	111 x 92.96 x 145 mm
USB ports quantity	1
Maximum data transfer rate	600 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Certification	FCC Class B CE Class B C-Tick Wi-Fi Wi-Fi Protected System (WPS) Wi-Fi Multimedia (WMM) IPv6 Ready Compatible with Windows 7
LED indicators	Power, WAN, WLAN
Antennas quantity	2
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Output voltage	12 V

Weight and Dimensions

Weight	330 g
