D-Link DSL-2520U Quick Installation Guide

DSL-2520U Quick Installation Guide
Configuring Connection to the Internet
!
You should configure your WAN connection in accordance with data
provided by your Internet service provider (ISP). Make sure that you
have obtained all necessary information prior to configuring your WAN
connection. Otherwise contact your ISP.
1. Go to the Net / WAN page and click the Add button.
2. From the Connection Type drop-down list, select the needed value.
3. From the Port drop-down list, select the DSL(new) value.
4. Specify a name for your connection (any name for easier identification) in
the Name field.

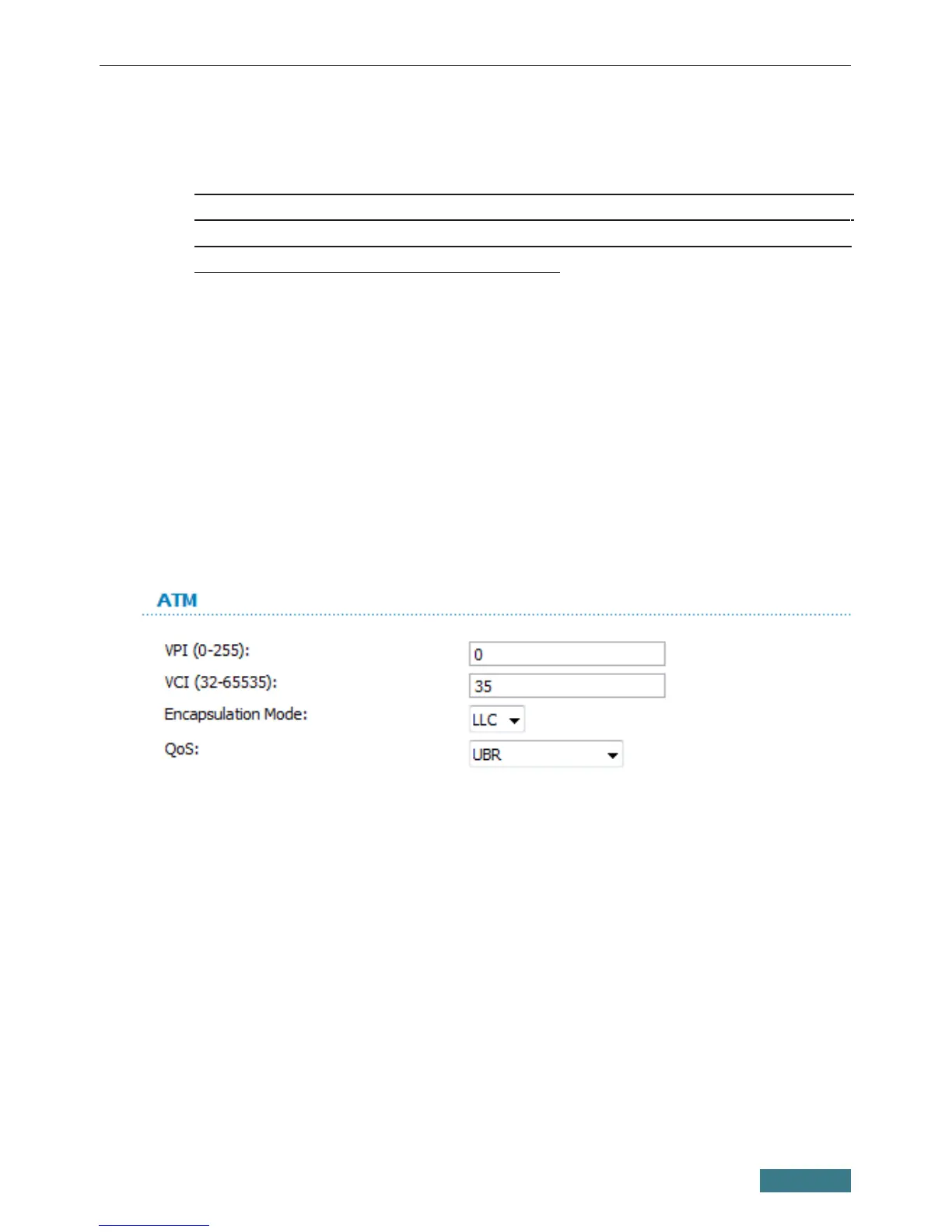

5. In the ATM section, specify the VPI and VCI in the relevant fields, and
then select a method of encapsulation from the Encapsulation Mode
drop-down list.
11

D-Link DSL-2520U Specifications

Data Transfer Rates

ADSL full rate downstream	up to 8 Mbps
ADSL full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL2 full rate downstream	up to 24 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface	RJ-45 port for 10/100BASE-T Ethernet
USB interface	USB port Type B connector, USB 1.1 Specification
