D-Link DSL-2740B User Manual

Section 1 - Product Overview
D-Link DSL-2740B User Manual
7

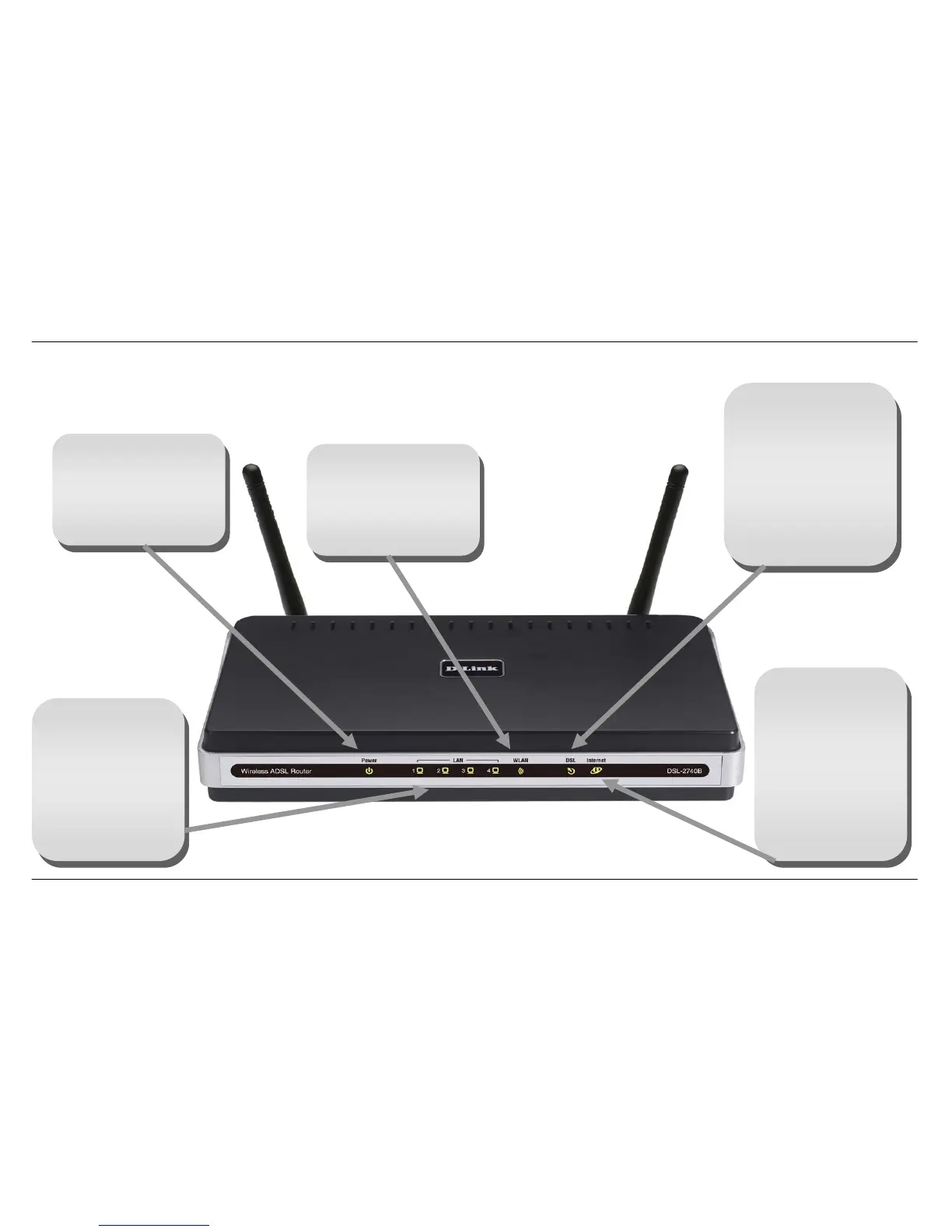

Hardware Overview
LEDs
Internet
Steady green light
indicates a
successful Internet
connection. Steady
red light indicates
failed Internet
connection. Dark if
no WAN protocol is
configured.
DSL
Steady green light
indicates a valid ADSL
connection. This will
light after the ADSL
negotiation process
has been settled. A
blinking green light
indicates activity on the
WAN (ADSL) interface.
Power
Steady green light
indicates the unit is
powered on. When the
device is powered off
this remains dark.
LAN
WLAN
Steady green light
indicates a wireless
connection. A blinking
green light indicates
activity on the WLAN
A solid green light
indicates a valid link
on startup. These
lights blink when
there is activity
currently passing
through the Ethernet
port.

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
