DSL-2740U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Configuring via Web-based Interface

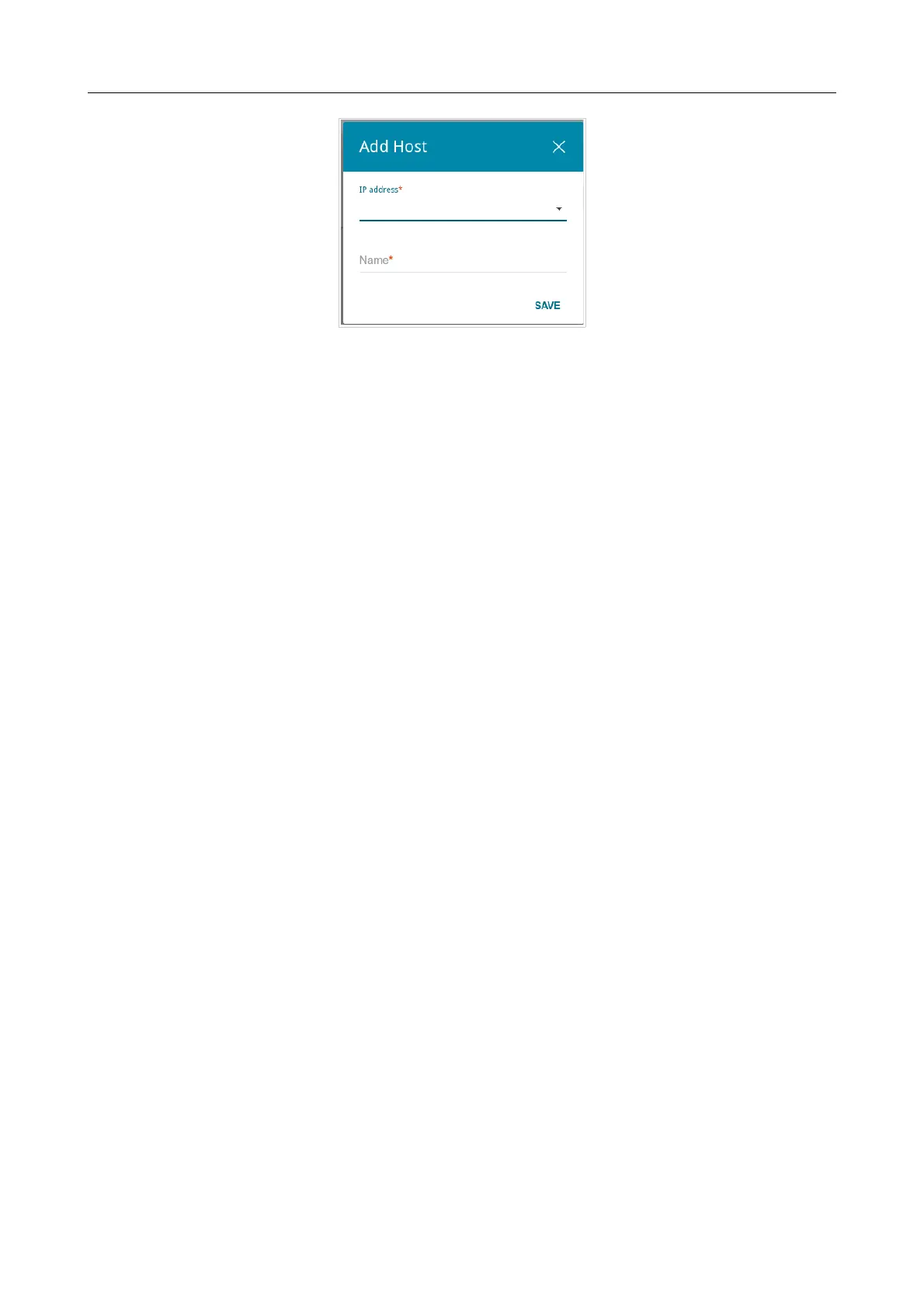

Figure 98. The window for adding a DNS record.
In the IP address field, specify a host from the internal or external network. You can choose a
device connected to the router's LAN at the moment. To do this, select the relevant IP address from
the drop-down list (the field will be filled in automatically). In the Name field, specify the domain
name to which the specified IP address will correspond. Click the SAVE button.
To edit an existing record, select the relevant line in the table. In the opened window, change the
needed parameters and click the SAVE button.
To remove a record, select the checkbox located to the left of the relevant line in the table and click
the DELETE button.
After completing the work with records, click the APPLY button.
Page 128 of 174
