Section 2 - Installation

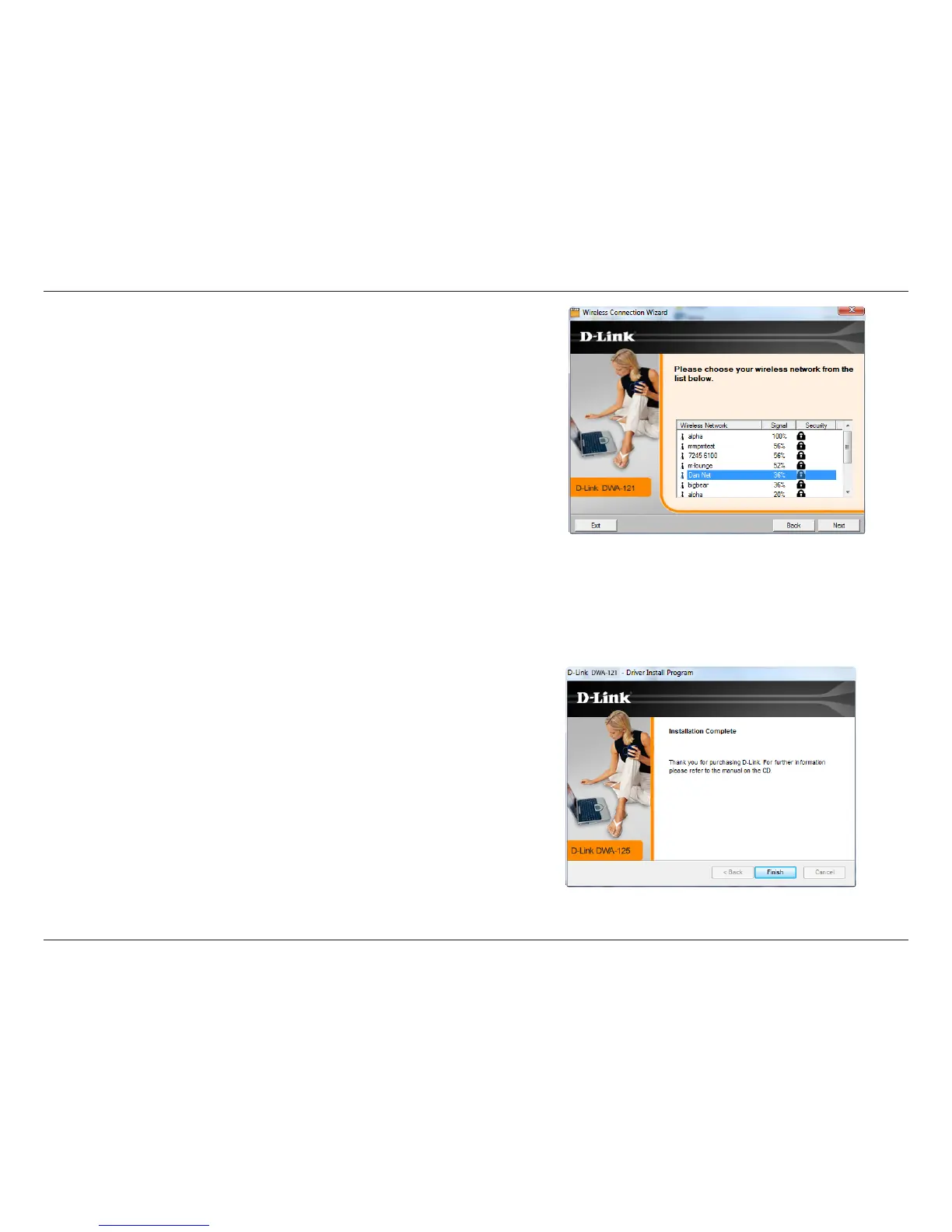

Click Finish to continue. If you are prompted to reboot your computer, select
Yes, I want to restart my computer now.
Click the Scan button to display a list of wireless networks (site survey). Click on
the network name (SSID) and click Next.

D-Link DWA-121 Specifications

Power

operating voltage	5 VDC +/- 5%
power consumption (transmit mode)	230 mA
power consumption (receive mode)	120 mA

Operating Environment

operating temperature	0 to 40 ºC (32 to 104 ˚F)
operating humidity	10% to 90% maximum (non-condensing)
frequency range	2.4GHz to 2.483GHz (North America)

Weight and Dimensions

dimensions	0.7” x .06” x 0.2”
weight	2.2 g
