D-Link DWA-121 User Manual

26D-Link DWA-121 User Manual
Section 3 - Conguration

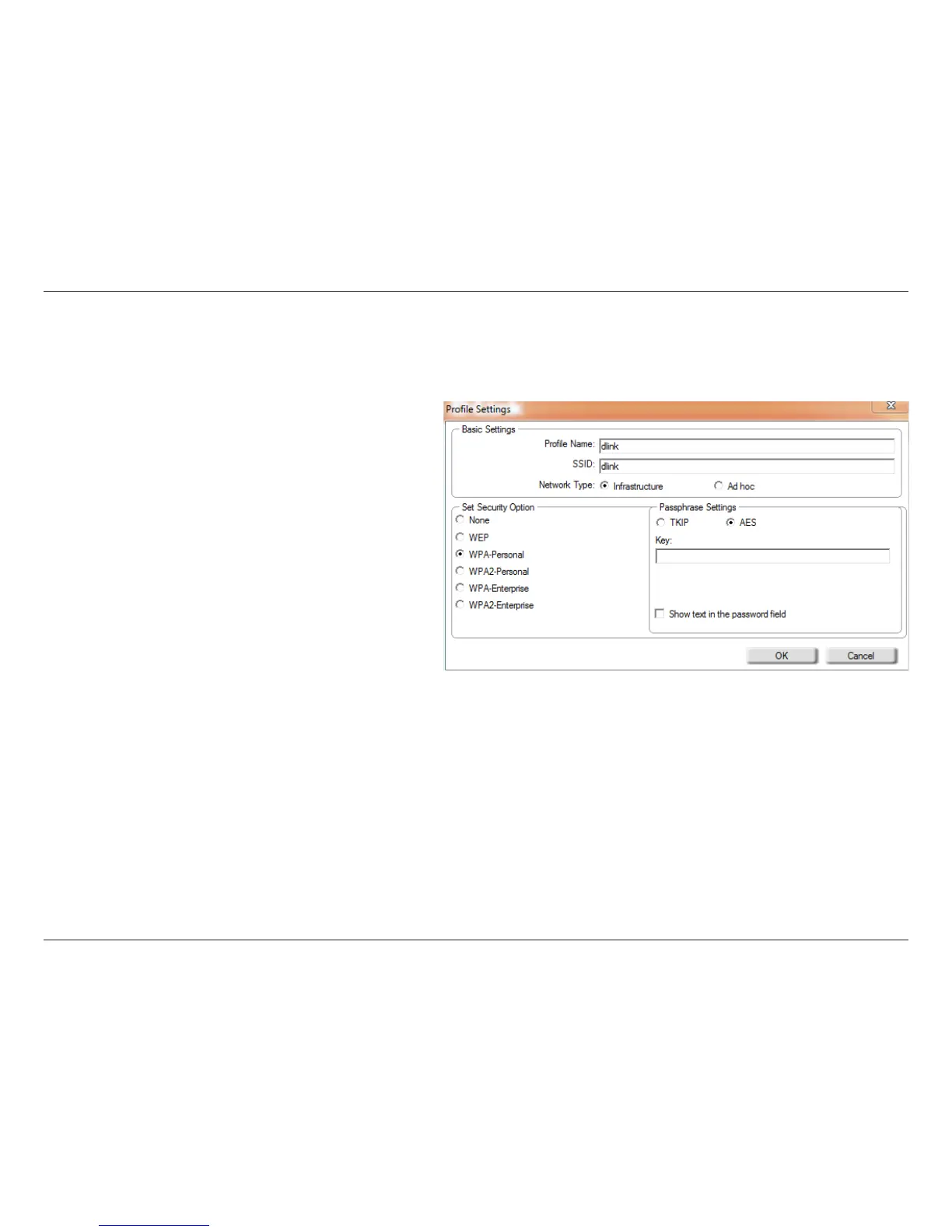

Add Prole
YoumayaddanewnetworkbyclickingtheNew button from the My Wireless Networks page.
Prole Name:
SSID:
Enter a name for your prole (e.g. Home, Oce, Coee Shop).
Enter the SSID of the wireless network.
Select the network type. If you are connecting to a wireless
router or access point, select Infrastructure. (Ad-hoc mode is
not supported)
Select the type of security used. Please refer to the Wireless
Security section for more information.
Click OK to save your settings.
Network Type:
Security Type:
OK Button:

D-Link DWA-121 Specifications

Power

operating voltage	5 VDC +/- 5%
power consumption (transmit mode)	230 mA
power consumption (receive mode)	120 mA

Operating Environment

operating temperature	0 to 40 ºC (32 to 104 ˚F)
operating humidity	10% to 90% maximum (non-condensing)
frequency range	2.4GHz to 2.483GHz (North America)

Weight and Dimensions

dimensions	0.7” x .06” x 0.2”
weight	2.2 g
