D-Link DWA-131 User Manual

18D-Link DWA-131 User Manual
Section 3 - Configuration
Wireless Networks
The SSID (Service Set Identifier) is the name
of the wireless network.
Displays the MAC address of the wireless
device.
Displays the Link Quality of the wireless
connection.
If there is a “lock” icon, this means the wireless
network is secure. You must know the encryption
key/security settings to connect.
Displays the channel of the wireless network.
Connect to a wireless network using Wi-Fi
Protected Setup. Refer to the next page.
Rescans for available wireless networks in your
area.
Highlight a wireless network and click the
Connect button. If the network is secure, a
pop-up window will appear. Enter the security
information to connect (refer to the Wireless
Security section for more information).
Select a wireless network profile from the
drop-down menu and click Activate to connect.
Allow up to 30 seconds to connect.
MAC:
SSID:
Channel:
Signal:
Security:
Refresh Button:
Connect Button:
Activate Button:

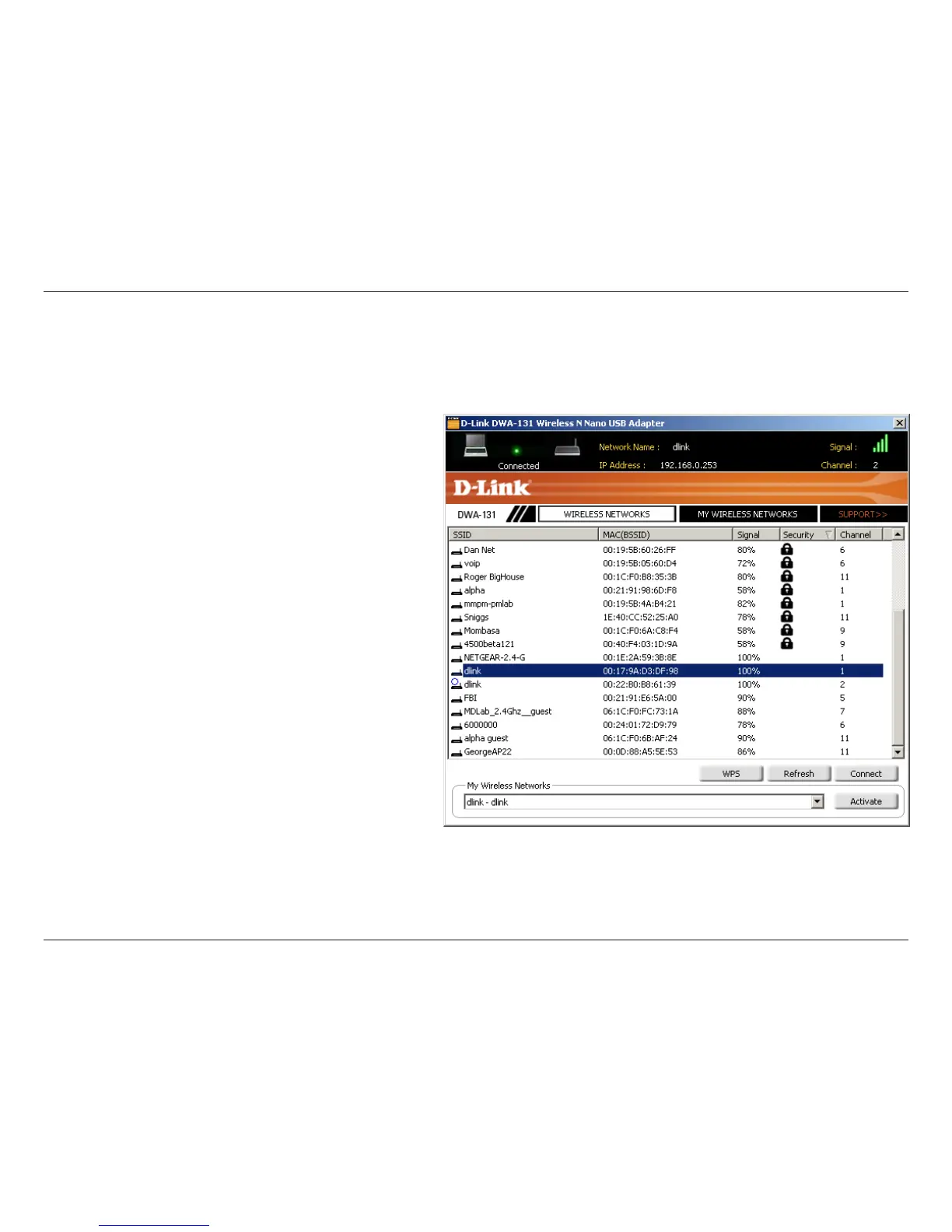

The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area. To connect
to a network, simply highlight the wireless network (SSID) and click Connect.
WPS Button:

D-Link DWA-131 Specifications

Wireless Standards

standard	IEEE 802.11n, IEEE 802.11g

Interface

bus type	USB 2.0 (1.1 compatible)

Frequency and Modulation

frequency range	2.4GHz to 2.4835GHz
modulation technology	Orthogonal Frequency Division Multiplexing (OFDM), Complementary Code Keying (CCK)

Power and Operating Conditions

operating voltage	5 VDC +/- 10%
operating temperature	32°F to 104°F (0°C to 40°C)
operating humidity	10% to 90% maximum (non-condensing)

Weight and Dimensions

dimensions	1.1” x 3.4” x 0.5”
weight	0.06 lbs (27.22g)
