Fan Status

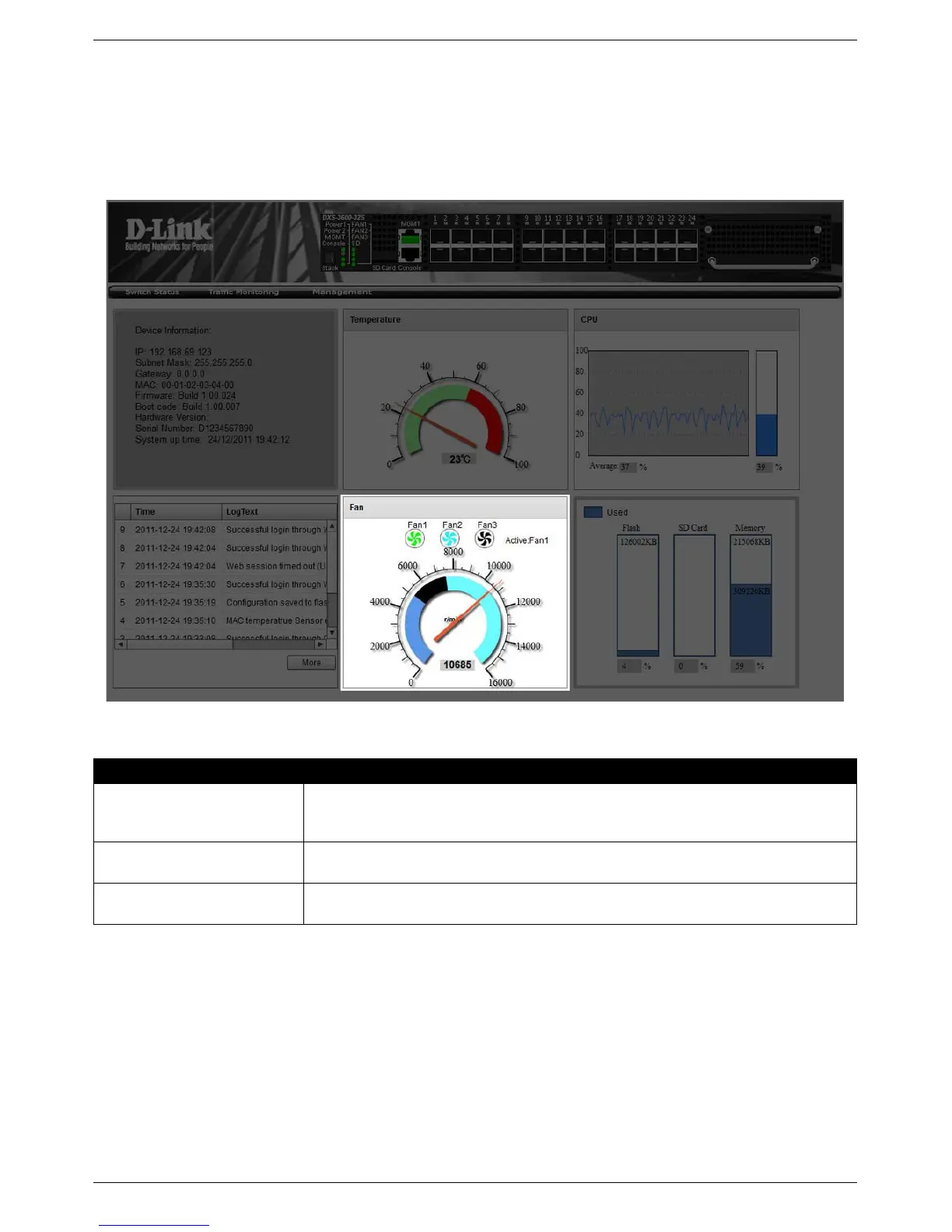

In the Fan section, the user can view a real-time display of the switch’s fan(s) status. A maximum of 3 fans can be
installed in this switch. In this real-time graphic, we observe the status and speed of the three fans installed.
In the Fan section, the following display parameters are available:
Parameter Description
Fan Number At the top of this graphic, the list of installed fans are displayed. After clicking on any
specific fan icon, the real-time RPM gauge of that fan will be displayed. Also after
clicking on a fan icon, the Active Fan display parameter will change accordingly.
RPM Graph In this graph (gauge display), we observe the RPM speed at which the selected fan
is working at.
RPM Reading At the bottom of the graphics, we observe the accurate real-time display of the RPM
value for a specific fan.
