17D-Link DIR-615 User Manual
Section 3 - Configuration

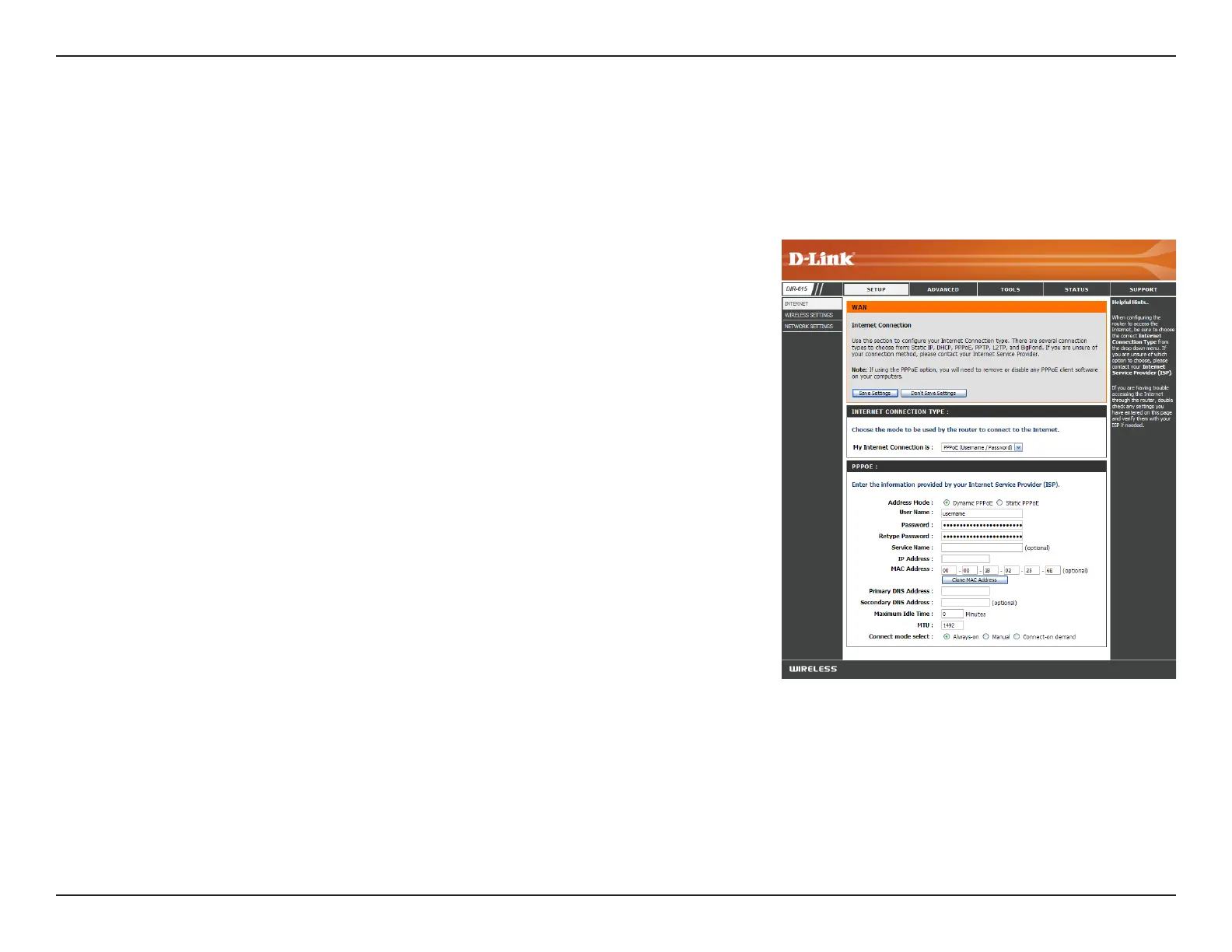

Select PPPoE (Username/Password) from the drop-down menu.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the next
box.
Enter the ISP Service Name (optional).
Enter the IP address (Static PPPoE only).
The default MAC Address is set to the Internet port’s physical interface
MAC address on the Broadband Router. It is not recommended that you
change the default MAC address unless required by your ISP. You can
use the Clone Your PC’s MAC Address button to replace the Internet
port’s MAC address with the MAC address of your Ethernet card.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature,
enable Auto-reconnect.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1492 is
the default MTU.
Select either Always-on, On-Demand, or Manual.
My Internet
Connection:
Address Mode:
User Name:
Password:
Service Name:
IP Address:
MAC Address:
DNS Addresses:
Maximum Idle Time:
MTU:
Connect Mode:
Internet Setup
PPPoE (DSL)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide
you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE
software from your computer. The software is no longer needed and will not work through a router.
