19D-Link DIR-615 User Manual
Section 3 - Configuration

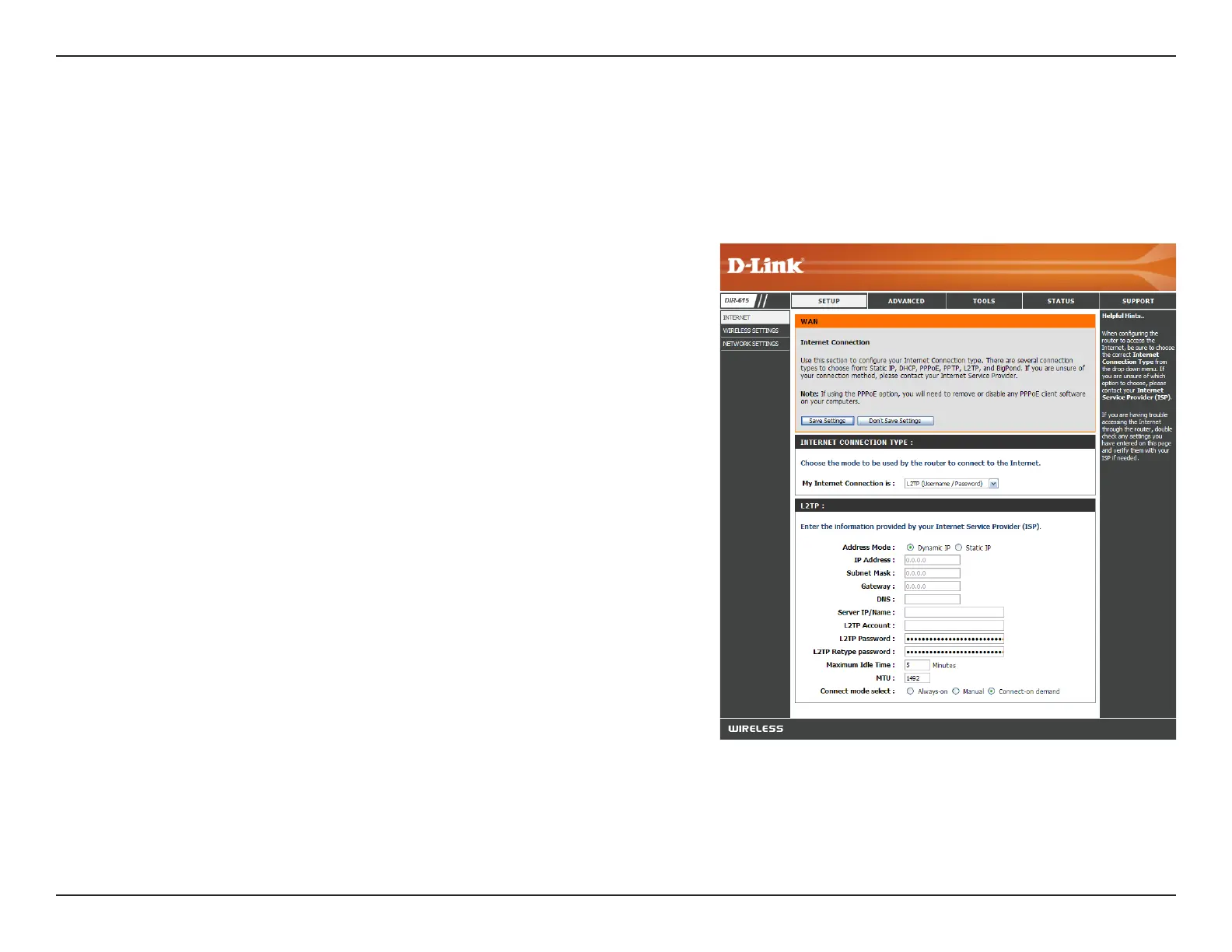

Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases,
select Dynamic.
Enter the L2TP IP address supplied by your ISP (Static only).
Enter the Subnet Mask supplied by your ISP (Static only).
Enter the Gateway IP Address provided by your ISP.
Enter the Primary and Secondary DNS Server Addresses (Static
L2TP only).
Enter the Server IP provided by your ISP (optional).
Enter your L2TP account (username).
Enter your L2TP password and then retype the password in the
next box.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1400 is
the default MTU.
Select either Always-on, On-Demand, or Manual.
Address Mode:
L2TP IP Address:
L2TP Subnet Mask:
L2TP Gateway:
DNS Servers:
L2TP Server IP:
Account:
Password:
Maximum Idle Time:
MTU:
Connect Mode:
Internet Setup
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username
and password. This option is typically used for DSL services.
