<REAR WHEEL REMOVAL>
① Set vehicle on main stand in upright
position on level ground.
② Loosen the rear brake adjuster nut.
③ Remove the muffler.
④ Loosen the rear wheel axle nut.
⑤ Remove the lock washer and the rear
wheel.
⑥ Install in the reverse order of removal.
REAR AXLE NUT TORQUE
: 6.0~8.0kgf
··
m
●Erect main stand and place vehicle
in up right position on level graund.
●Check the spring for damage or loss
of tension and the side stand
assembly for freedom of movement.
●Check the side stand ignition cut-
off system;
① Put the side stand up.
② Start the engine.
③ Lower the side stand. The engine
should stop as you put the side stand
down.
●If the side stand system does not
operate as described, inspect it in
the closest authorized repair center.
39
CAUTION
●If a torque wrench was not used for
installation, see your authorized
dealer as soon as possible to verify
proper assembly.
Improper assembly may lead to loss
of braking capacity.
REAR BRAKE ARM
MUFFLER
AXLE NUT
ADJUST NUT
SIDE STAND SPRING

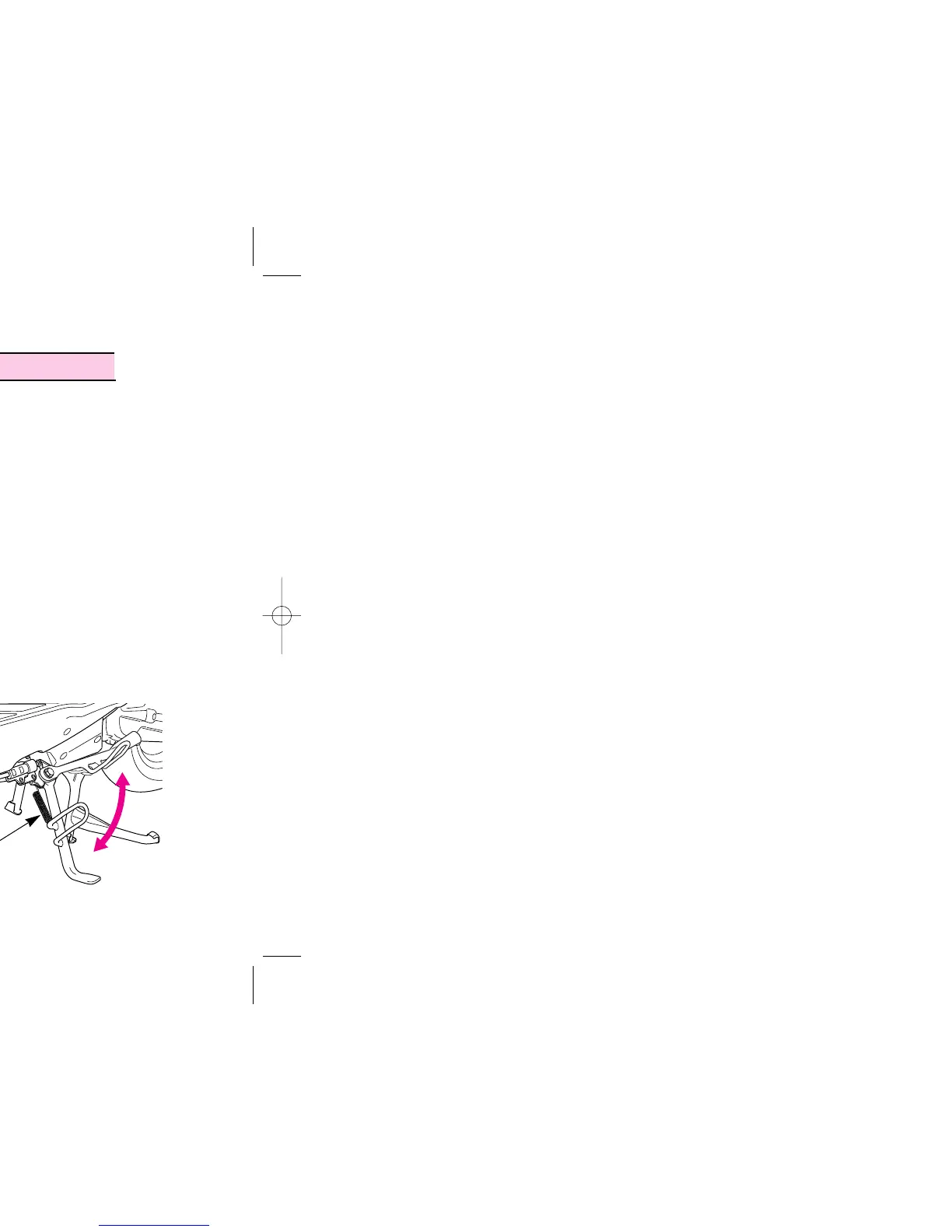

SIDE STAND INSPECTION
