Vehicle Systems Disassembly & Assembly
Primary Lift Cylinder
Remove & Install Primary Lift
Cylinder
Start By:
a. Remove carriage.
To prevent personal injury, move the control
levers backward and forward to release any pres-
sure in hydraulic system. Slowly loosen the cap of
the hydraulic tank to release any pressure in the
tank. Be cautious of hot hydraulic oil when any
lines are disconnected in the hydraulic system.

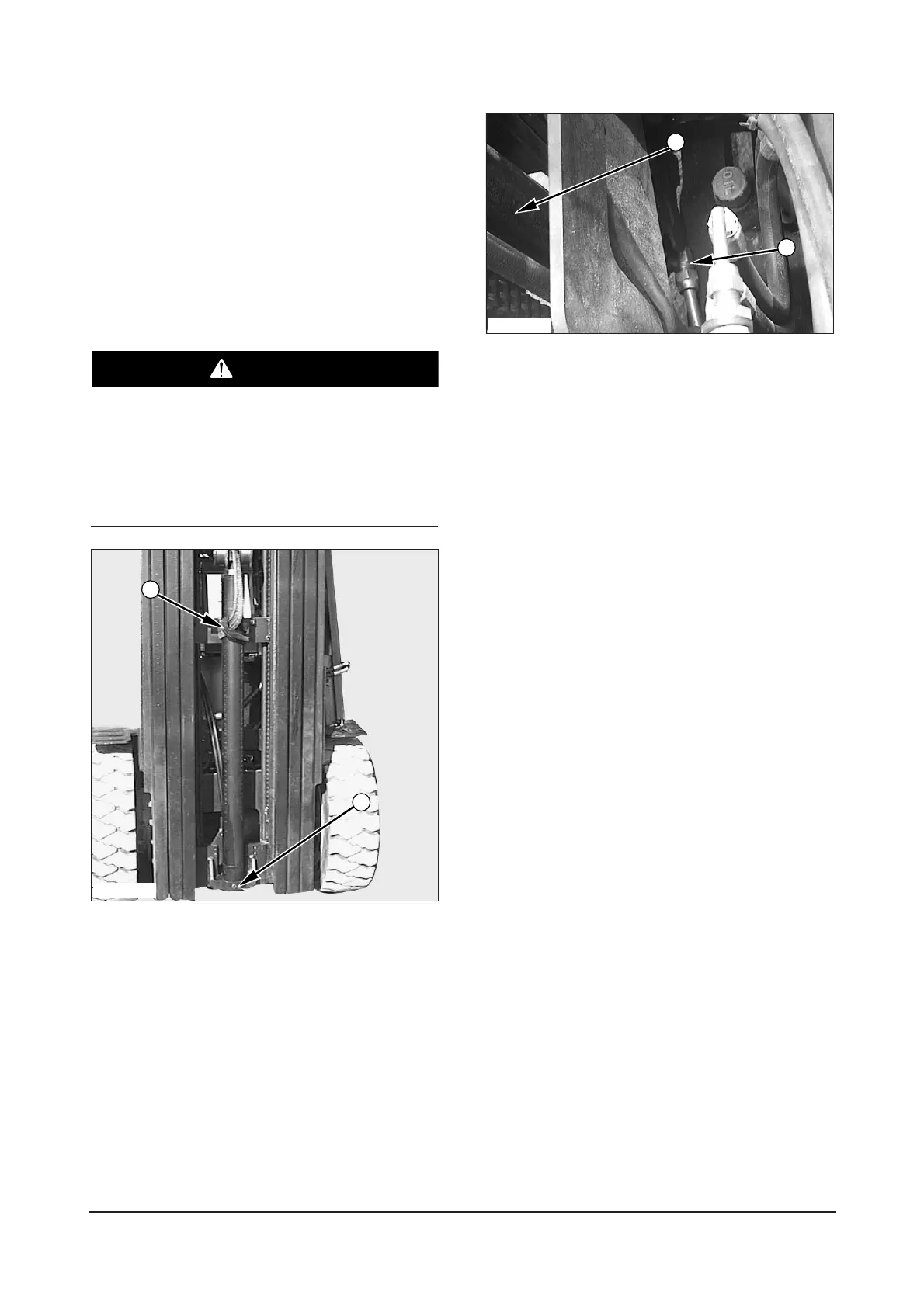

1.
Fasten nylon straps and hoist to the primary lift
cylinder.
2. Remove bolts (1).
3. Remove bolt (2).
4. Pull the cylinder out far enough to disconnect
elbow (3). Remove primary lift cylinder (4). Weight
is 27 kg (60 lb).
NOTE : The following steps are for the installation of
the primary lift cylinder.
5. Put primary lift cylinder (4) in position on the mast.
6. Connect elbow (3).
7. Install bolt (2), and bolts (1).
End By:
a. Install carriage.
To Next Page
