Vehicle Systems Disassembly & Assembly
6.

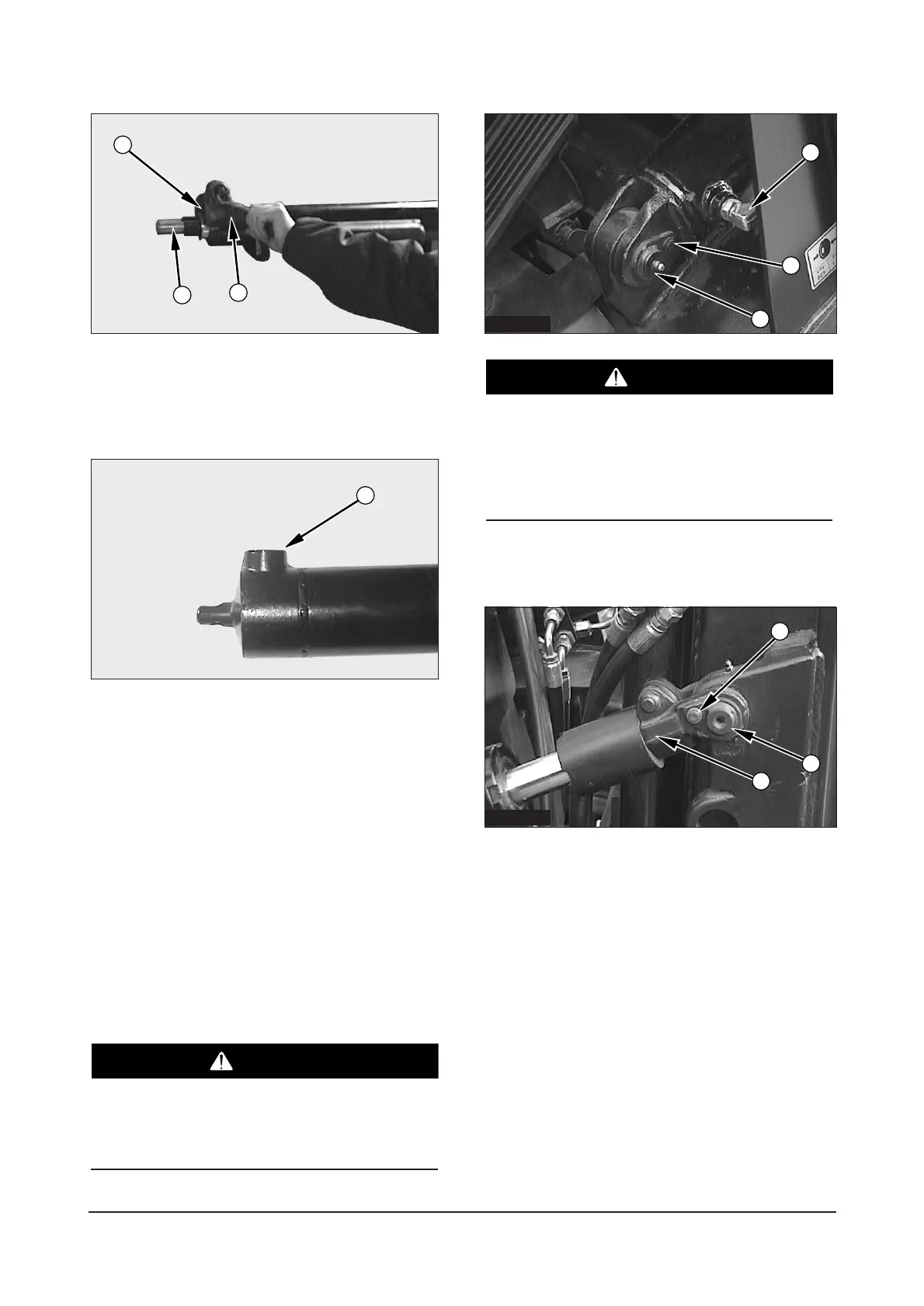

Install cylinder rod (12) in the cylinder body.
7. Install bearing (13) on the cylinder body. Use tool
(A) to tighten bearing.
8. Install flow protector valve (14) on the cylinder
body.
End By:
a. install primary lift cylinder.
Tilt Cylinders
Remove & Install Tilt Cylinders
NOTE : The procedure for removing and installing
the tilt cylinders is the same for both cylinders.
If both tilt cylinders are removed at the same time the
mast can fall. To avoid possible personal injury, make
sure the mast is securely held in place or supported
by a hoist before removing the tilt cylinders.
To prevent personal injury, move the control
levers backward and forward to release any pres-
sure in hydraulic system. Slowly loosen the cap of
the hydraulic tank to release any pressure in the
tank. Be cautious of hot hydraulic oil when any
lines are disconnected in the hydraulic system.
1.
Disconnect elbow (2). Remove retainer bolt (3)
and pin (1).
2. Remove retainer bolt (6) from pin (5). Remove pin
(5).
3. Remove tilt cylinder (4).
4. Install the tilt cylinder in the reverse order of
removal.
