Daewoo B20S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
1.

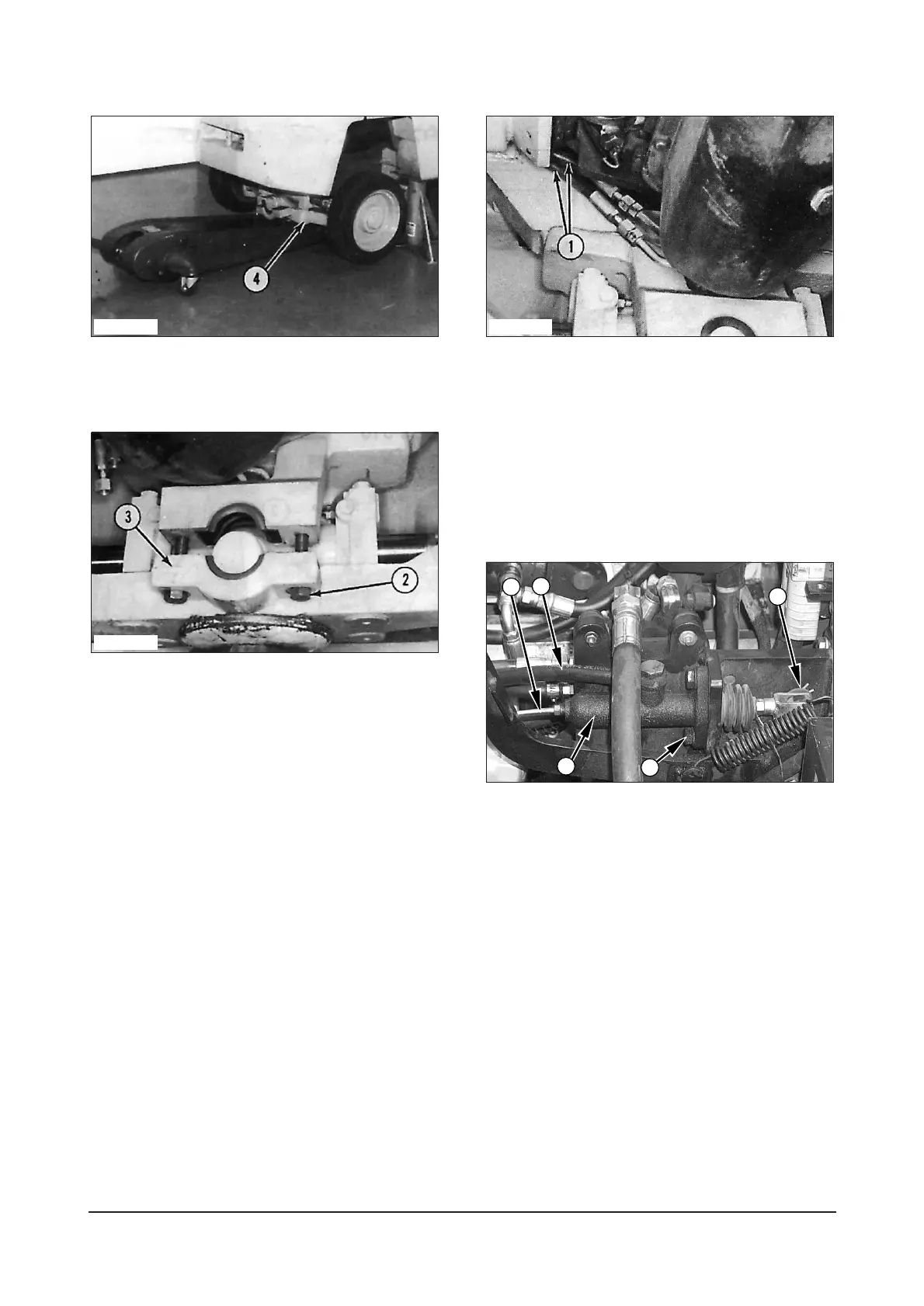

Put steer axle (4) in position with a floor jack.
NOTE: Install bolts (2) with approximately two bolt
threads into the mounting bosses.
2. Install bolts (2) and caps (3) in the mounting bosses.
3. Connect the hydraulic lines to the steering
cylinder.
4. Raise the steer axle with the floor jack, then
tighten bolts (2).
5. Connect hoses (1) to the steering lines.
Master Cylinder
Remove And Install Master Cylinder
1. Remove the rear floor plate from the lift truck. Drain
the brake fluid from the brake reservoir. Disconnect
hose (1) and line (4) from master cylinder (5).
2. Remove the cotter pin, washer and pin (3) from
the clevis and brake pedal.
3. Remove two bolts (2), the washers and master
cylinder (5) from the lift truck.
NOTE: The following steps are for installation of the
master cylinder.
4. Put the master cylinder in position, and install the
two washers and bolts (2).
5. Install pin (3) through the master cylinder clevis
and brake pedal. Install the washer and cotter pin.
60
IDCD324SIDCD321S
IDCD323S
1
5
2
3
4
