INTRODUCTION
15
Connections
Connections

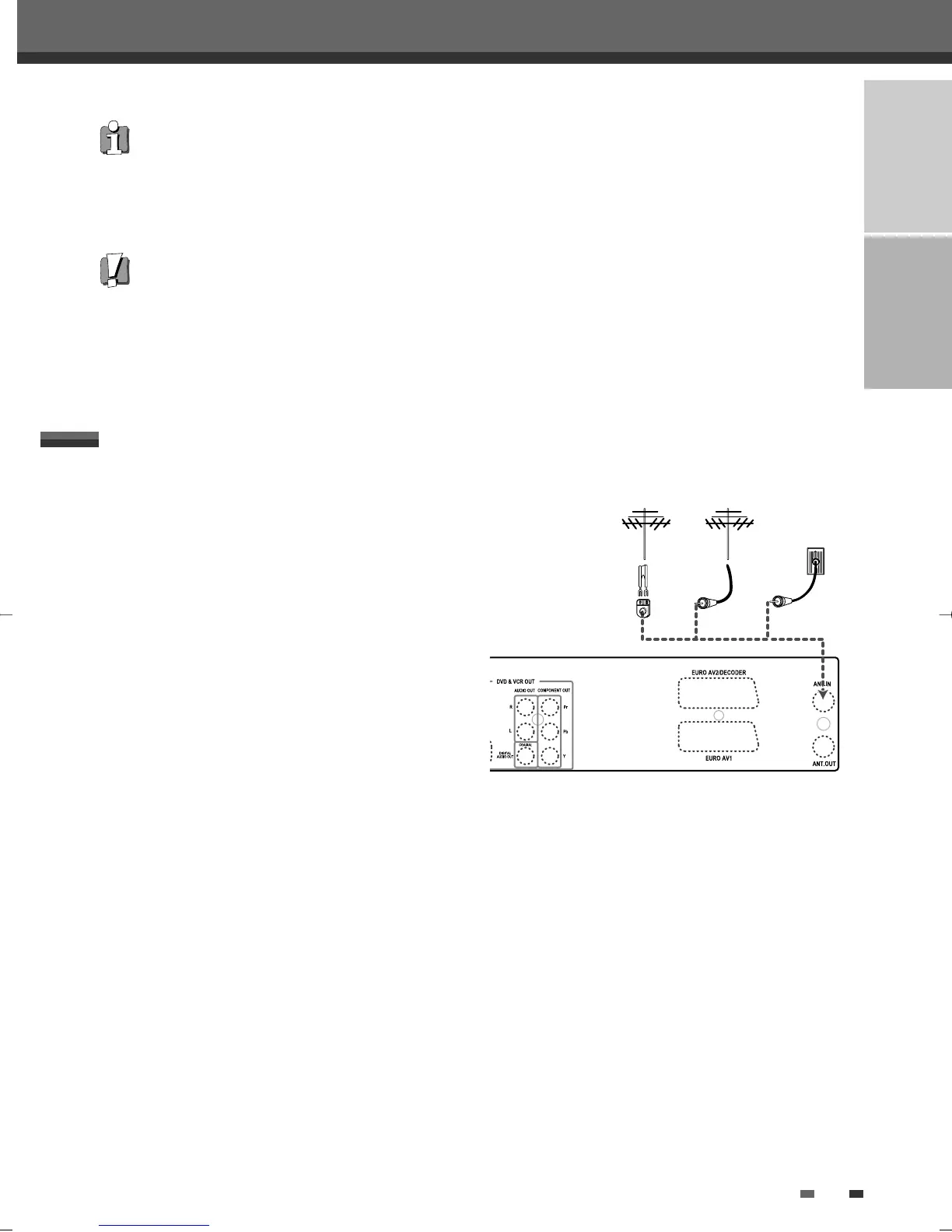

Connecting Antenna/Cable
1
Disconnect the antenna/cable from the rear of your
TV.
2
Connect this cable to the jack marked RF IN (FROM
ANT.) on the rear panel of the DVD Recorder+VCR.
If your cable wire is connected to your TV without a
converter or descrambler box, unscrew the wire from your TV and attach it to the RF IN (FROM ANT.) jack on the
rear panel of the DVD Recorder+VCR.
Use the supplied RF cable to connect between the DVD Recorder+VCR’s OUT (TO TV) jack and the antenna input
jack on your TV. With this connection, you can receive all midband, superband, and hyperband channels (all
cable channels).
• There are a variety of ways to connect the DVD Recorder+VCR to your TV and other equipment. Use only one of
the connections described below. Whichever TV connection you use will work with all input sources.
• Please refer to the manuals for your TV, VCR, stereo system, or other devices as necessary to make the best
connections.
• For better sound reproduction, connect the DVD Recorder+VCR’s AUDIO OUT jacks to the audio in jacks of your
amplifier, receiver, stereo, or audio/video equipment. See ‘Connecting an Amplifier/Receiver‘ on page 17.
Caution
• Make sure the DVD Recorder+VCR is connected directly to the TV, and the TV is set to the correct video input.
• Do not connect the DVD Recorder+VCR’s AUDIO OUT jack to the phono in jack (record deck) of your audio system.
• Do not connect the DVD Recorder+VCR via your VCR. The DVD image could be distorted by the copy protection
system.
Antenna
Antenna
Cable TV
Wall Jack
Flat Wire
(300ohm)
300/75ohm Adapter
(Not supplied)
OR OR
Rear of DVD Recorder+VCR
CONNECTIONS
DF-L71D1P-UA/TA 04.11.24 11:51 PM 페이지15
To Next Page
