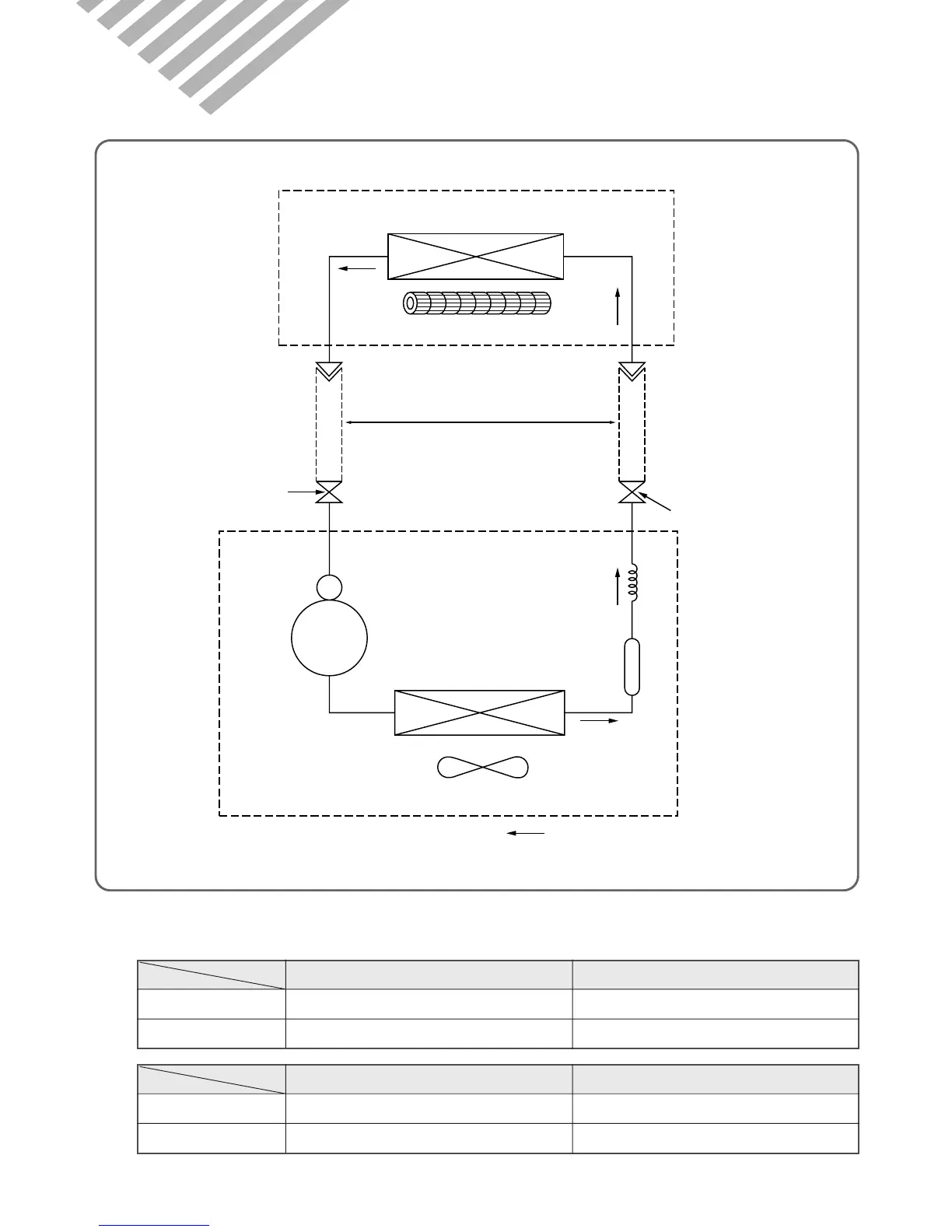

5. REFRIGERANT CYCLE
INDOOR UNIT
Evaporator
Cross flow fan
Connecting pipe
Capillary tube
Dryer
Condenser
Propeller fan
OUTDOOR UNIT
Refrigerant flow
Service valve
Service valve
Accumulator
Compressor
Note) If the pipe length exceeds the standard length, add 30g of refrigerant per extra meter.
DSB-090L DSB-120L
Capillary tube ID1.6Ø x OD3.2Ø x L600 ID1.6Ø x OD3.2Ø x L600
Charge Quantity 1170g 1300g
Model Name
Contents
DSA-100L DSA-120L
Capillary tube ID1.6Ø x OD3.2Ø x L600 ID1.6Ø x OD3.2Ø x L600
Charge Quantity 1150g 1200g
Model Name
Contents
