51
2
OUTDOOR UNIT
¡ DSB-090L/DSB-120L/DSA-100L/DSA-120L

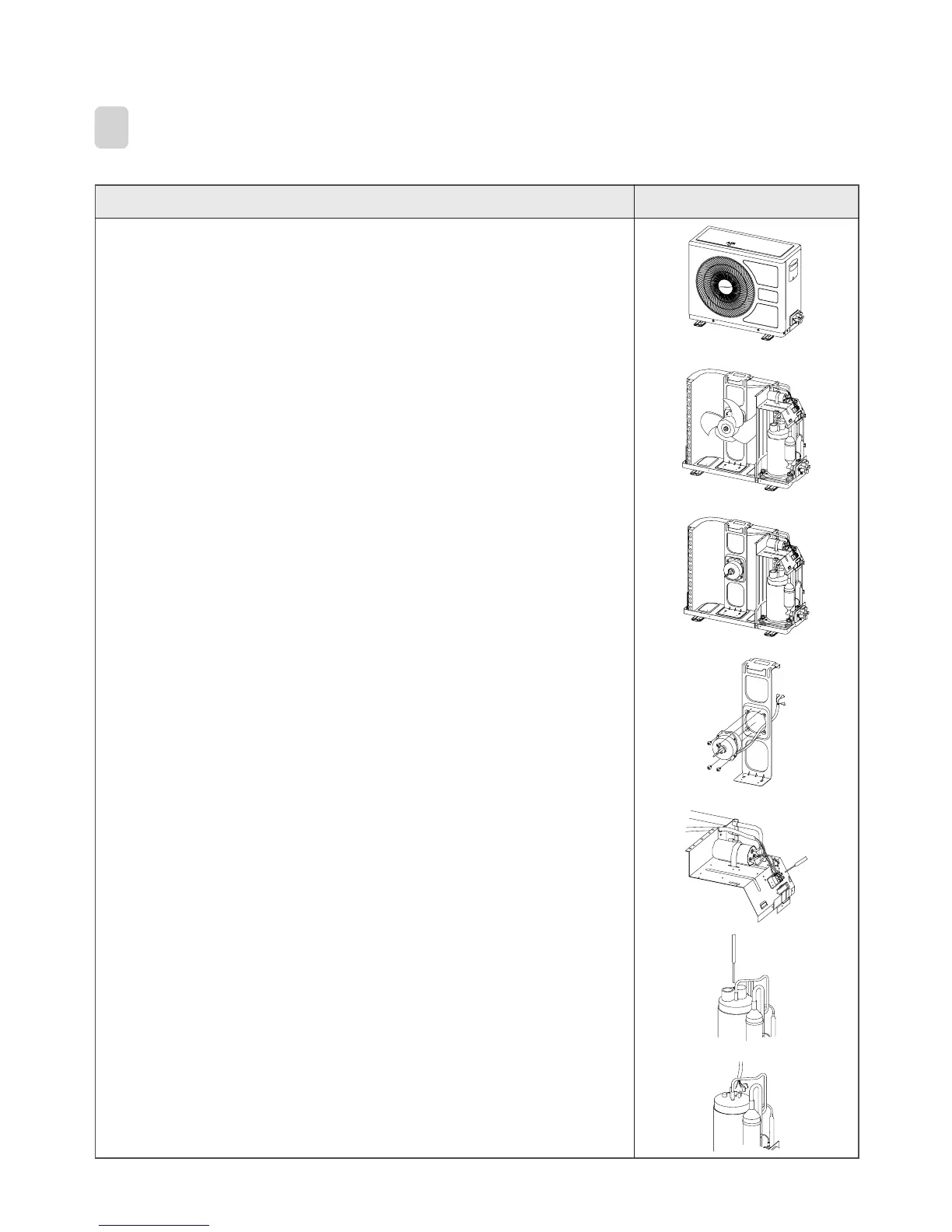

PROCEDURES PHOTOS
1.Stop the air conditioner and disconnect the wire from Indoor Unit to
Outdoor Unit.
2. Dissemble the case. (Fig 1~2)
!Remove the Top Panel. (Lossen two screw and remove six hook)
@ Remove the Front Cabinet. (Loon four screw and four hook)
# Remove the Side Cabinet and Back Cabinet. (Loosen eight screw)
3. Removing the Propeller Fan. (Fig 3)
! Loosen the Nut for fixing the propeller Fan.
@ Remove the Plain Washer.
# Remove the Propeller Fan.
4. Removing the Motor ODU. (Fig 4)
! Loosen four screw at Bracket Motor.
@ Disconnect the wire at Control Panel and remove Motor ODU.
5. Removing the Dual Capacitor. (Fig 5)
! Disconnect the wire at Control Panel.
@ Loosen a screw at Clamp Capacitor.
# Remove the Dual Capacitor.
6. Removing the Over load Protector. (Fig 6~7)
! Loosen a Hex Nut at Terminal Cover.
@ Remove the Terminal Cover.
# Remove the wire at Over load Protector.
$ Remove the Over load Protector.
Fig 1
Fig 2
Fig 3
Fig 5
Fig 4
Fig 6
Fig 7
