Daewoo DSB-120L User Manual
4
of 1
of 1 rating
62 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
23
2
1
3
I.D.C
EXPORT
DOMESTIC
SR
SWING
MOTOR
ROOM AIR
SENSOR
Remote Controller
TRANS-
FORMER
K1
COMP.
RELAY
TRIAC
OVERLOAD
PRO-
TECTOR
COMPRESSOR
OUTDOOR UNIT
FAN MOTOR
TERMINAL
BLOCK
N
L
INDOOR COIL
SENSOR
Display Part
Control Part
Signal Receiver
FMC
CMC
Y
L
1
Indoor Unit
Fan Motor
Y
L
1
N
L

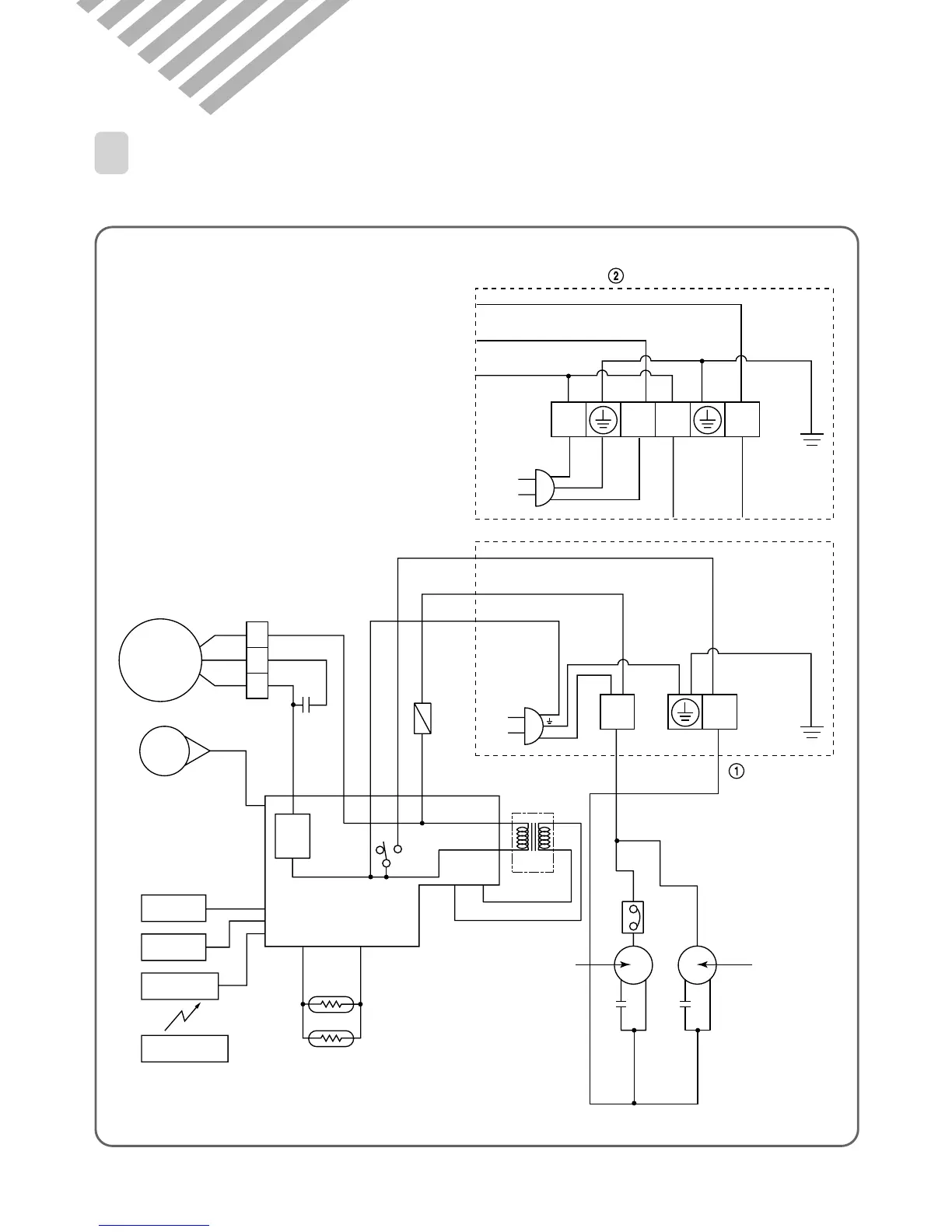

7. ELECTRIC CIRCUIT DIAGRAM
¡
DSB-090L/DSB-120L/DSA-100L/DSA-120L
1
ELECTRIC CIRCUIT DIAGRAM
23
25
Table of Contents
Table of Contents
2
Specifications
3
Outline and Dimensions
7
Operation
9
Indoor Unit Display
10
Remote Controller
12
Mode Button
12
Reset Button
12
Remote Controller Display
13
Sleep Mode
15
Emergency Operation
16
Dehumidification Mode
17
Wiring Diagram
19
Refrigerant Cycle
22
Control Block Diagram
23
Electric Circuit Diagram
24
Trouble Shooting
26
Neither Indoor Unit nor Outdoor Unit Runs
29
Pcb Circuit Diagram
34
Remote Controller Lcd Panel Test
45
Key Components of Electronic Circuit
50
Disassembly Instructions
53
Indoor Unit
53
Outdoor Unit
54
Exploded Diagram (Indoor Unit)
55
Exploded Diagram (Outdoor Unit)
57
Control Box Assembly
60
