21

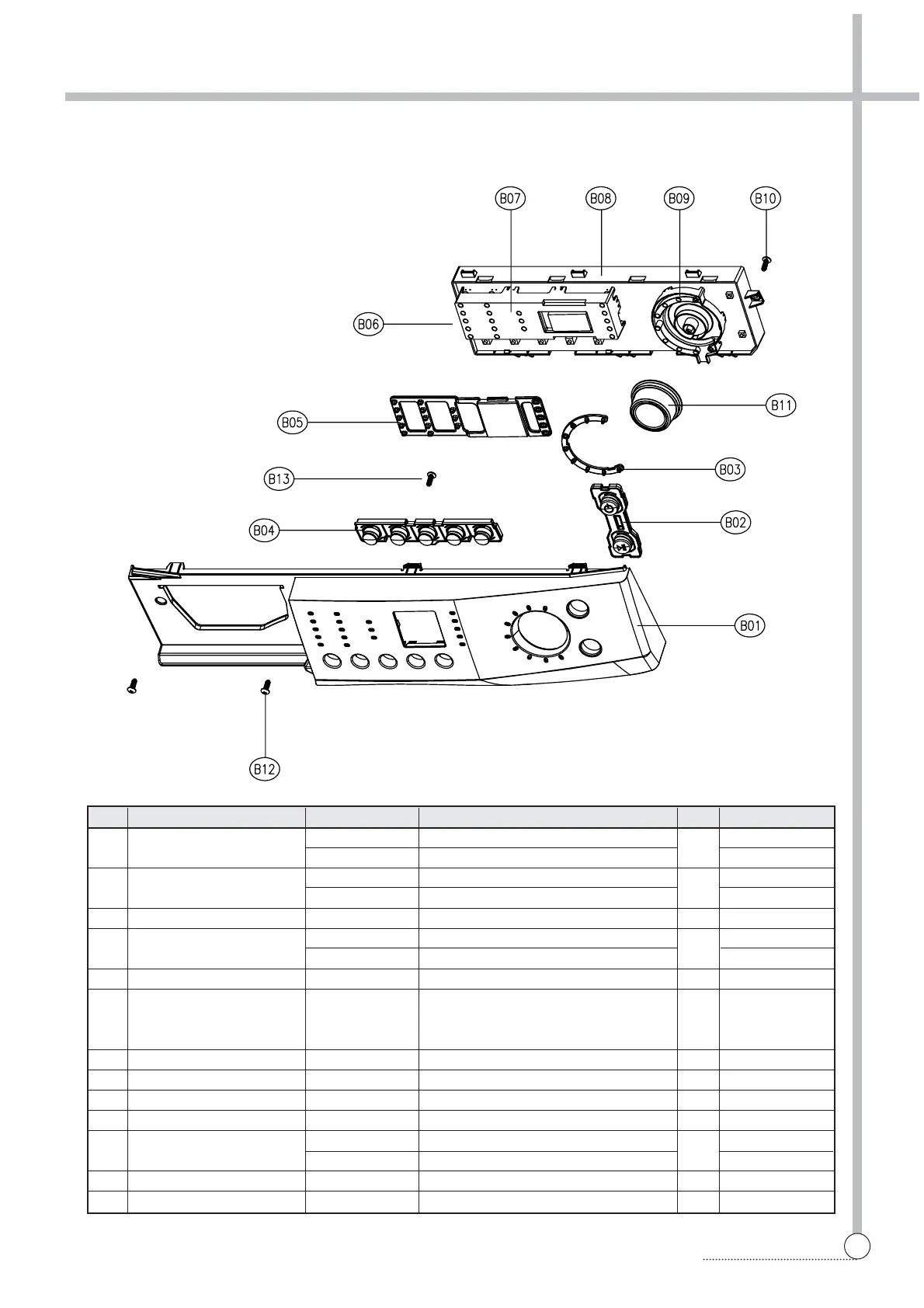

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-F1X1X SERIES)
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
B01 PANEL F
3614282702 HIPS
1
3614282710 SILVER SPRAY DWD-F1X13
B02 BUTTON POWER
3616603600 ABS
1
DWD-F1X11/DWD-F1X14
3616603620 ABS+AL COATING
B03 WINDOW DIAL 3615503100 ABS 1
B04 BUTTON SELECT
3616603500 ABS
1
DWD-F1X11/DWD-F1X14
3616603520 ABS+AL COATING
B05 WINDOW LED 3615503000 ABS 1
1
Refer to
B06 PCB AS PRPSSWB--- DWD-F1XXX SERIES
Detailed Part Code
of PCB AS
B07 HOLDER LED 3613049600 ABS 1
B08 CASE PCB 3611140200 HIPS 1
B09 HOLDER DIAL 3613049700 ABS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL AS
3613405000 ABS, AL COATING
1
3613405010 ABS+SILVER SPRAY, UV COATING DWD-F1X13
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2
To Next Page
