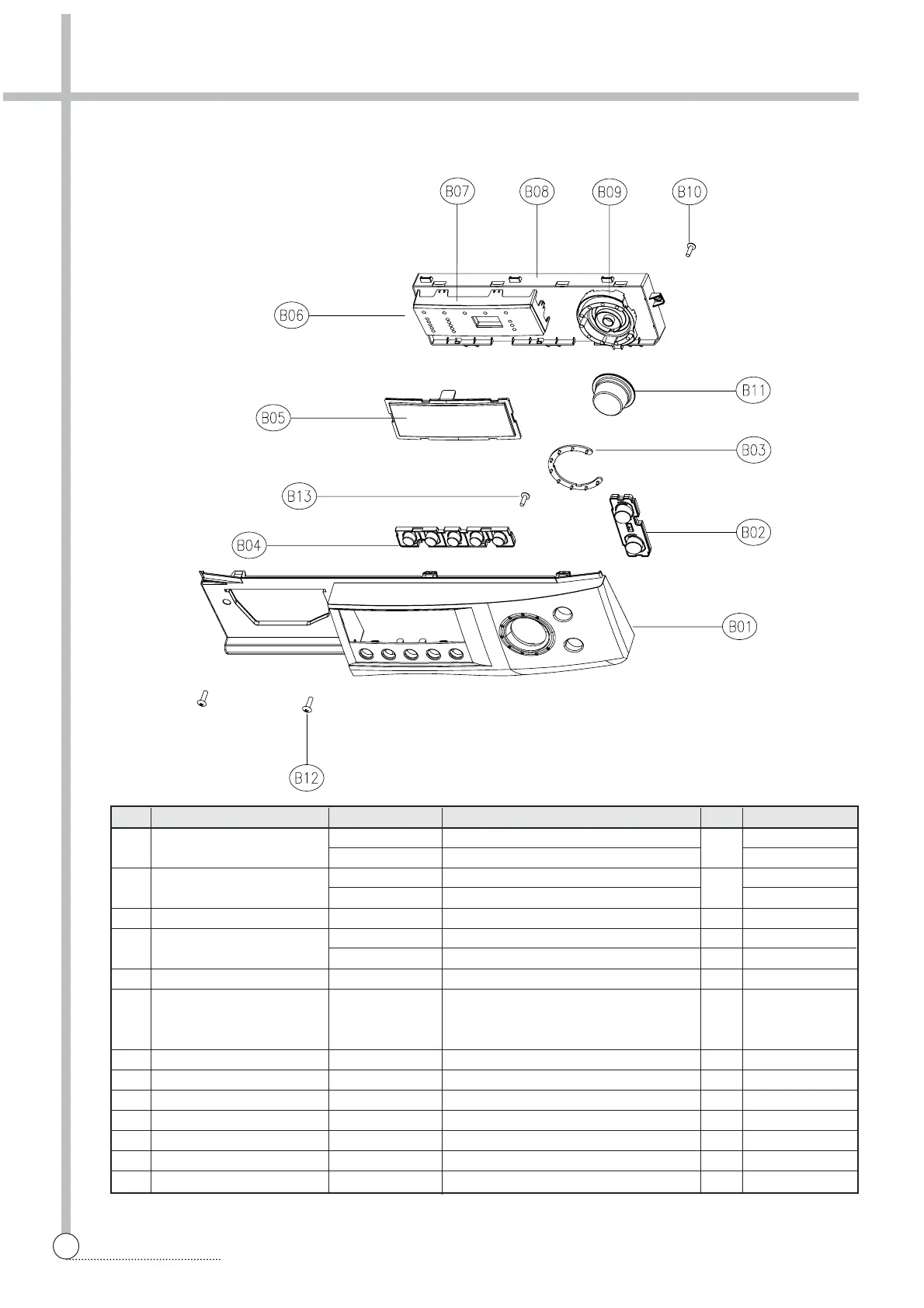

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-F1X2X SERIES)
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
B01 PANEL F
3614284502 HIPS
1
3614284510 SILVER SPRAY DWD-F1X23
B02 BUTTON POWER
3616604200 ABS
1
DWD-F1X21
3616604210 ABS+AL COATING
B03 WINDOW DIAL 3615503400 ABS 1
B04 BUTTON SELECT
3616604100 ABS 1 DWD-F1X21
3616604110 ABS+AL COATING 1
B05 WINDOW LED 3615503300 ABS 1
1
Refer to
B06 PCB AS PRPSSWB--- DWD-F1XXX SERIES
Detailed Part Code
of PCB AS
B07 HOLDER LED 3613050500 ABS 1
B08 CASE PCB 3611140200 HIPS 1
B09 HOLDER DIAL 3613050600 ABS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL 3613405110 ABS+SPRAY 1
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2
To Next Page
