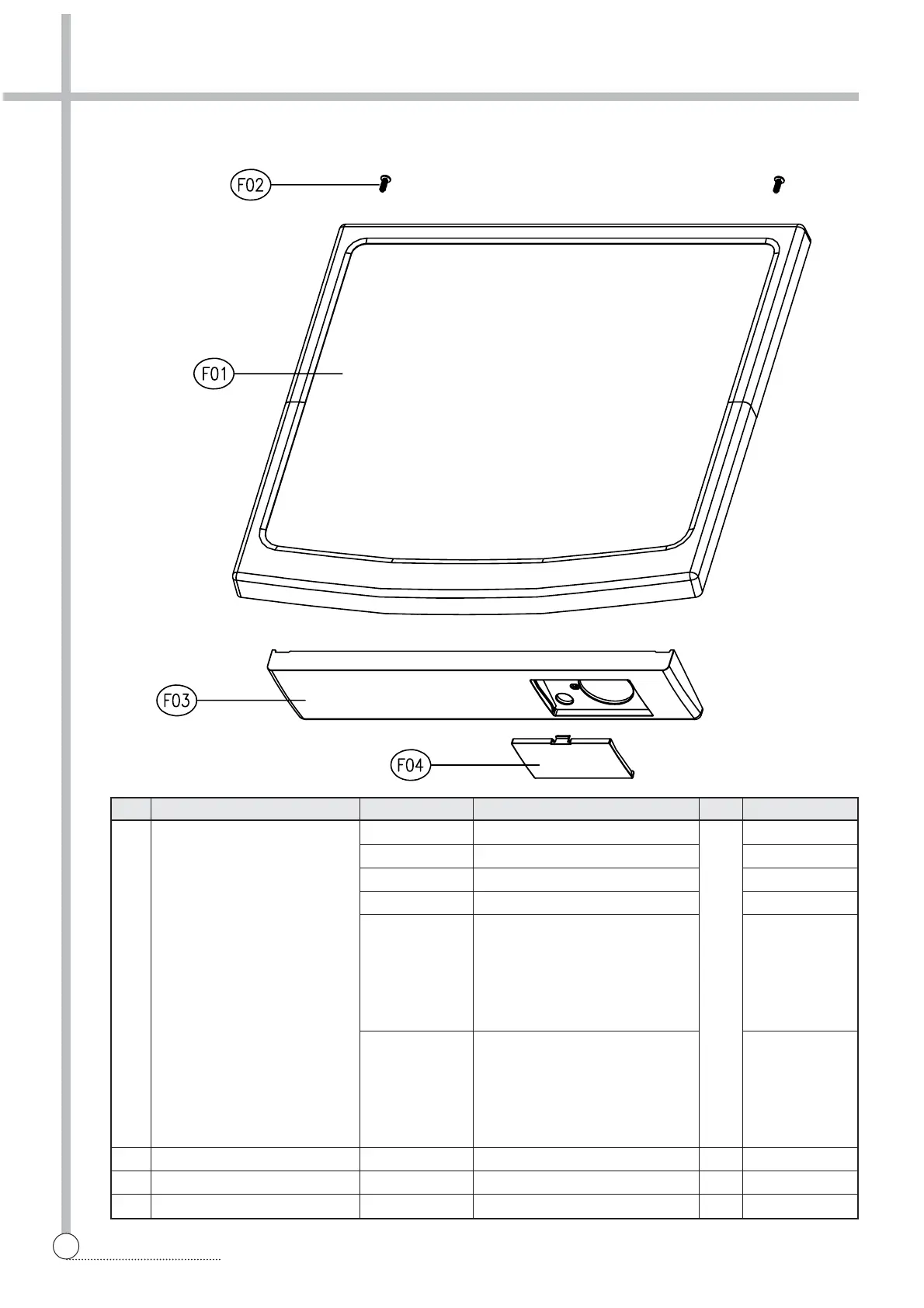

EXPLODE VIEW AND PARTS LIST
■ PLATE T AS + PANEL LOWER AS
3614532900 DWD-800W(HIPS, MFC, WH) DWD-F1X11(2)
3614532910 ABS+UV SPRAY, MFC, SILVER DWD-F1X13
3614532920 DWD-F1X2X(HIPS, MFC, WH) DWD-F1X21(2)
3614532930 ABS+UV SPRAY, MFC, SILVER DWD-F1X23
3614533300 FX1X31~2, 41~2(HIPS, MFC, WH) DWD-F1X31(2)
DWD-F1X41(2)
F01 PLATE TOP AS
DWD-F1X51(2)
DWD-F1X61(2)
DWD-F1X71(2)
3614533310
F3~F4'S, SPRAY(ABS, MFC, SILVER)
DWD-F1X33
DWD-F1X43
DWD-F1X53
DWD-F1X63
DWD-F1X73
F02 SCREW TAPPING 7122401411 T2S TRS 4x14 MFZN 2
F03 PANEL LOWER 3614282801 HIPS 1
F04 COVER PUMP FILTER 3611425801 HIPS 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
1
To Next Page
