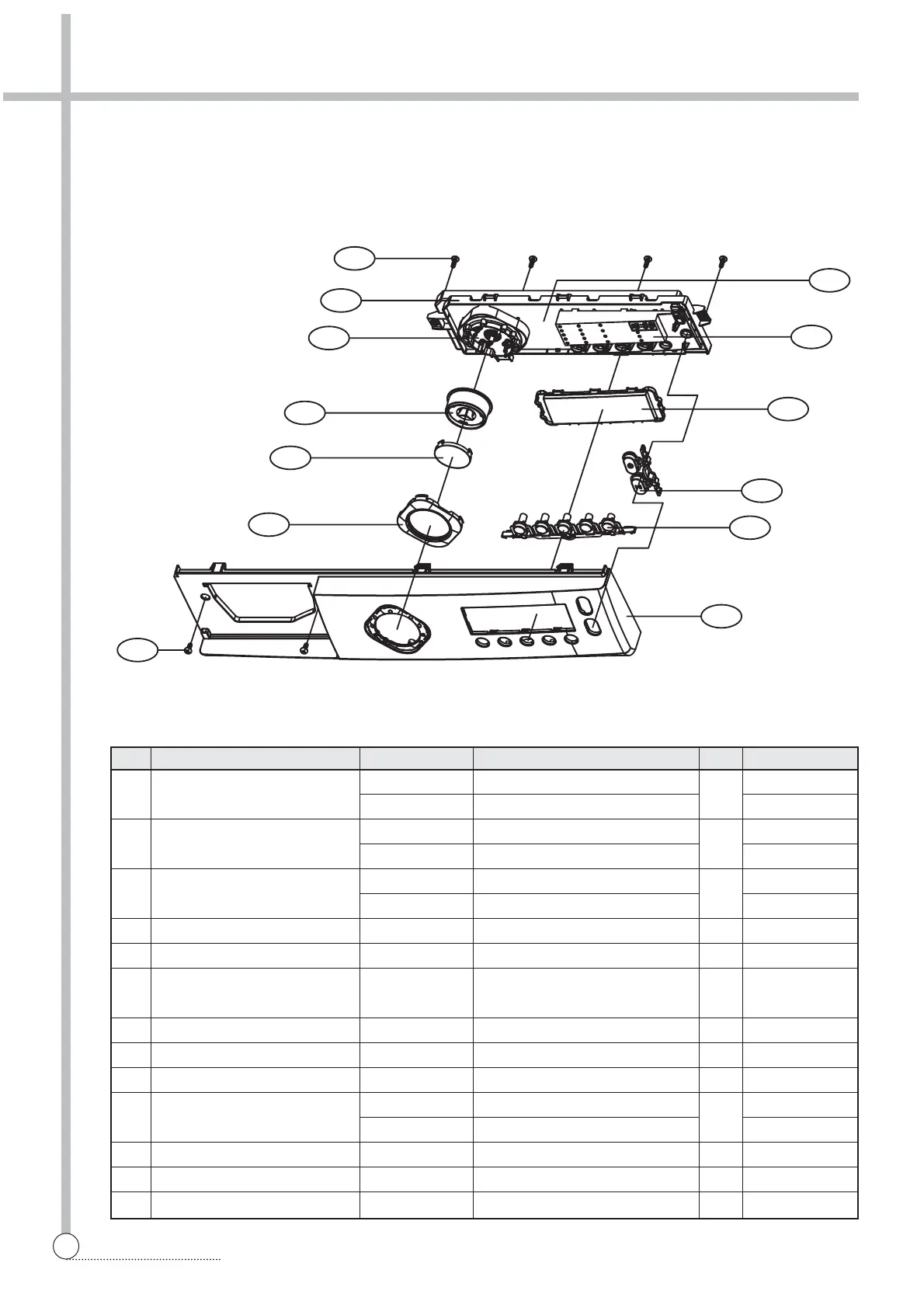

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-F1X6X SERIES)
B01
B02
B03
B04
B06
B05
B07
B08
B09
B10
B11
B12
B13
B01 PANEL F
36142T3000 D-F'SERIES 6TH , ABS DWD-F1X61(2)
36142T3010 D-F'SERIES 6TH , ABS+ SPRAY DWD-F1X63
B02 BUTTON SELECT
3616645800 D-F'SERIES 6TH , ABS DWD-F1X61(2)
3616645810 D-F'SERIES 6TH , ABS+ SPRAY DWD-F1X63
B03 BUTTON POWER
3616645900 D-F'SERIES 6TH , ABS DWD-F1X61(2)
3616645910 D-F'SERIES 6TH , ABS+ SPRAY DWD-F1X63
B04 WINDOW DISPLAY 3615510300 D-F'SERIES 6TH , TR ABS 1 DWD-F1X6X
B05 HOLDER LED 3613061900 D-F'SERIES 6TH , HIPS 1 DWD-F1X6X
B06 PCB AS PRPSSWB---- D-F1X6X SERIES 1
B07 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B08 CASE PCB 3611149700 D-F'SERIES 6TH / 7TH, HIPS 1 DWD-F1X6(7)X
B09 HOLDER LED COURSE 3613061800 D-F'SERIES 6TH , HIPS 1 DWD-F1X6X
B10 BUTTON DIAL
3616645700 D-F'SERIES 6TH , ABS DWD-F1X61(2)
3616645710 D-F'SERIES 6TH , ABS+ SPRAY DWD-F1X63
B11 DECO BUTTON DIAL 3611698100 D-F'SERIES 6TH , ABS 1 DWD-F1X6X
B12 WINDOW COURSE 3615510400 D-F'SERIES 6TH , TR ABS 1 DWD-F1X6X
B13 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
Refer to Detailed Part
Code of PCB AS
1
1
1
1
