EXPLANATION
This is the device to dispense the softener automatically by centrifugal force.
This is installed inside the auto-balancer.
FUNCTIONAL PRINCIPLE
1 Softener stays in room (A) when poured into softener inlet.
2 Softener moves from (A) to (B) by centrifugal force during intermittent spin process.
3 Softener flows from (B) to (C) during rinse process next to intermittent spin.
4 Softener moves from (C) to (D) by centrigfugal force during second intermittent spin.
After spin process is finished, the softener is added into the tub through softener outlet.

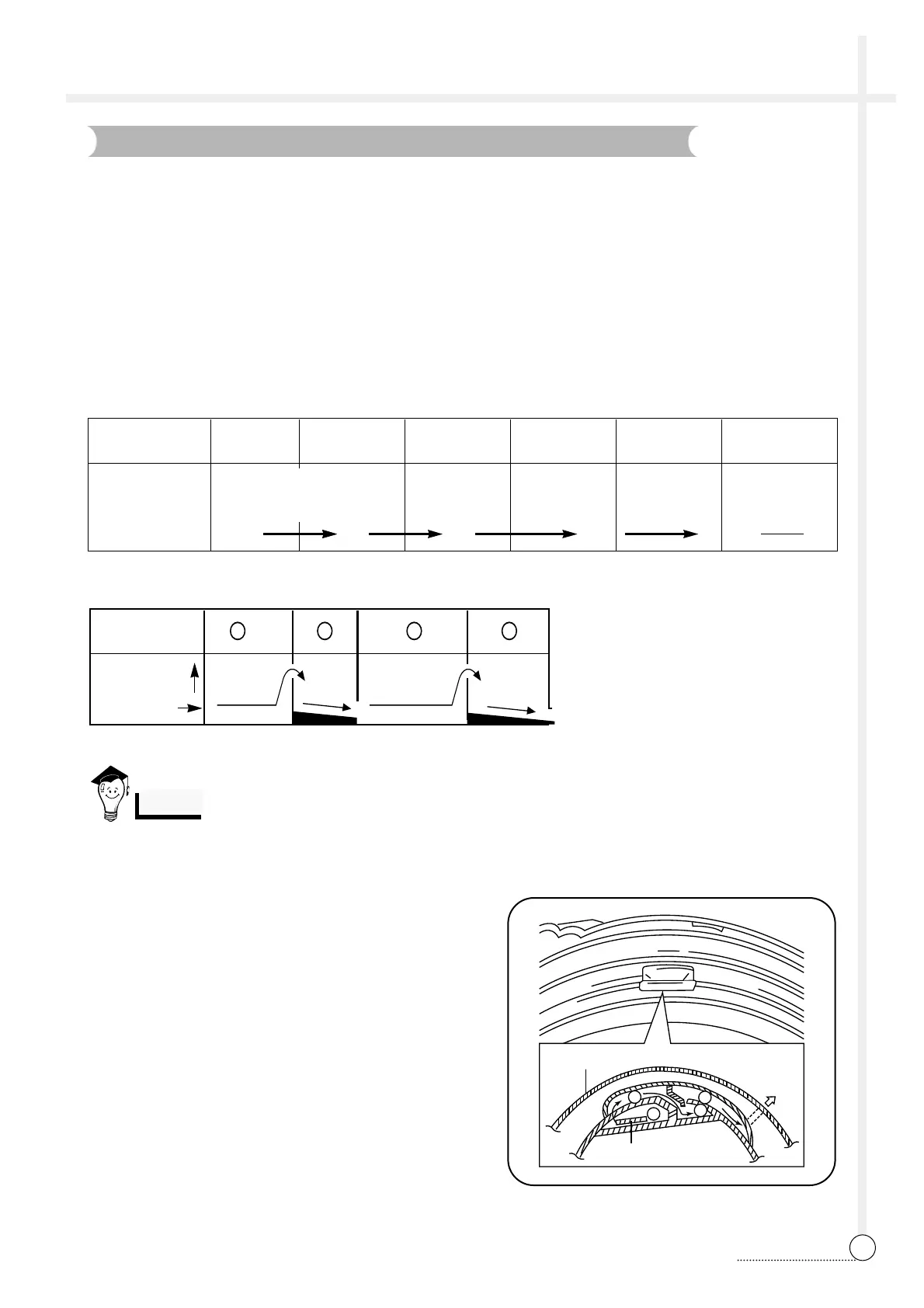

FLOW OF THE SOFTENER
FLOW OF THE SOFTENER INSIDE OF THE BALANCER
HOW TO CHECK MOVEMENT
Pour a reasonable amount of “MILK” into softener dis-
penser and operate the washer with no load. In final
rinse cycle, make sure that the milk is added into the
tub through softener outlet.
A
B
C
D
Wash Intermittent Hold Intermittent Rinse Spin
Spin Spin
Normal Centrifugal Flow in Centrifugal Flow in
force force
Program (A) (B) (C) (D)
A
B
C D
Room inside
the balancer
Centrifugal force
Flowing by weight
Balancer
Softener
outlet
Softener inlet
Softener Dispenser
Softener moves into the next room when r.p.m of the tub is more than 100 r.p.m.
