EXPLANATION
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small
sized clothes.
STRUCTURE
Pulsator shaft
One way clutch
bearing
Brake lever
Spin shaft
Gear unit as
Clutch spring
Clutch boss
Gear pulley
Planetary gear
Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1490 r.p.m
(50Hz)
Gear Unit as
Directly
Tub
720 r.p.m
Pulsator
138 r.p.m
Gear Pulley
720 r.p.m
Bobbin & coil
Magnet
Armature
Bellows
Air out hole
Protector A
Protector B
Air in hole
Air
Air
Trans core

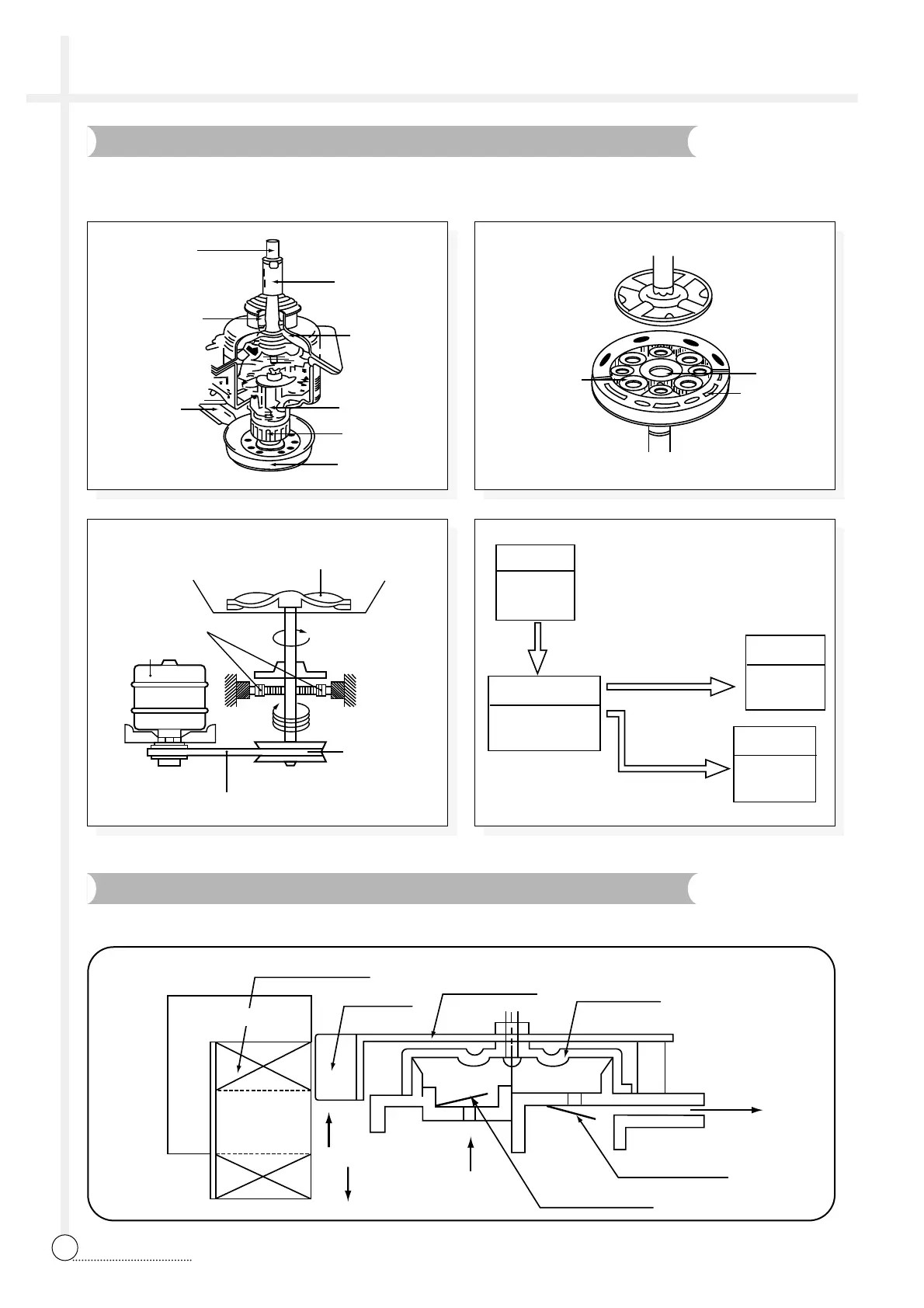

Gear Mechanism Ass’y
Principle of Bubble Generator
