7. TECHNICAL POINT
Replacing Process of Synchronous Motor Wire
– replace the New G/M
– replace the Link valve drain
from Plate valve connector
– insert the Link v/v drain into the G/M Lever with pulling the Lever toward
Syncronous Motor
– to assemble the wire of Syncronous Motor to the inside of Link valve
drain with pulling the Lever toward Syncronous Motor

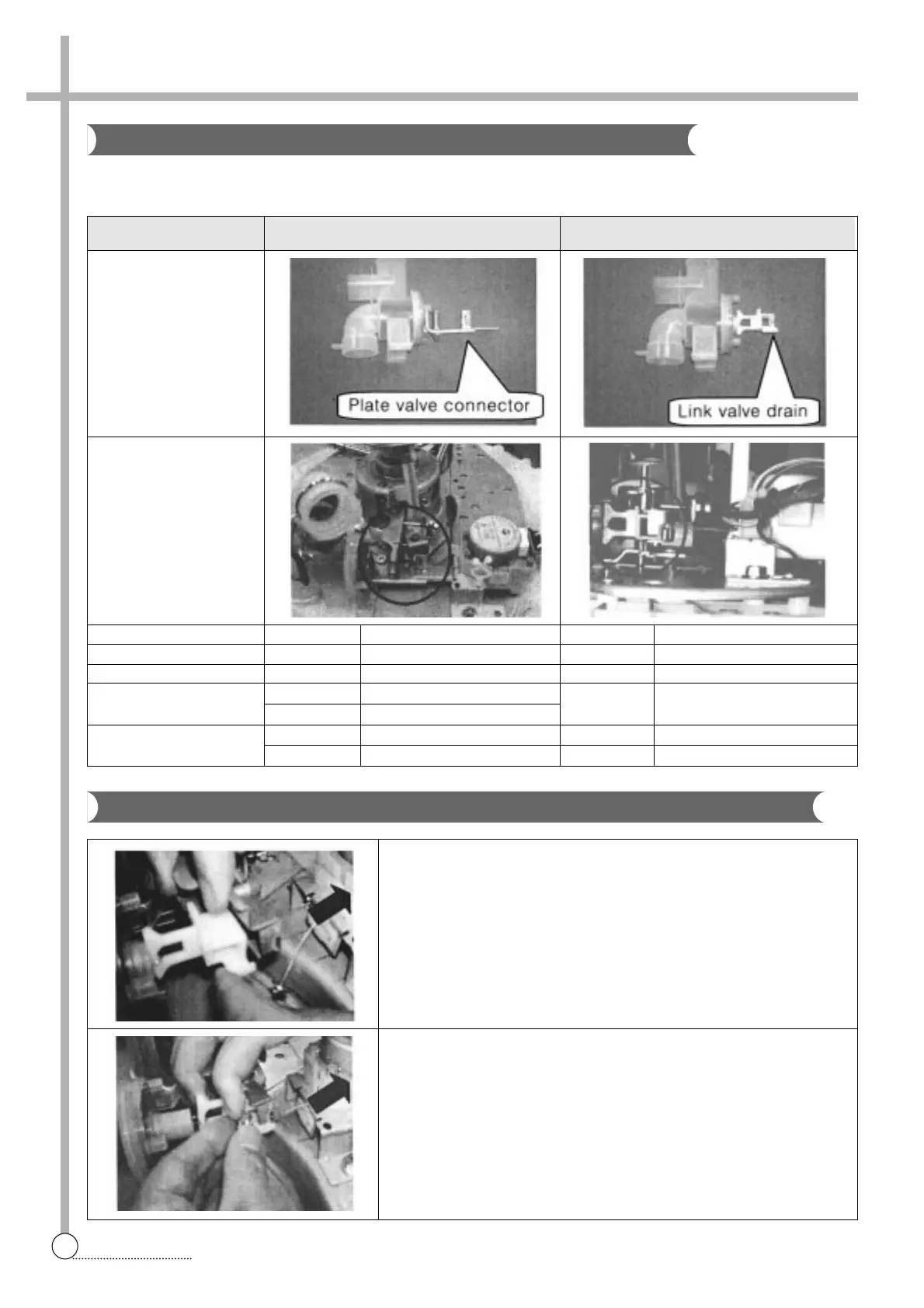

Valve Drain Assy and Gear Mechanism
We changed the shape of the Lever because of preventing water leakage and noise of G/M.
Please refer to the changing date as following table
OLD type NEW type
Valve Drain Assy
G/M with Tub O
Part name Part Cord Specification Part Cord Specification
Plate valve conn’r 4509k78070 SECC –
Link valve drain – 3617801900 POM
Gear Mechanism
367305900 GM-8094-KS0X0
3617307610 GM-1300-KS6P0
367305800 GM-1094, KELVAR
Syncronous Motor
4505D45100 L=56.5/18mm(110-130V/60Hz) 4505E45120 L=64.5/23mm(110-130V/60Hz)
3966010200 L=56.5/18mm(220-240V/50Hz) 3966010220 L=64.5/23mm(220-240V/50Hz)
