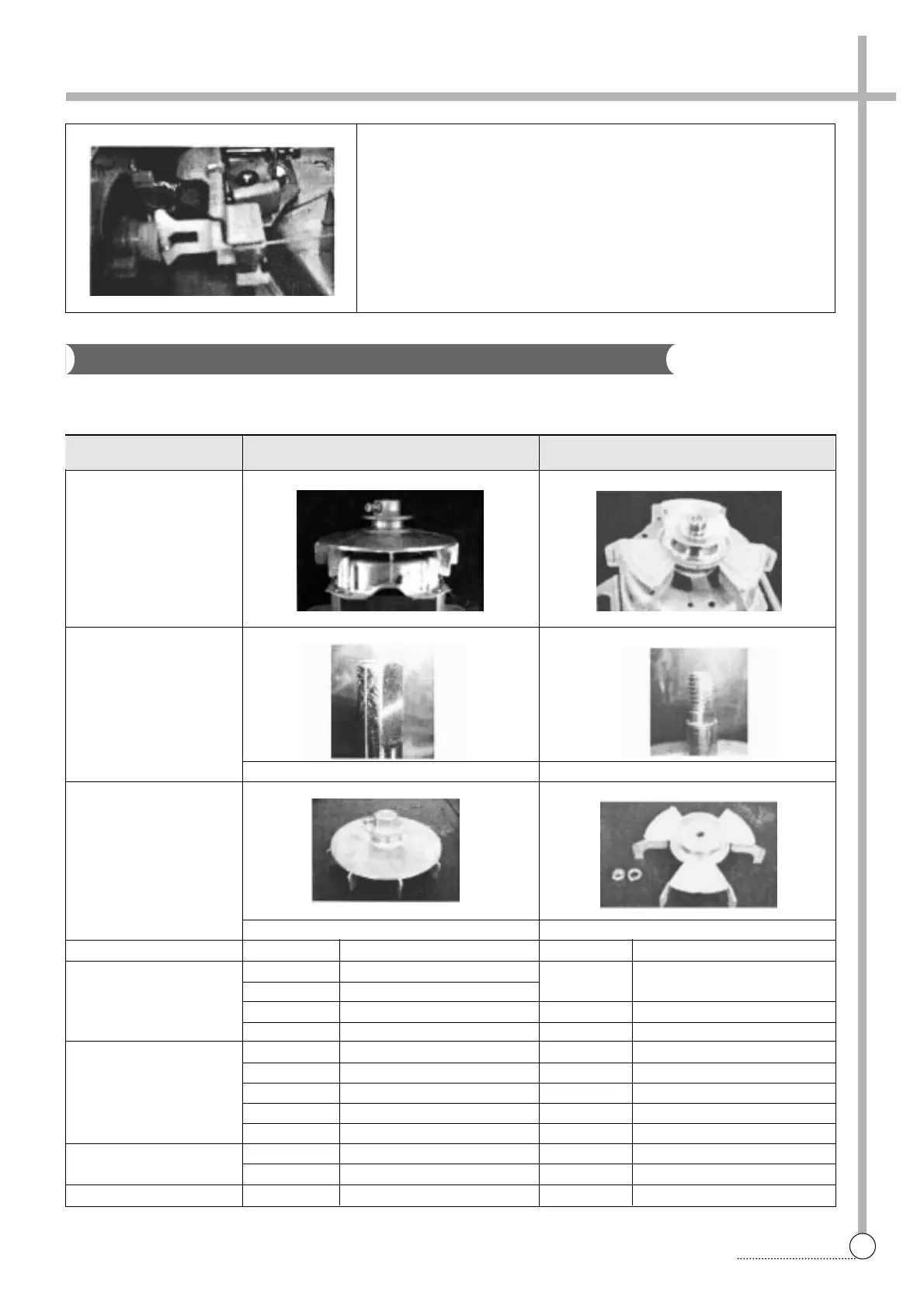

OLD type NEW type
Appearance
Shaft design
Pulley design
Part name Part Cord Specification Part Cord Specification
3964220620 110V/60Hz 3966221101 110-127V/60Hz W1D46CA012
3964720110 127V/60Hz
3964320100 220V/60Hz 3964321111 220V/60Hz W1D46UA012
3964010160 220-240V/50Hz 3964311311
220-240V/50Hz W1D46VA012-S
Motor condenser 3964220420 110V/60Hz 3964221211 110V/60Hz W1D50CA012-S
(DWF-1094) 3964820520 127V/60Hz 3964821311 127V/60Hz W1D50JA012-S
3610019720 220V/60Hz 3964321211 220V/60Hz W1D50UA012
3964310530 220V/50Hz 3964510411 220V/50Hz W1D50VA012
3964610320 240V/50Hz 3964610321 240V/50Hz F33-2C-S
Pulley motor assy 3618401400
M-TYPE DS=10 DP=48.5 60Hz
3618432000
M-TYPE DS=10 DP=48.5 60Hz
3614801420
M-TYPE DS=10 DP=53.0 50Hz
3618431900
M-TYPE DS=10 DP=53.0 50Hz
Motor cushion down 3611502800 POM, H=18mm 3611502700 POM, H=8.0mm
OLD type NEW type
Appearance
Shaft design
Pulley design
Part name Part Cord Specification Part Cord Specification
Motor condenser 3964220620 110V/60Hz 3966221101 110-127V/60Hz W1D46CA012
(DWF-8094, 7094) 3964720110 127V/60Hz
3964320160 220V/60Hz 3964321111 220V/60Hz W1D46UA012
3964010160 220-240V/50Hz 3964311311
220-240V/50Hz W1D46VA012-S
Motor condenser 3964220420 110V/60Hz 3964221211 110V/60Hz W1D50CA012-S
(DWF-1094) 3964820520 127V/60Hz 3964821311 127V/60Hz W1D50JA012-S
3610019720 220V/60Hz 3964321211 220V/60Hz W1D50UA012
3964310530 220V/50Hz 3964510411 220V/50Hz W1D50VA012
3964610320 240V/50Hz 3964610321 240V/50Hz F33-2C-S
Pulley motor assy 3618401400
M-TYPE DS=10 DP=48.5 60Hz
3618432000
M-TYPE DS=10 DP=48.5 60Hz
3614801420
M-TYPE DS=10 DP=53.0 50Hz
3618431900
M-TYPE DS=10 DP=53.0 50Hz
Motor cushion down 3611502800 POM, H=18mm 3611502700 POM, H=8.0mm
23
DIRECTIONS
– check the assemble condition by moving Lever 2~3 times
Pulley Motor Assy
In case of replacing the Motor from OLD type to NEW type, Daewoo will supply Motor condenser, Pulley motor assy,
Motor Cushion (down) together.
Al – diecasting, bolt and nut
D cut
M – 8 tapping
press type, washer and net
