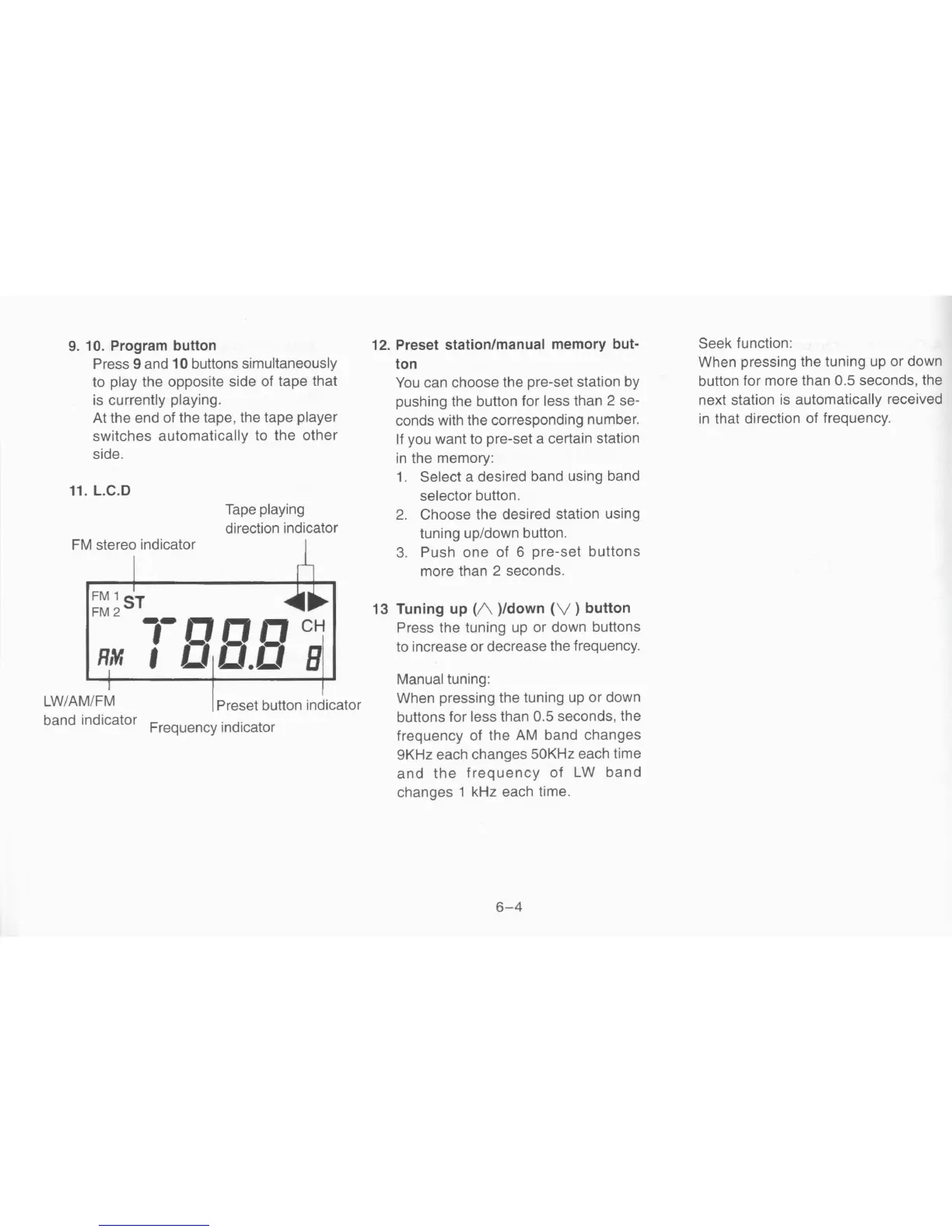

9. 10. Program button
Press 9 and 10 buttons simultaneously
to play the opposite side of tape that
is currently playing.
At the end of the tape, the tape player
switches automatically to the other
side.
11. L.C.D
Tape playing
direction indicator
FM stereo indicator
12. Preset station/manual memory but-
ton
You can choose the pre-set station by
pushing the button for less than 2 se-
conds with the corresponding number.
If you want to pre-set a certain station
in the memory:
1. Select a desired band using band
selector button.
2. Choose the desired station using
tuning up/down button.
3. Push one of 6 pre-set buttons
more than 2 seconds.
Seek function:
When pressing the tuning up or down
button for more than 0.5 seconds, the
next station is automatically received
in that direction of frequency.
Manual tuning:
When pressing the tuning up or down
buttons for less than 0.5 seconds, the
frequency of the AM band changes
9KHz each changes 50KHz each time
and the frequency of LW band
changes 1 kHz each time.
13 Tuning up (/\ )/down
(V)
button
Press the tuning up or down buttons
to increase or decrease the frequency.
Preset button indicator
Frequency indicator
FM 1 ST
FM2
'-000
CH
RM ,
l
'Il
'.l'
8
LW/AM/FM
band indicator
6-4
