1 MW RELAY Black & White, Black & White Control M/W
2 HALOGEN HEATER RELAY White & Red, Black Control halogen heater(Side heater)
3 TOP HEATER RELAY White & Black, Black Control heater top
4 CONVECTION RELAY Blue, Blue Control heater back
5 SLOW ACTING RELAY Blue, Blue
6 D.O.M CONNECTOR Blue, Green(Middle), Blue
7 SUB RELAY
8 THERMISTER CONNECTOR White, White Temperature sensor

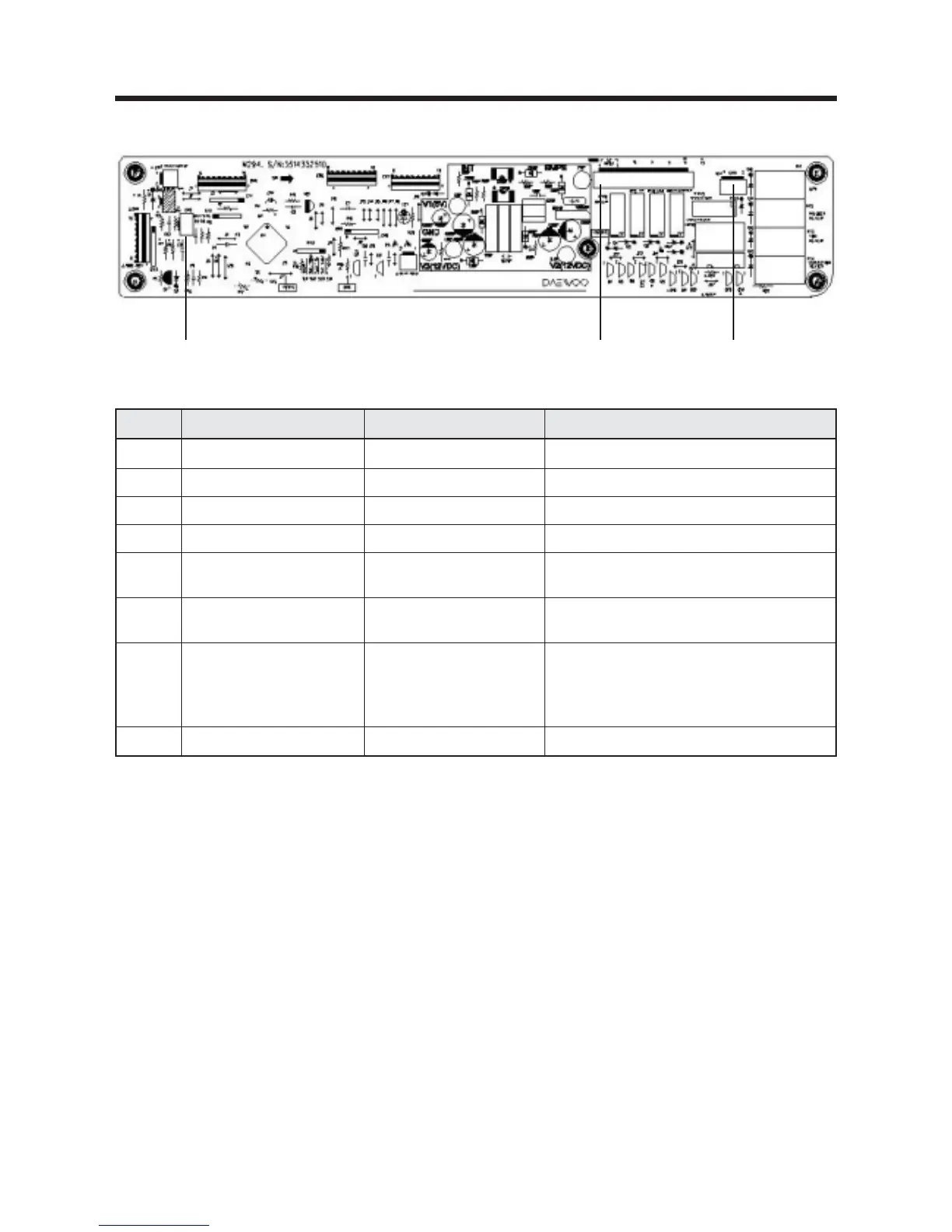

LOCATION
PART NAME WIRING COLOR FUNCTION
11
8. WIRING PROCEDURE
MAIN PCB
NO. 1 : Red
NO. 3 : White
NO. 5 : Black
NO. 7 : Blue
NO. 9 : Grey
Prevent the current of oven from rising rapidly in
Microwave Mode
D.O.M(DOOR OPEN MONITOR) helps the
MICOM checking the Interlocking system of DOOR
NO. 1 & 3 : Supply power to PCB
NO. 5 : Convection motor
NO. 7 : Blower-Motor
NO. 9 : Lamp
8 7 6
5
1
2
3
4
